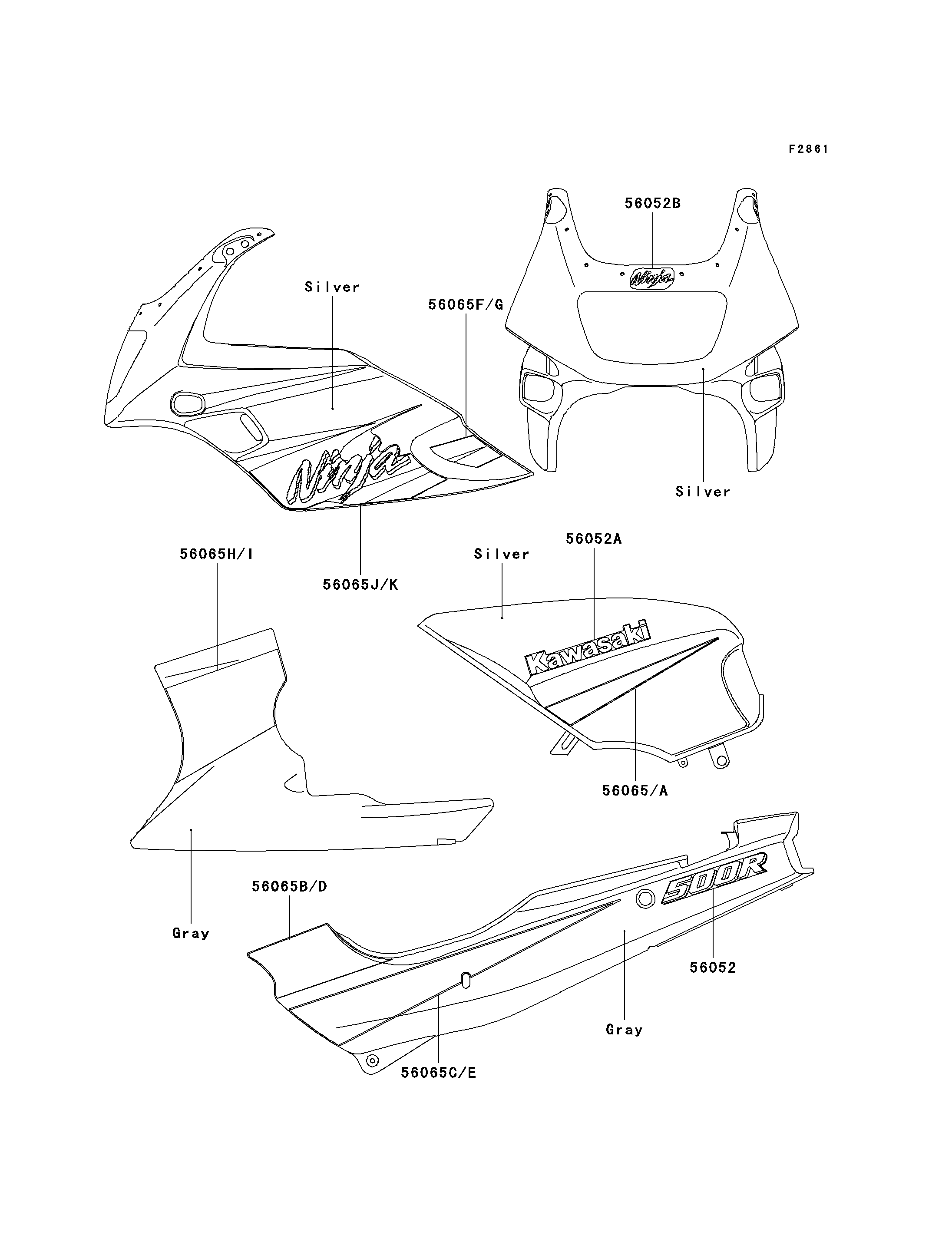

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,500R 56052 56052-1519 2 CN
MARK,FUEL TANK,KAWASAKI 56052A 56052-1601 2 CN
MARK,UPP COWLING,NINJA 56052B 56052-1683 1 CN
PATTERN,FUEL TANK,LH 56065 56065-1587 1 CN
PATTERN,FUEL TANK,RH 56065A 56065-1588 1 CN
PATTERN,SIDE COVER,UPP,LH 56065B 56065-1589 1 CN
PATTERN,SIDE COVER,LWR,LH 56065C 56065-1590 1 CN
PATTERN,SIDE COVER,UPP,RH 56065D 56065-1591 1 CN
PATTERN,SIDE COVER,LWR,RH 56065E 56065-1592 1 CN
PATTERN,UPP COWLING,RR,LH 56065F 56065-1594 1 CN
PATTERN,UPP COWLING,RR,RH 56065G 56065-1596 1 CN
PATTERN,LWR COWLING,LH 56065H 56065-1597 1 CN
PATTERN,LWR COWLING,RH 56065I 56065-1598 1 CN
PATTERN,UPP COWLING,LH 56065J 56065-1773 1 CN
PATTERN,UPP COWLING,RH 56065K 56065-1774 1 CN
