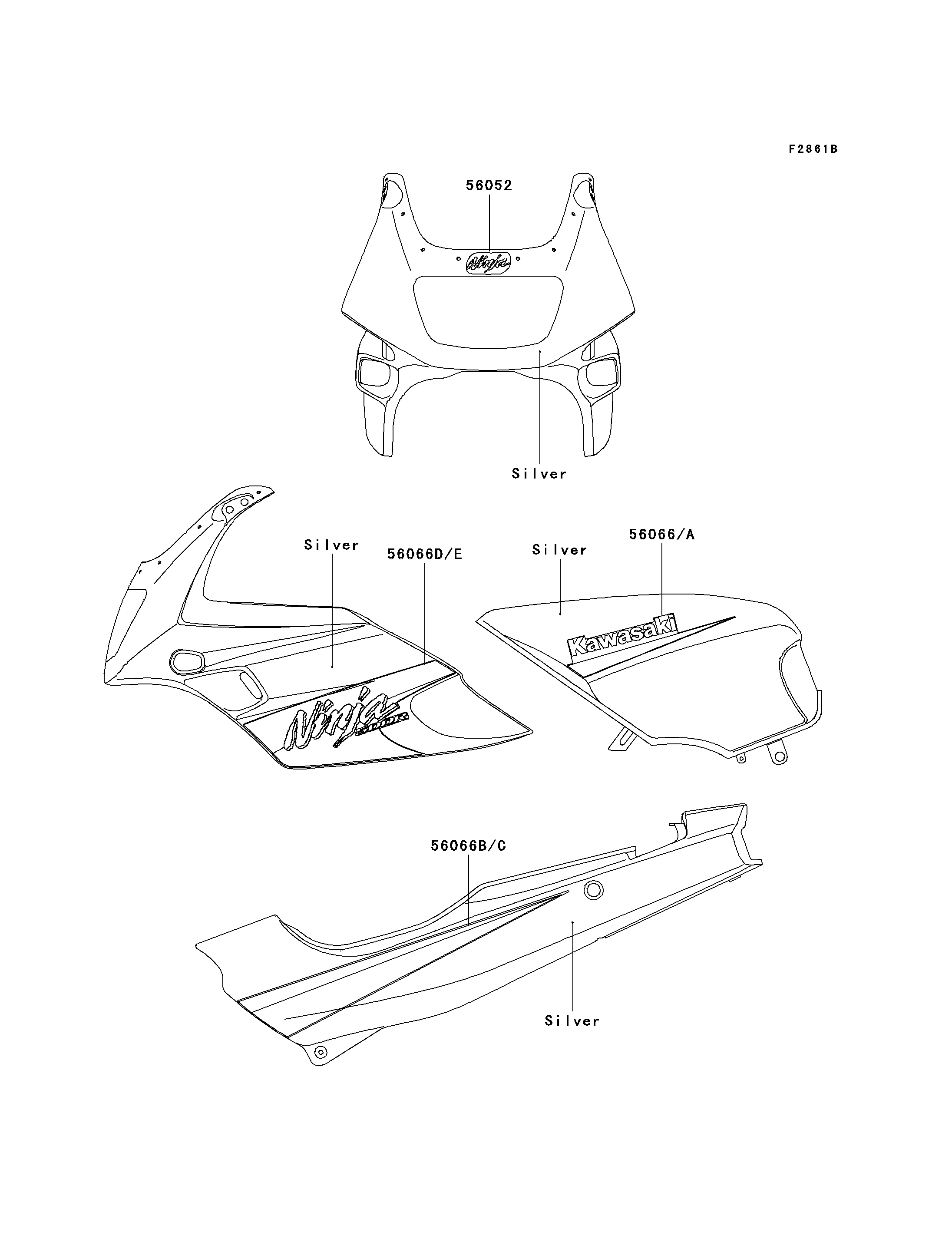

56052
56066
56066A
56066B
56066C
56066D
56066E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,UPP COWLING,NINJA 56052 56052-0137 1
PATTERN,FUEL TANK,LH 56066 56066-0401 1
PATTERN,FUEL TANK,RH 56066A 56066-0402 1
PATTERN,SIDE COVER,LH 56066B 56066-0403 1
PATTERN,SIDE COVER,RH 56066C 56066-0404 1
PATTERN,UPP COWLING,LH 56066D 56066-0405 1
PATTERN,UPP COWLING,RH 56066E 56066-0406 1
