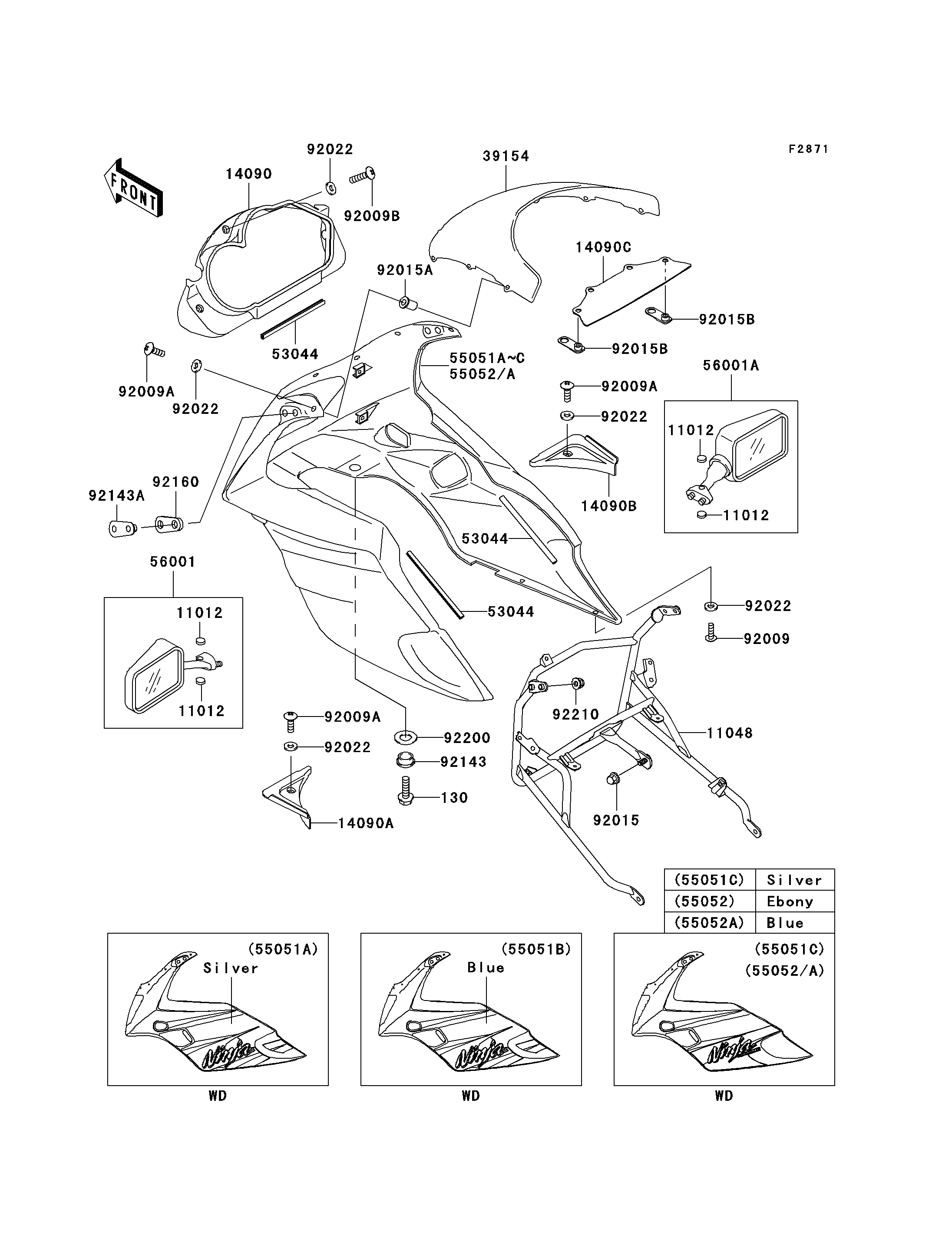

2003 Ninja® 500R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012
11012
11012
11012
11048
11048
14090
14090
14090A
14090A
14090B
14090B
14090C
14090C
39154
39154
53044
53044
53044
53044
53044
53044
55051B
55051B
56001
56001
56001A
56001A
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
130
130
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92143
92143
92143A
92143A
92160
92160
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,MIRROR 11012 11012-1818 4
BRACKET,UPP COWLING 11048 11048-1368 1
COVER,INNER COWLING,CNT 14090 14090-1397 1
COVER,INNER COWLING,LH 14090A 14090-1398 1
COVER,INNER COWLING,RH 14090B 14090-1399 1
COVER,WINDSHIELD 14090C 14090-1488 1
WINDSHIELD 39154 39154-1125 1
TRIM,L=157 53044 53044-1276 3
COWLING-ASSY,UPP,M.N.BLUE 55051B 55051-5290-C6 1
MIRROR-ASSY,LH,EBONY 56001 56001-1376-6C 1
MIRROR-ASSY,RH,EBONY 56001A 56001-1377-6C 1
SCREW,TAPPING,5X15 92009 92009-1479 4
SCREW,5X16,BLACK 92009A 92009-1654 8
SCREW,5X22 92009B 92009-1660 3
NUT,CAP,8MM,BLACK 92015 92015-1174 1
NUT,WELL,5MM 92015A 92015-1757 6
NUT 92015B 92015-1949 2
BOLT-FLANGED 130 130J0620 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 15
COLLAR,L=6.6 92143 92143-1088 2
COLLAR 92143A 92143-1699 2
DAMPER,MIRROR 92160 92160-1089 2
WASHER,10.3X20X1 92200 92200-1013 2
NUT,CAP,6MM 92210 92210-0003 4
COWLING-ASSY,UPP,G.SILVER 55051A 55051-5206-F2 1 CN
