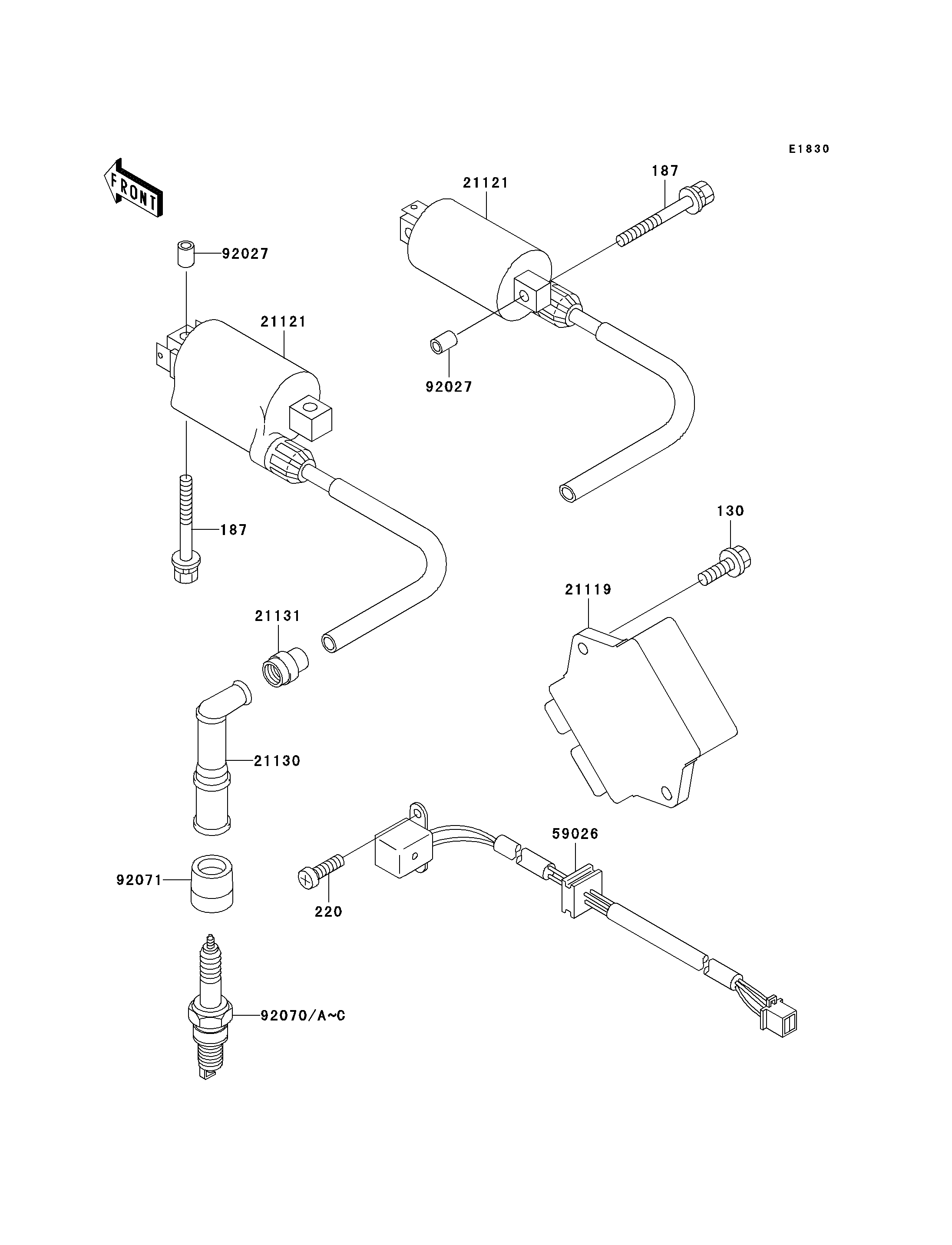

130
187
187
220
21119
21121
21121
21130
21131
59026
92027
92027
92070
92070A
92070B
92070C
92071
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130H0616 2
BOLT-UPSET-WSP 187 187G0625 4
SCREW-PAN-CROS 220 220B0510 2
IGNITER 21119 21119-1408 1
COIL-IGNITION 21121 21121-1153 2
CAP-SPARK PLUG 21130 21130-1068 2
GROMMET,HIGH TENSION 21131 21131-005 2
COIL-PULSING 59026 59026-1126 1
COLLAR,6.8X10X6 92027 92027-103 4
PLUG-SPARK,X24ESR-U(ND) 92070 2 (OPTION)
PLUG-SPARK,X27ESR-U(ND) 92070A 2 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,DR9EA(NGK) 92070B 92070-1189 2
PLUG-SPARK,DR8EA(NGK) 92070C 92070-1199 2 (OPTION)
GROMMET,PLUG CAP 92071 92071-1146 2
