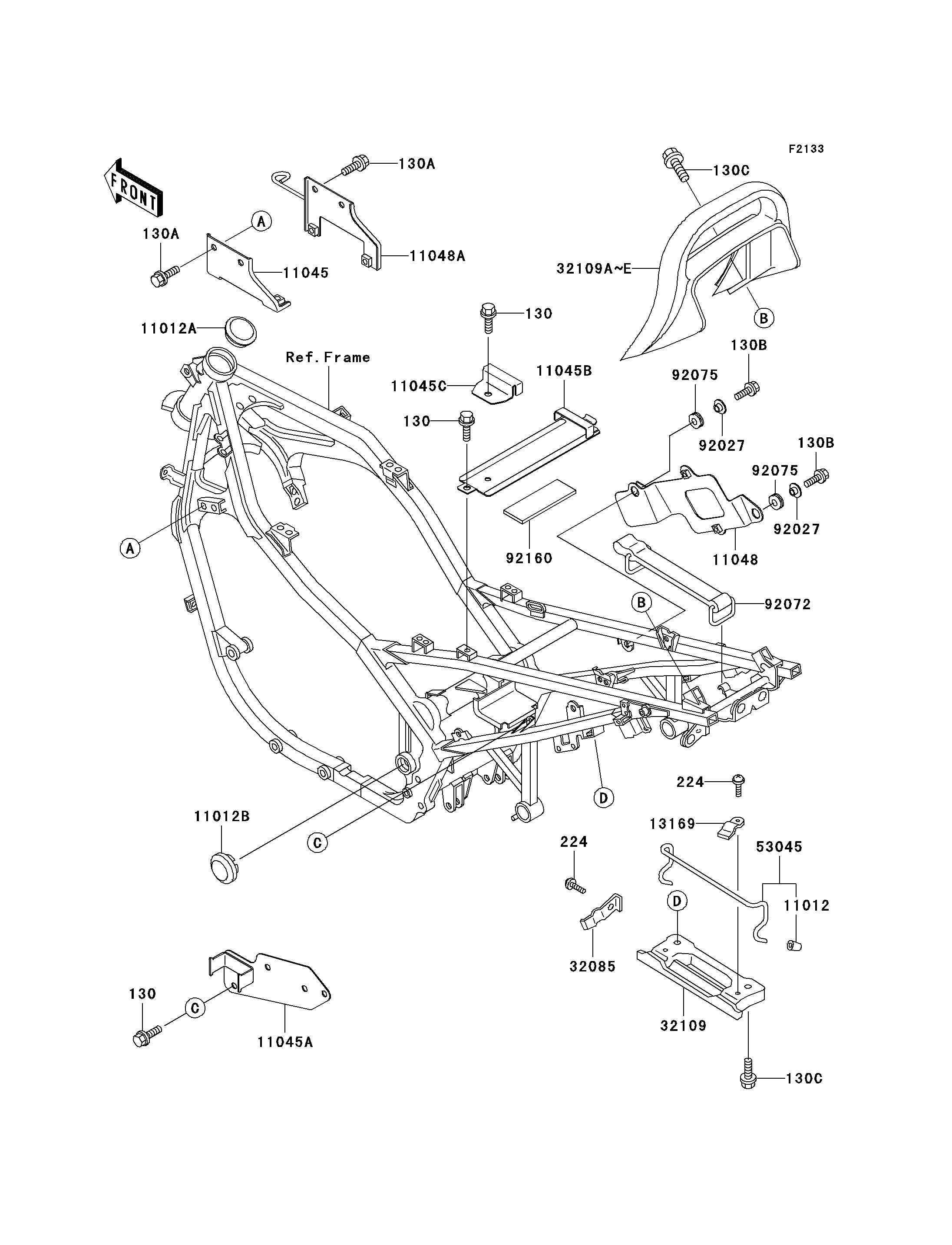

2001 Ninja® 500R - Electro Bracket

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
130A
130B
130B
130C
130C
224
224
11012
11012A
11012B
11045
11045A
11045B
11045C
11048
11048A
13169
32085
32109
32109B
53045
92027
92027
92072
92075
92075
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130J0608 4
BOLT-FLANGED,6X14,BLACK 130A 130J0614 4
BOLT-FLANGED,6X16,BLACK 130B 130J0616 2
BOLT-FLANGED,8X16,BLACK 130C 130J0816 6
SCREW-PAN-WP-CROS 224 224C0508 6
CAP,BUNGEE CORD HOOK 11012 11012-1589 4
CAP,SWING ARM 11012A 11012-1688 1
CAP,CROSS PIPE,BLACK 11012B 11012-1717-10 2
BRACKET,IGNITION COIL,LH 11045 11045-1419 1
BRACKET,REGULATOR 11045A 11045-1421 1
BRACKET,BATTERY BAND 11045B 11045-1423 1
BRACKET,JUNCTION BOX 11045C 11045-1424 1
BRACKET,IGNITER 11048 11048-1343 1
BRACKET,IGNITION COIL,RH 11048A 11048-1665 1
PLATE,GRIP 13169 13169-1760 4
STOPPER,HOOK 32085 32085-1187 2
GRIP-FRAME 32109 32109-1108 2
GRIP-FRAME,TAIL,M.GRAYSTONE 32109B 32109-1245-C4 1
HOOK-ASSY,BUNGEE CORD 53045 53045-1062 2
COLLAR 92027 92027-1166 2
BAND 92072 92072-1085 1
DAMPER 92075 92075-051 2
DAMPER,BATTERY 92160 92160-1094 1
GRIP-FRAME,TAIL,C.L.BLUE 32109C 32109-1245-E1 1 CN
