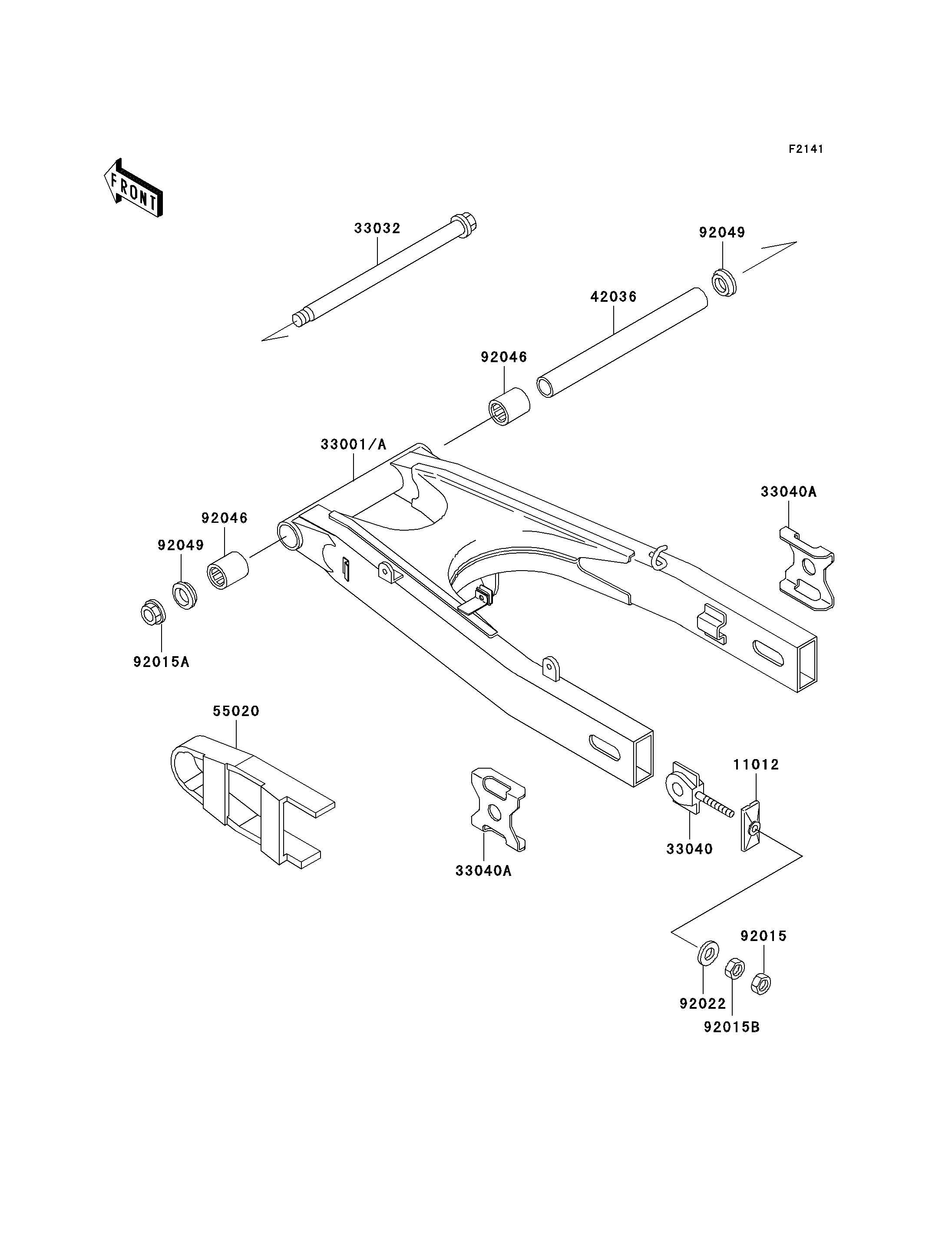

11012
33001
33032
33040
33040A
33040A
42036
55020
92015
92015A
92015B
92022
92046
92046
92049
92049
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHAIN ADJUSTER,BLACK 11012 11012-1871-10 2
ARM-COMP-SWING,BLACK 33001 33001-1444-10 1
SHAFT-SWING ARM 33032 33032-1109 1
ADJUSTER-CHAIN,INNER 33040 33040-1116 2
ADJUSTER-CHAIN,OUTER,BLACK 33040A 33040-1137-10 2
SLEEVE,14.1X22X220 42036 42036-1212 1
GUARD,CHAIN 55020 55020-1500 1
NUT,8MM 92015 92015-1364 2
NUT,14MM 92015A 92015-1407 1
NUT,8MM 92015B 92015-1658 2
WASHER,8.5X16X1.2 92022 92022-1582 2
BEARING-NEEDLE,F-2220 92046 92046-1162 2
SEAL-OIL,MHA22 28 5.7F 92049 92049-1254 2
