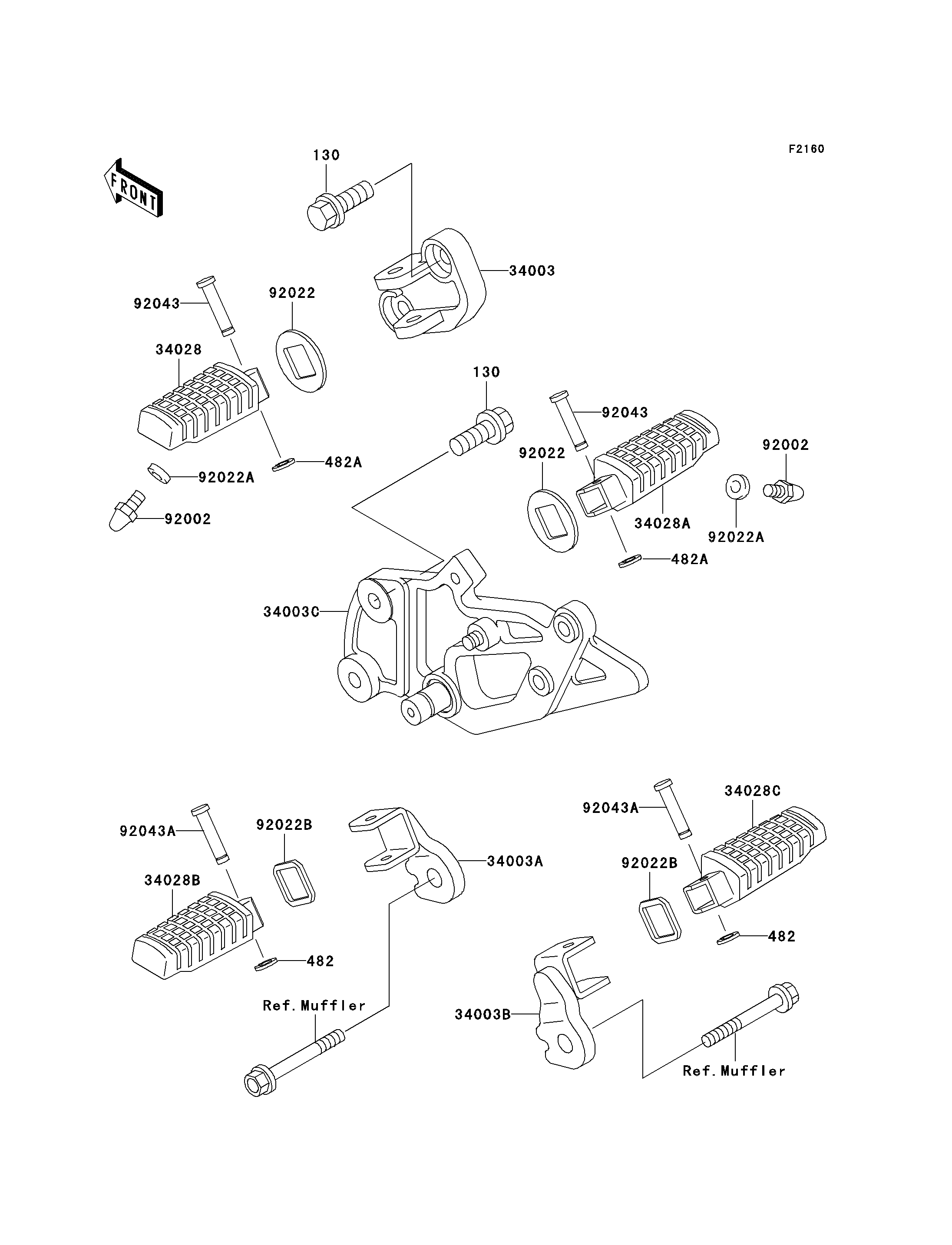

2001 Ninja® 500R - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
130
482
482
482A
482A
34003
34003A
34003B
34003C
34028
34028A
34028B
34028C
92002
92002
92022
92022
92022A
92022A
92022B
92022B
92043
92043
92043A
92043A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130J0820 4
CIRCLIP-TYPE-E,5MM 482 482L5000 2
CIRCLIP-TYPE-E 482A 482L7000 2
HOLDER-STEP,FR,LH 34003 34003-1319 1
HOLDER-STEP,RR,LH 34003A 34003-1321 1
HOLDER-STEP,RR,RH 34003B 34003-1322 1
HOLDER-STEP,FR,RH 34003C 34003-1394 1
STEP,FR,LH 34028 34028-1193 1
STEP,FR,RH 34028A 34028-1194 1
STEP,RR,LH 34028B 34028-1195 1
STEP,RR,RH 34028C 34028-1196 1
BOLT,BANK SENSOR 92002 92002-1995 2
WASHER,STEP FITTING 92022 92022-1314 2
WASHER,6.5X13X2.0 92022A 92022-1523 2
WASHER,STEP FITTING 92022B 92022-1797 2
PIN,8X40.5 92043 92043-1326 2
PIN,6X30 92043A 92043-1607 2
