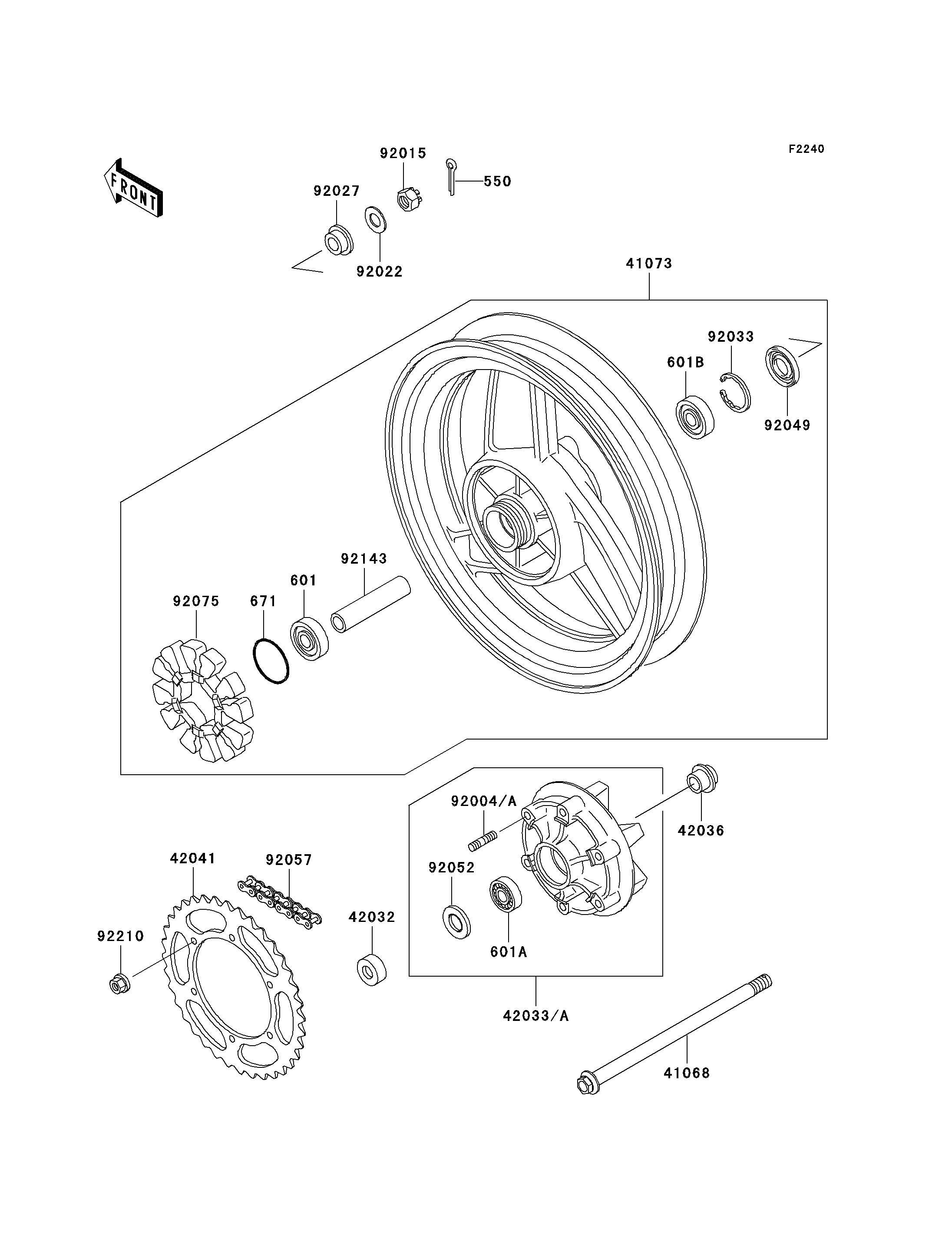

2001 Ninja® 500R - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
550
601
601A
601B
671
41068
41073
42032
42033A
42036
42041
92004A
92015
92022
92027
92033
92049
92052
92057
92075
92143
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,#6203UUC3 601 601B6203UU 1
BEARING-BALL,#6205G 601A 601B6205G 1
BEARING-BALL,#6303UUC3 601B 601B6303UU 1
O RING 671 671B2550 1
AXLE,RR 41068 41068-1223 1
WHEEL-ASSY,RR,G.GRAY 41073 41073-1474-GE 1
COLLAR,RR AXLE,L=13 42032 42032-063 1
COUPLING-ASSY,RR HUB,M.SILVER 42033A 42033-1210-7J 1
SLEEVE,RR HUB,L=30 42036 42036-1055 1
SPROCKET-HUB,41T 42041 42041-1354 1
STUD,10X19 92004A 92004-1275 6
NUT,CASTLE,16MM 92015 92015-1947 1
WASHER,17.5X34X2.0 92022 92022-1916 1
COLLAR,RR HUB 92027 92027-1785 1
RING-SNAP,47MM 92033 92033-1042 1
SEAL-OIL,BJN28475 92049 92049-1056 1
SEAL-OIL,TWC35527 92052 92052-006 1
CHAIN,DRIVE,EK520SX-OX104L 92057 92057-1296 1
DAMPER,RR HUB SHOCK 92075 92075-1436 1
COLLAR,RR HUB,L=111 92143 92143-1416 1
NUT,10MM 92210 92210-1258 6
