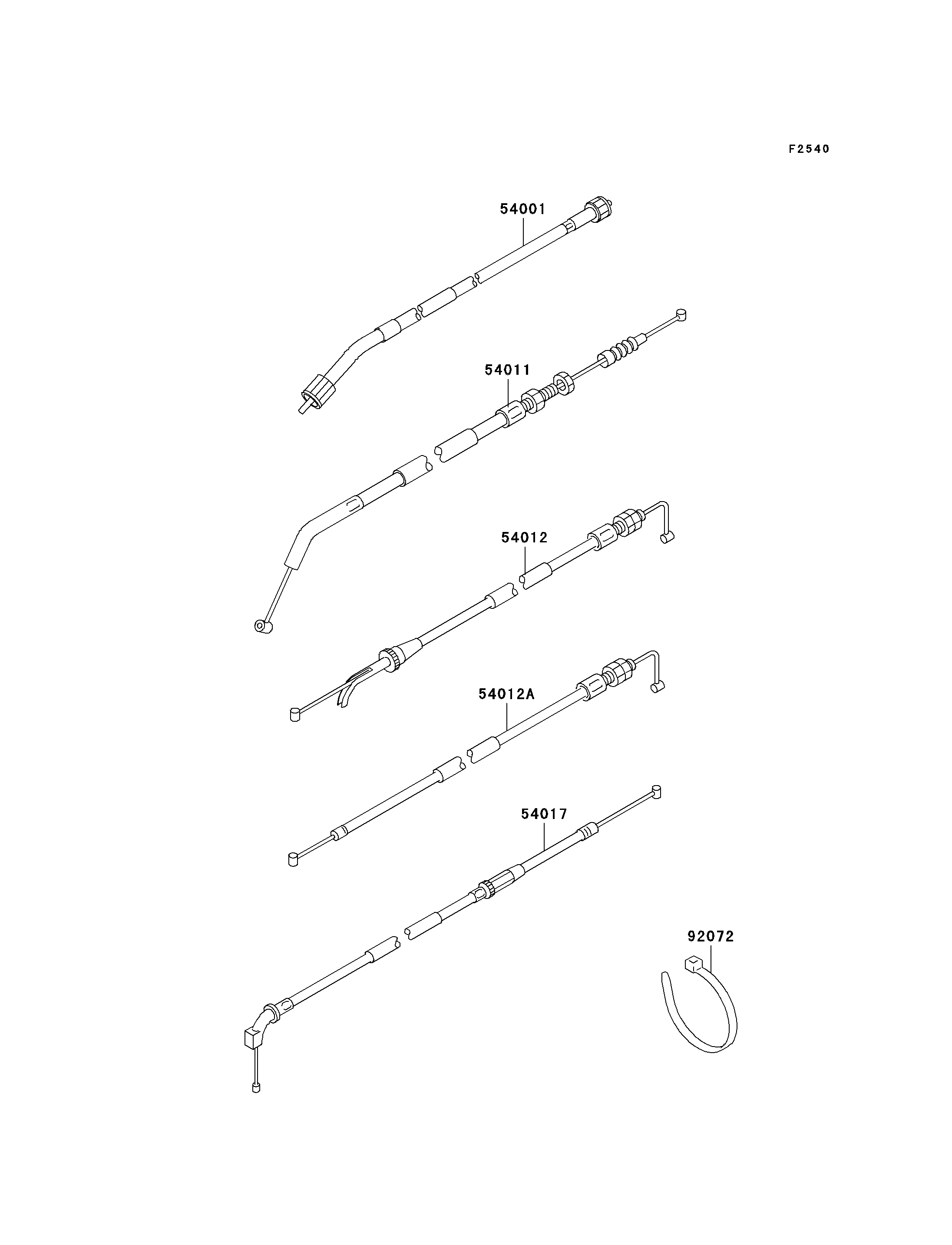

54001
54011
54012
54012A
54017
92072
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-SPEEDOMETER 54001 54001-1123 1
CABLE-CLUTCH 54011 54011-1340 1
CABLE-THROTTLE,OPENING 54012 54012-1334 1
CABLE-THROTTLE,CLOSING 54012A 54012-1492 1
CABLE-STARTER 54017 54017-1092 1
BAND,L=202 92072 92072-1195 1
