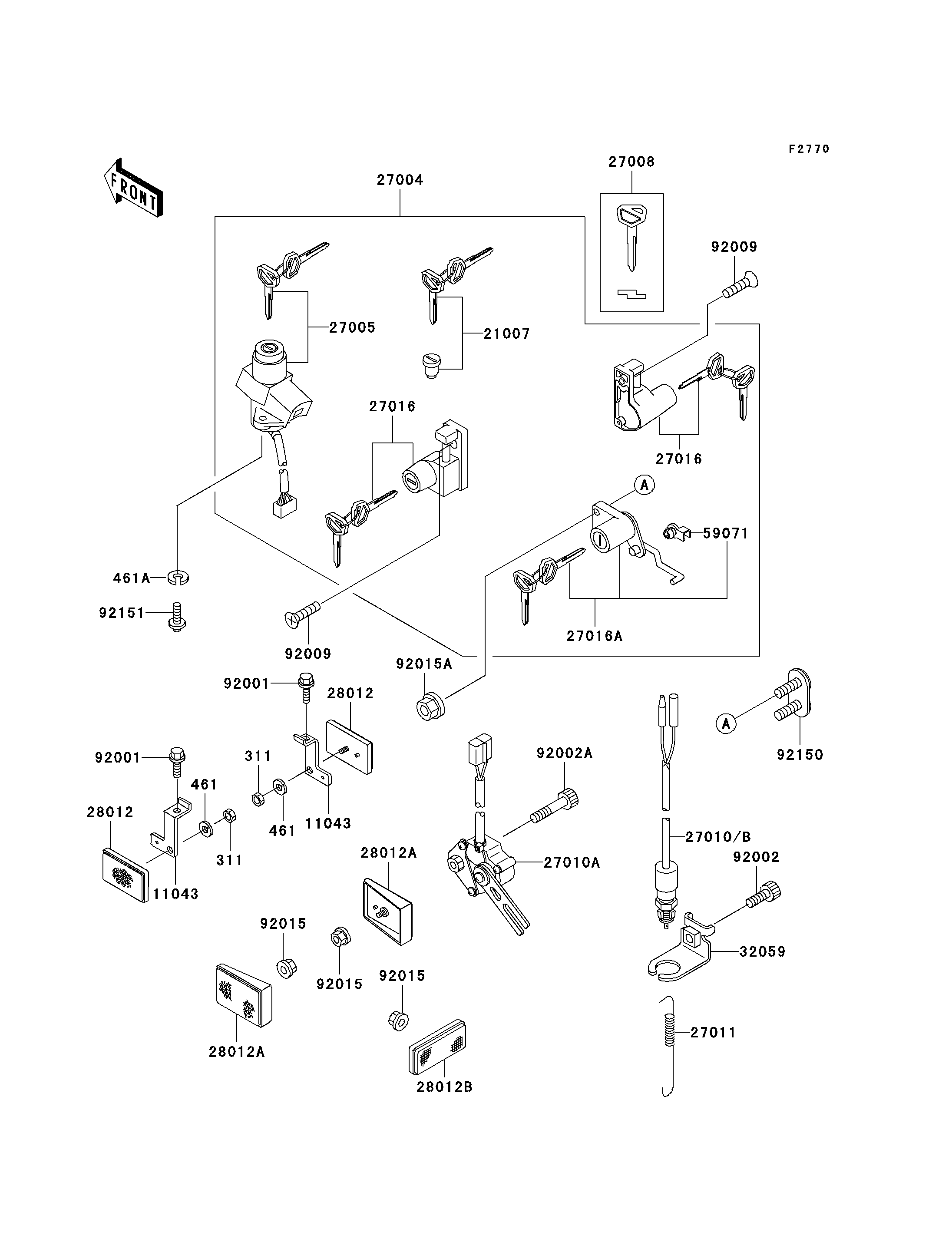

2001 Ninja® 500R - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
311
311
461
461
461A
11043
11043
21007
27004
27005
27008
27010
27010A
27011
27016
27016
27016A
28012
28012
28012A
28012A
28012B
32059
59071
92001
92001
92002
92002A
92009
92009
92015
92015
92015
92015A
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311B0500 2
WASHER-SPRING,5MM 461 461F0500 2
WASHER-SPRING 461A 461L0600 2
BRACKET,FR,REFLECTOR 11043 11043-1423 2
ROTOR,LOCK,TANK CAP 21007 21007-5037 1
SWITCH-ASSY 27004 27004-5464 1
SWITCH-ASSY-IGNITION 27005 27005-5101 1
KEY-LOCK,BLANK 27008 27008-1173 1 (OPTION)
SWITCH,BRAKE LAMP 27010 27010-1152 1
SWITCH,SIDE STAND 27010A 27010-1394 1
SPRING,BRAKE LAMP SWITCH 27011 27011-006 1
LOCK-ASSY,HELMET 27016 27016-5211 2
LOCK-ASSY,SEAT 27016A 27016-5217 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX,RR 28012A 28012-1056 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BRACKET-SWITCH,REAR BRAKE 32059 32059-1121 1
JOINT 59071 59071-1103 2
BOLT,6X14,BLACK 92001 92001-1847 2
BOLT,SOCKET,6X14 92002 92002-1175 1
BOLT,6X28 92002A 92002-1537 1
SCREW,5X18 92009 92009-1305 2
NUT,FLANGED,5MM 92015 92015-1259 3
NUT,FLANGED,5MM 92015A 92015-1328 2
BOLT,SEAT LOCK 92150 92150-1820 1
BOLT,TORX,6X16 92151 92151-1911 2
