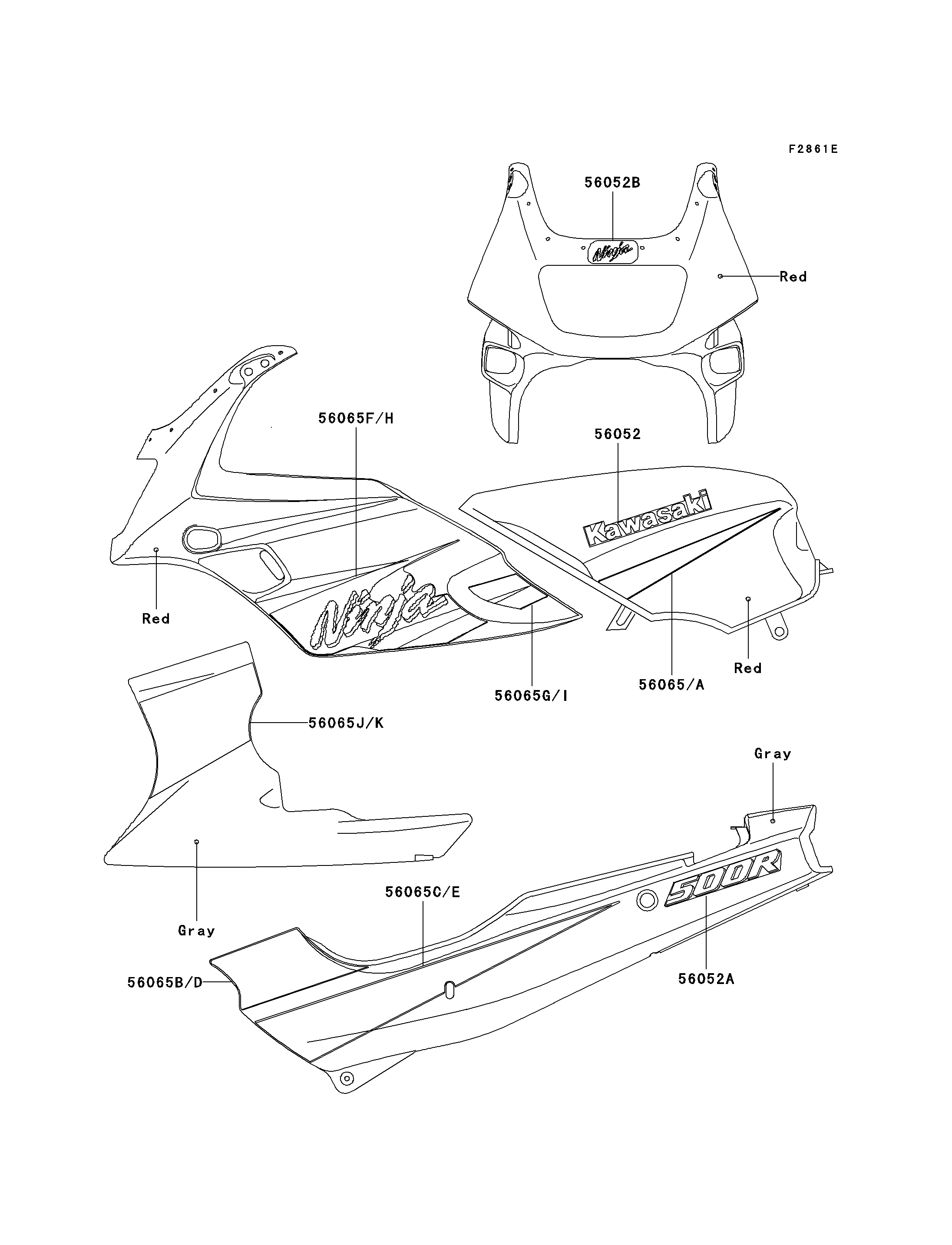

2002 Ninja® 500R - Decals(Red)(EX500-D9)
56052
56052A
56052B
56065
56065A
56065B
56065C
56065D
56065E
56065F
56065G
56065H
56065I
56065J
56065K
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,KAWASAKI | 56052 | 56052-1518 | 2 | ||
| MARK,SIDE COVER,500R | 56052A | 56052-1519 | 2 | ||
| MARK,UPP COWLING,NINJA | 56052B | 56052-1520 | 1 | ||
| PATTERN,FUEL TANK,LH | 56065 | 56065-1051 | 1 | ||
| PATTERN,FUEL TANK,RH | 56065A | 56065-1052 | 1 | ||
| PATTERN,SIDE COVER,UPP,LH | 56065B | 56065-1053 | 1 | ||
| PATTERN,SIDE COVER,LWR,LH | 56065C | 56065-1054 | 1 | ||
| PATTERN,SIDE COVER,UPP,RH | 56065D | 56065-1055 | 1 | ||
| PATTERN,SIDE COVER,LWR,RH | 56065E | 56065-1056 | 1 | ||
| PATTERN,UPP COWLING,FR,LH | 56065F | 56065-1057 | 1 | ||
| PATTERN,UPP COWLING,RR,LH | 56065G | 56065-1058 | 1 | ||
| PATTERN,UPP COWLING,FR,RH | 56065H | 56065-1059 | 1 | ||
| PATTERN,UPP COWLING,RR,RH | 56065I | 56065-1060 | 1 | ||
| PATTERN,LWR COWLING,LH | 56065J | 56065-1061 | 1 | ||
| PATTERN,LWR COWLING,RH | 56065K | 56065-1062 | 1 |
