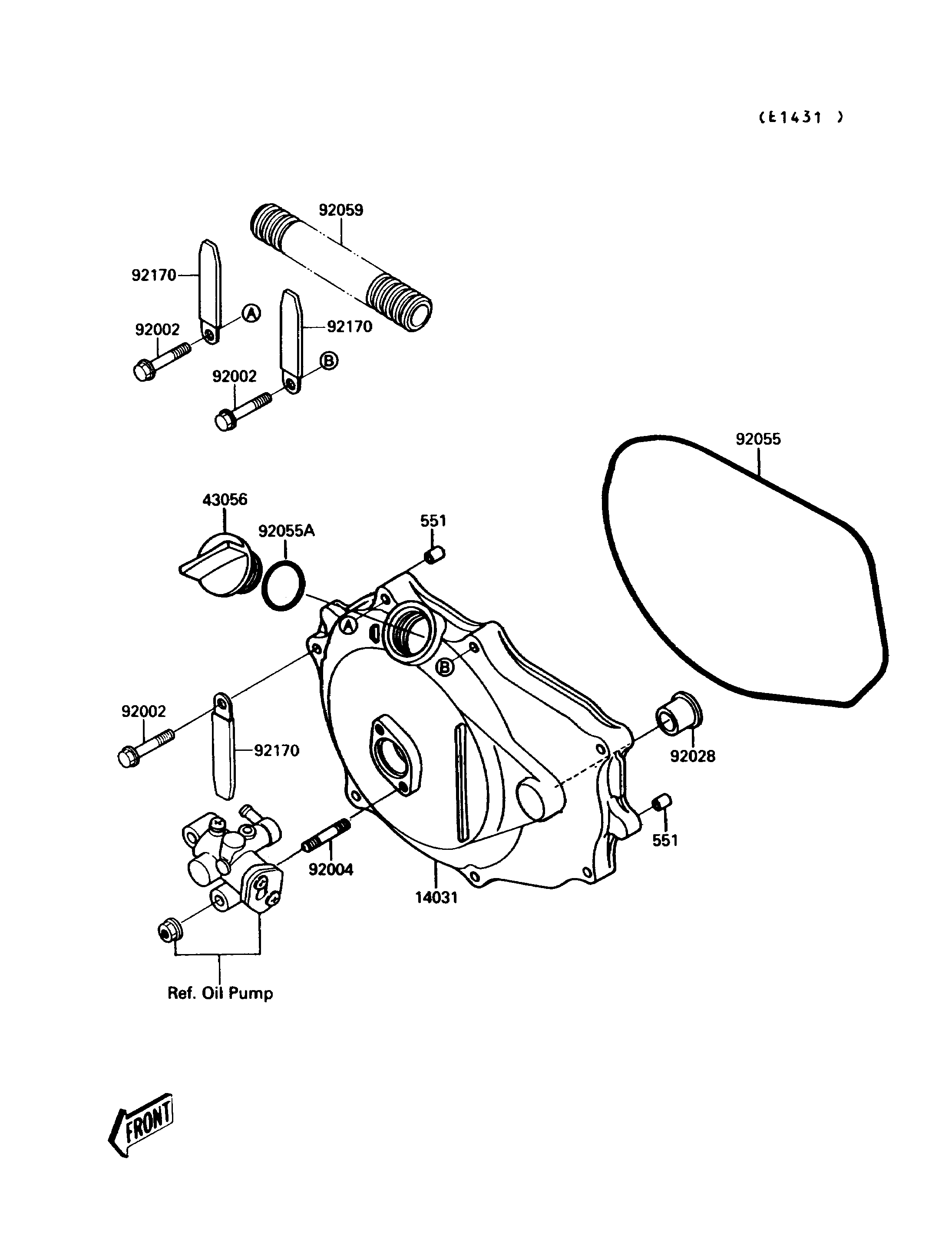

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-GENERATOR 14031 14031-3706 1
BREATHER-BRAKE 43056 43056-502 1
BOLT,6X30 92002 92002-3726 7
STUD 92004 92004-3710 2
BUSHING 92028 92028-3718 1
RING-O,GENERATOR COVER 92055 92055-3712 1
RING-O 92055A 92055-515 1
TUBE,L=150 92059 92059-3897 1
CLAMP 92170 92170-3705 3
PIN-DOWEL 551 551R0812 2
