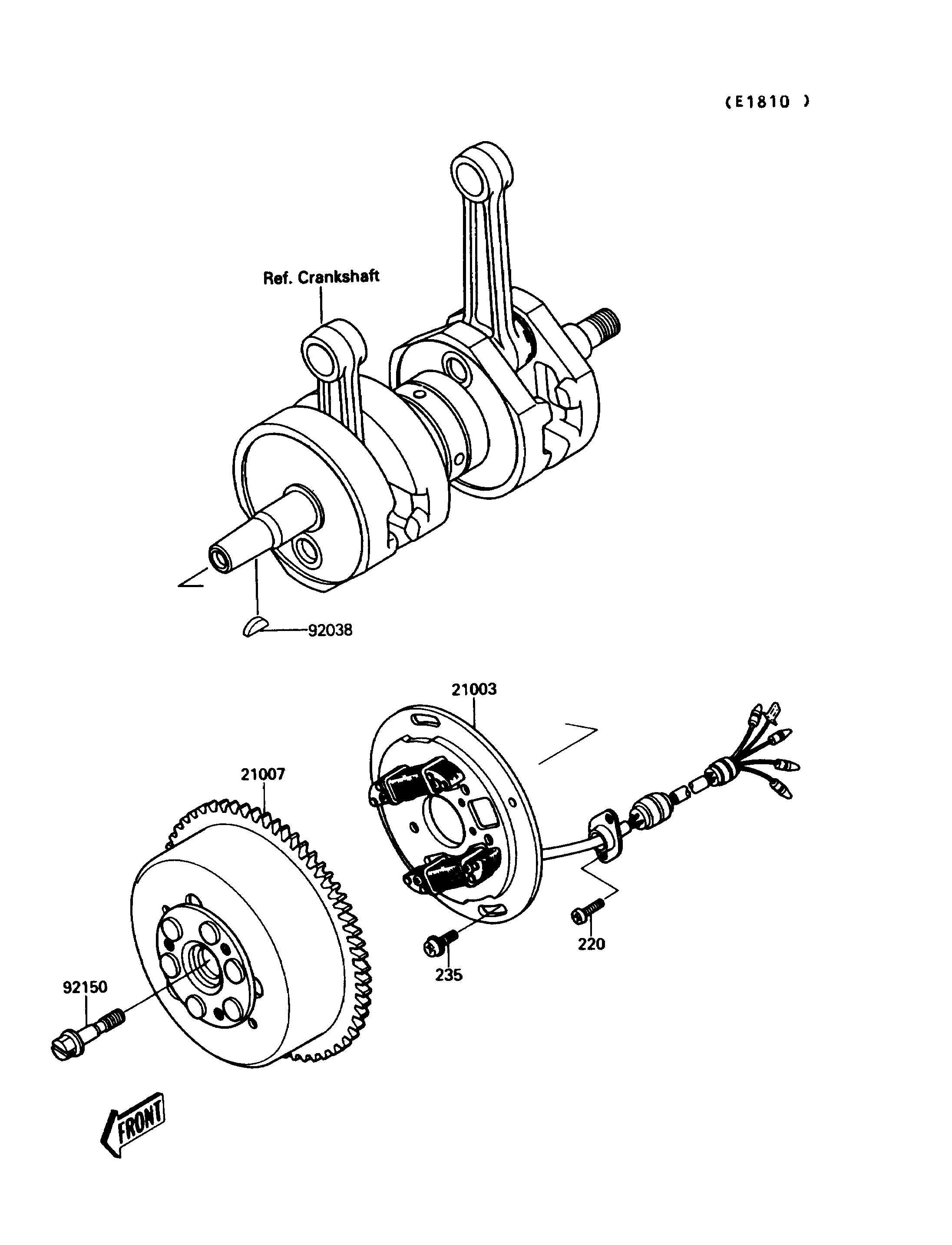

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-3710 1
ROTOR 21007 21007-3704 1
KEY,WOODRUFF 92038 92038-001 1
BOLT,10X38 92150 92150-3736 1
SCREW-PAN-CROS 220 220B0512 2
SCREW-PAN-WP-CROS 235 235B0616 2
