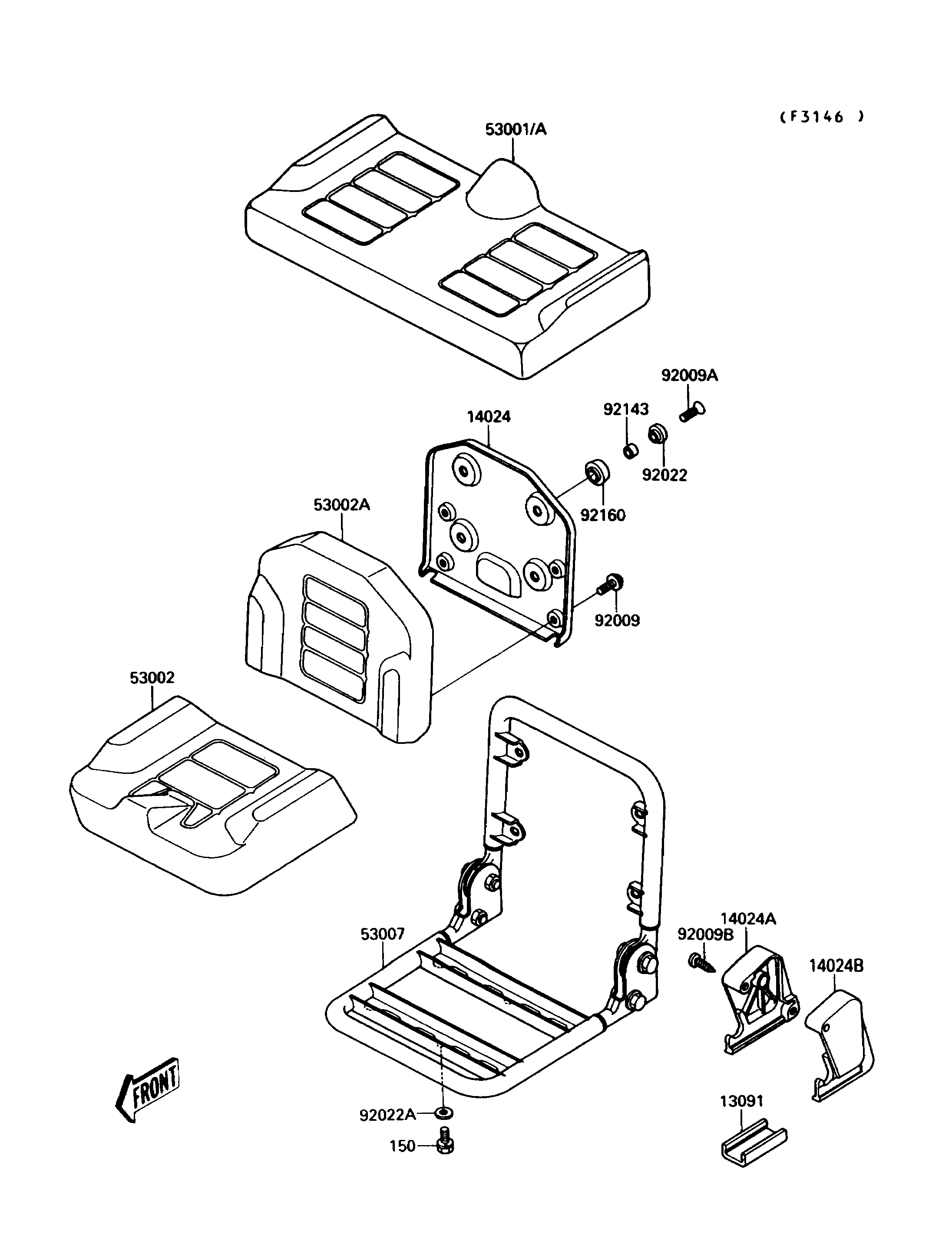

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,SEAT HINGE COVER 13091 13091-3749 2
COVER,FRONT SEAT,P.WHITE 14024 14024-3749-6F 1
COVER,SEAT HINGE 14024A 14024-3763 2
COVER,SEAT HINGE 14024B 14024-3764 2
SEAT-ASSY,RR,RED 53001 53001-3709-MX 1
SEAT,FR,LWR,RED 53002 53002-3706-MX 1
SEAT,FR,UPP,RED 53002A 53002-3707-MX 1
FRAME-SEAT 53007 53007-3701 1
SCREW,6X14 92009 92009-1493 4
SCREW,6X16.9 92009A 92009-3709 4
SCREW,TAPPING,4X14 92009B 92009-3762 4
WASHER 92022 92022-3732 4
WASHER 92022A 92022-567 6
COLLAR,7.1X10.5X6 92143 92027-3702 4
DAMPER 92160 92160-3747 4
BOLT-WS,6X16 150 150R0616 6
