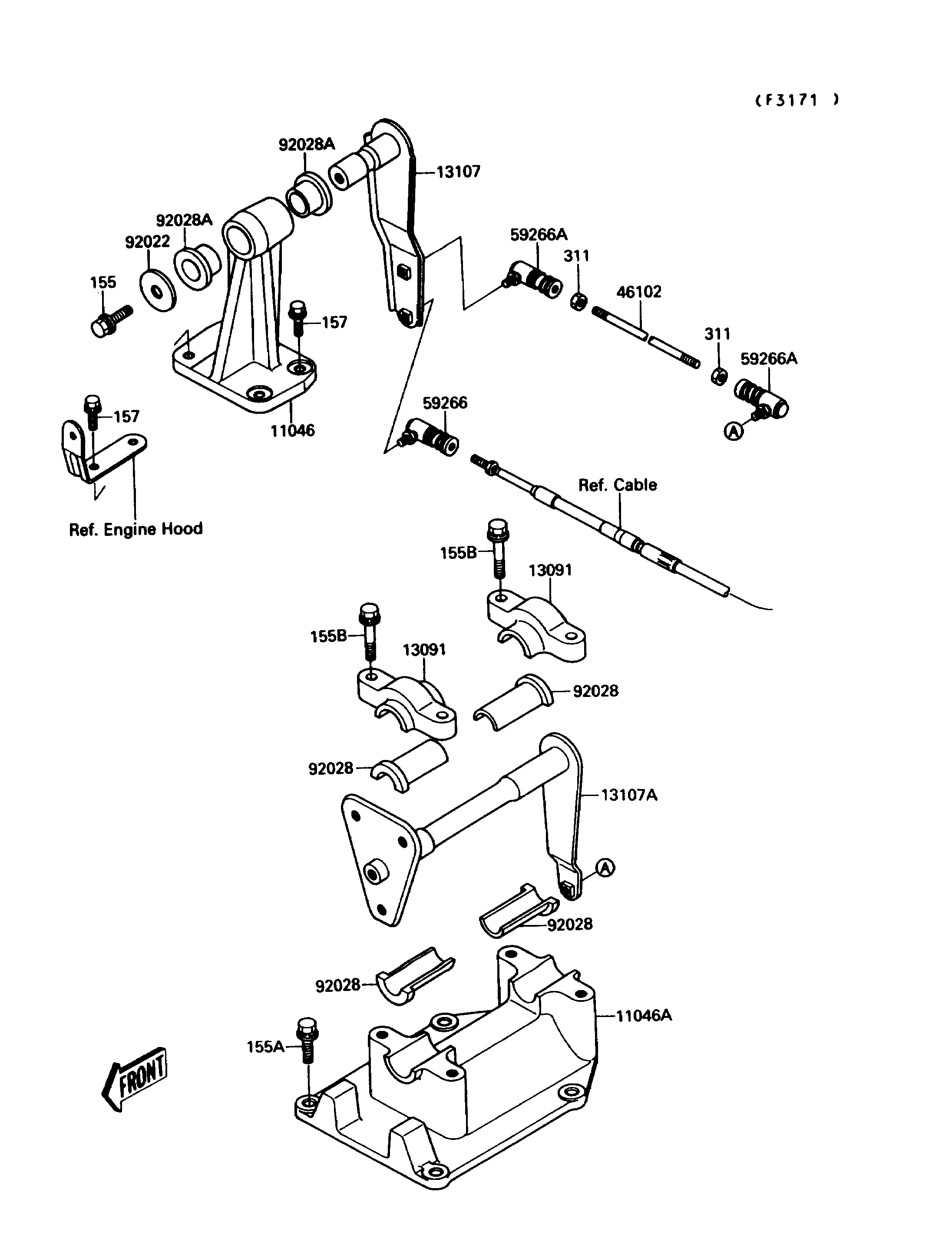

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STEERING 11046 11046-3732 1
BRACKET,HANDLE SHAFT 11046A 11046-3819 1
HOLDER,HANDLE SHAFT 13091 13091-3742 2
SHAFT,STEERING 13107 13107-3714 1
SHAFT,HANDLE 13107A 13107-3718 1
ROD,STEERING 46102 46102-3709 1
JOINT-BALL 59266 59266-3701 1
JOINT-BALL 59266A 59266-3705 2
WASHER,8.5X34X3 92022 92022-3746 1
BUSHING 92028 92028-3728 4
BUSHING 92028A 92028-3729 2
BOLT-WSP-SMALL,8X16 155 155R0816 1
BOLT-WSP-SMALL,8X25 155A 155R0825 4
BOLT-WSP-SMALL,8X35 155B 155R0835 4
BOLT-WSP,6X25 157 157R0625 4
NUT-HEX,6MM 311 311R0600 2
