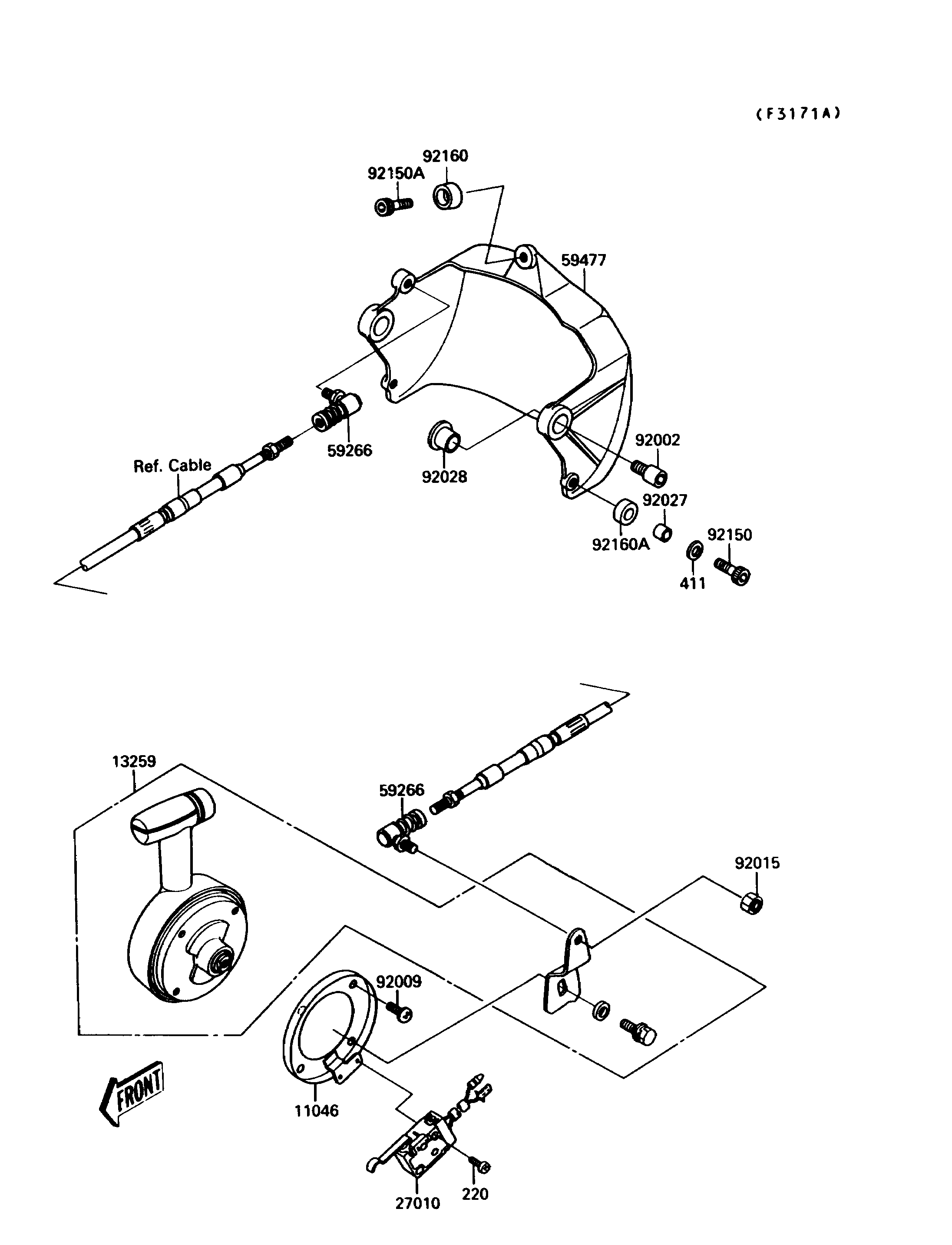

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHIFT CONTROL LEVER 11046 11046-3812 1
LEVER-ASSY-SHIFT CONTROL 13259 13259-3701 1
SWITCH 27010 27010-3718 1
JOINT-BALL 59266 59266-3701 2
BUCKET-REVERSE 59477 59477-3701 1
BOLT,SOCKET,6X11 92002 92001-3701 2
SCREW,5X12 92009 92009-3737 4
NUT,LOCK,6MM 92015 92015-3766 1
COLLAR,6.2X10X10 92027 92027-3705 2
BUSHING 92028 92028-3740 2
BOLT,SOCKET,6X20 92150 92150-3748 2
BOLT,SOCKET,6X10 92150A 92150-3759 1
DAMPER 92160 92160-3738 1
DAMPER 92160A 92160-3739 2
SCREW-PAN-CROS,3X14 220 220R0314 2
WASHER-PLAIN,6MM 411 411S0600 2
