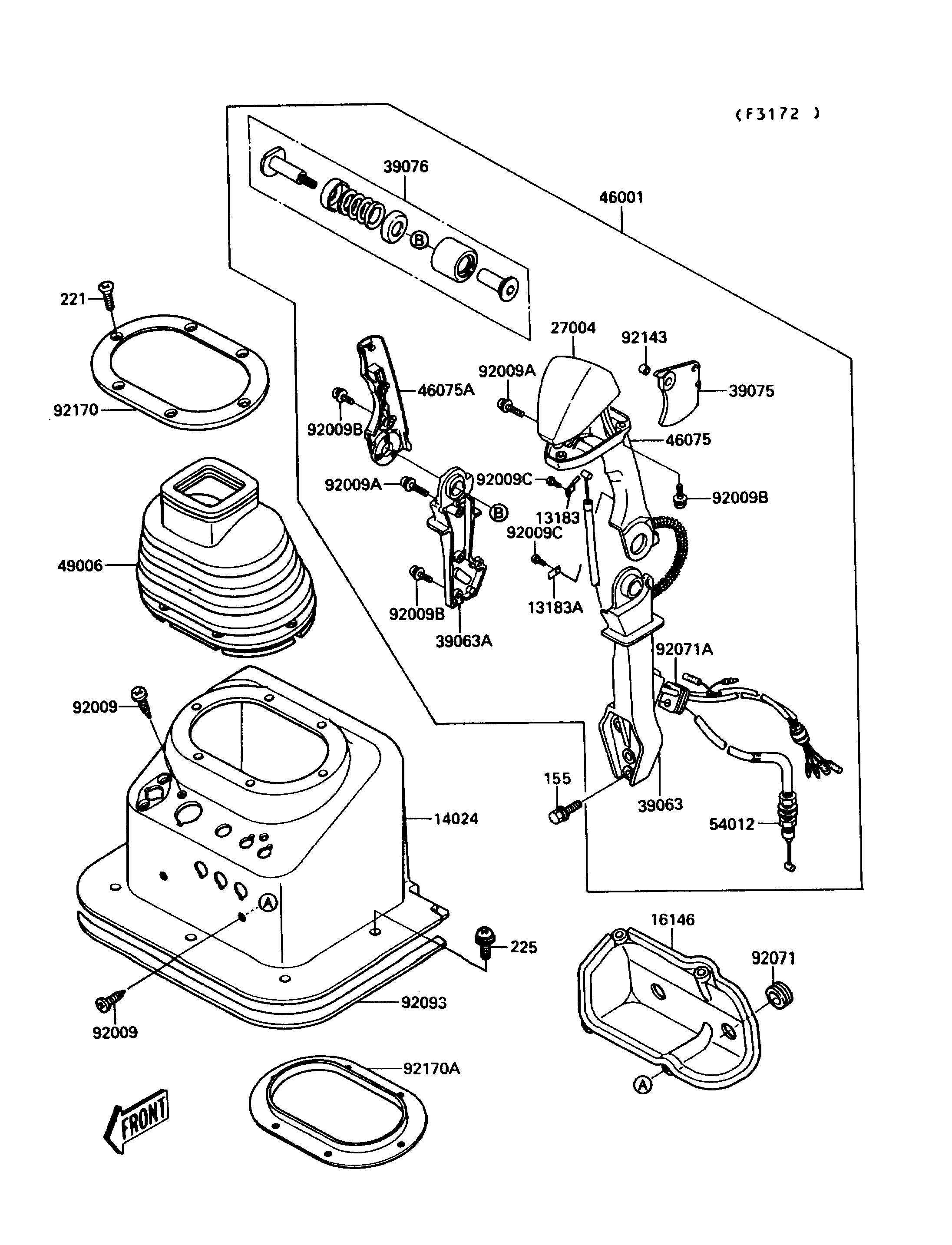

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,SWITCH HARNESS | 13183 | 13183-3763 | 1 | ||
| PLATE,THROTTLE CABLE | 13183A | 13183-3764 | 1 | ||
| COVER,HANDLE,P.WHITE | 14024 | 14024-3752-F1 | 1 | ||
| COVER-ASSY,FUSE | 16146 | 16146-3705 | 1 | ||
| SWITCH-ASSY,START&STOP | 27004 | 27004-3712 | 1 | ||
| HOUSING-CONTROL,LH | 39063 | 39063-3710 | 1 | ||
| HOUSING-CONTROL,RH | 39063A | 39063-3711 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-3707 | 1 | ||
| LIMITER | 39076 | 39076-3702 | 1 | ||
| HANDLE-ASSY | 46001 | 46001-3702 | 1 | ||
| GRIP,LH | 46075 | 46075-3716 | 1 | ||
| GRIP,RH | 46075A | 46075-3717 | 1 | ||
| BOOT,HANDLE | 49006 | 49006-3712 | 1 | ||
| CABLE-THROTTLE | 54012 | 54012-3724 | 1 | ||
| SCREW,TAPPING,5X20 | 92009 | 92009-3756 | 4 | ||
| SCREW,5X30 | 92009A | 92009-3774 | 2 | ||
| SCREW,5X20 | 92009B | 92009-3775 | 8 | ||
| SCREW,3X6 | 92009C | 92009-3776 | 2 | ||
| GROMMET | 92071 | 92071-1027 | 2 | ||
| GROMMET | 92071A | 92071-3775 | 1 | ||
| SEAL | 92093 | 92093-3724 | 1 | ||
| COLLAR | 92143 | 92143-3719 | 1 | ||
| CLAMP,HANDLE BOOT,UPP | 92170 | 92170-3702 | 1 | ||
| CLAMP,HANDLE BOOT,LWR | 92170A | 92170-3703 | 1 | ||
| BOLT-WSP-SMALL,8X35 | 155 | 155R0835 | 4 | ||
| SCREW-CSK-CROS,4X16 | 221 | 221R0416 | 6 | ||
| SCREW-PAN-WSP-CROS,6X20 | 225 | 225R0620 | 5 |
