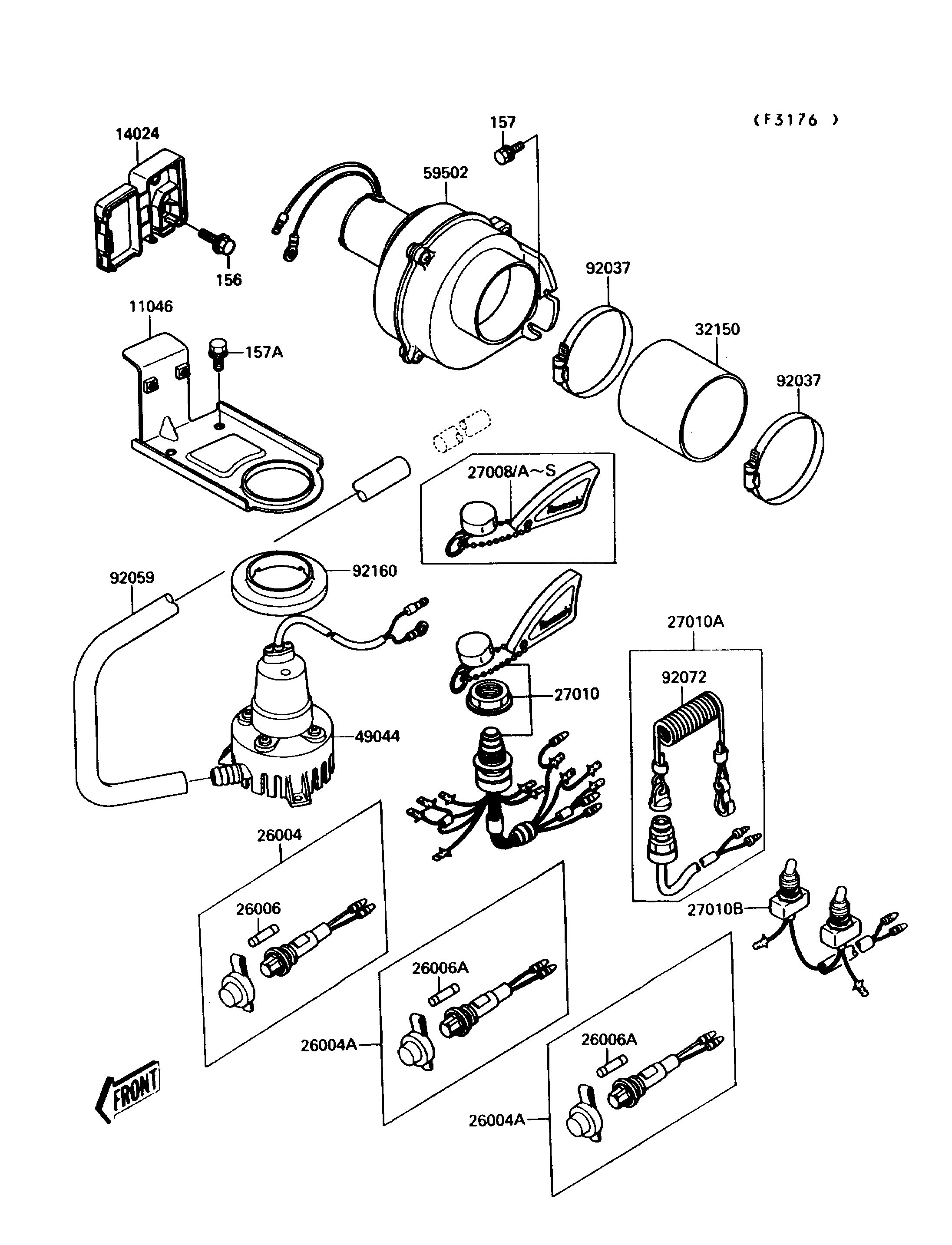

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,BILGE | 11046 | 11046-3803 | 1 | ||
COVER | 14024 | 14024-3774 | 1 | ||
FUSE-ASSY,MAIN | 26004 | 26004-3705 | 1 | ||
FUSE-ASSY,BILGE/BLOWER | 26004A | 26004-3706 | 2 | ||
FUSE,20A,L=31.8 | 26006 | 26006-3701 | 1 | ||
FUSE,5A,L=31.8 | 26006A | 26006-3702 | 2 | ||
KEY,MAGNETIC SW,#2001 | 27008 | 27008-3702 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2002 | 27008A | 27008-3703 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2003 | 27008B | 27008-3704 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2004 | 27008C | 27008-3705 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2005 | 27008D | 27008-3706 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2006 | 27008E | 27008-3707 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2007 | 27008F | 27008-3708 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2008 | 27008G | 27008-3709 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2009 | 27008H | 27008-3710 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2010 | 27008I | 27008-3711 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2011 | 27008J | 27008-3712 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2012 | 27008K | 27008-3713 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2013 | 27008L | 27008-3714 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2014 | 27008M | 27008-3715 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2015 | 27008N | 27008-3716 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2016 | 27008O | 27008-3717 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2017 | 27008P | 27008-3718 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2018 | 27008Q | 27008-3719 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2019 | 27008R | 27008-3720 | 1 | (OPTION) | |
KEY,MAGNETIC SW,#2020 | 27008S | 27008-3721 | 1 | (OPTION) | |
SWITCH,MAIN | 27010 | 27010-3709 | 1 | ||
SWITCH,STOP | 27010A | 27010-3710 | 1 | ||
SWITCH,BILGE/BLOWER | 27010B | 27010-3720 | 1 | ||
PIPE | 32150 | 32150-3716 | 1 | ||
PUMP-WATER,BILGE | 49044 | 49044-3702 | 1 | ||
FAN-ASSY,BLOWER | 59502 | 59502-3701 | 1 | ||
CLAMP | 92037 | 92037-3711 | 2 | ||
TUBE | 92059 | 92059-3845 | 1 | ||
BAND,TETHER SWITCH | 92072 | 92072-3744 | 1 | ||
DAMPER | 92160 | 92160-3723 | 1 | ||
BOLT-WP,6X20 | 156 | 156R0620 | 2 | ||
BOLT-WSP,5X18 | 157 | 157R0518 | 4 | ||
BOLT-WSP,6X16 | 157A | 157R0616 | 2 |
