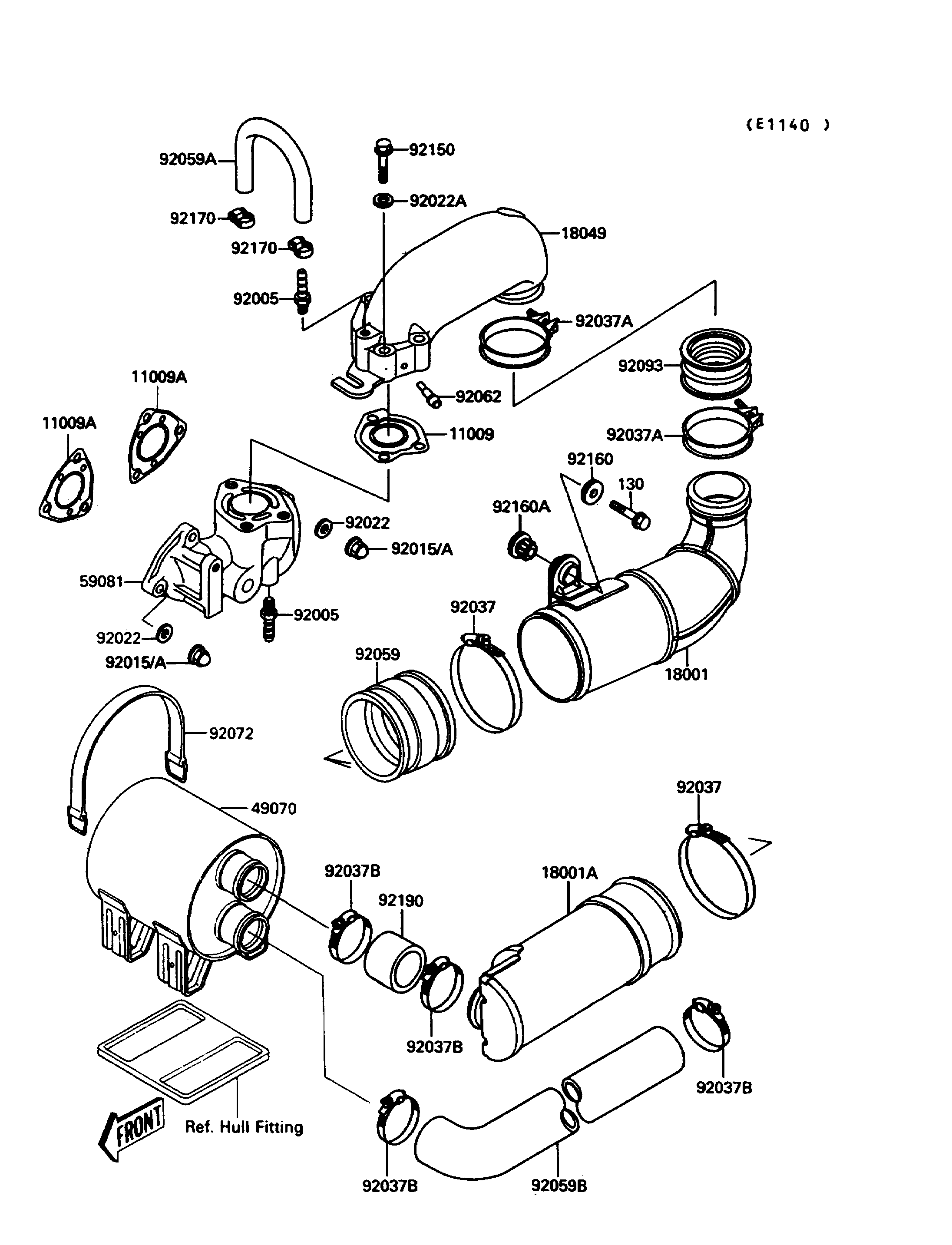

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EXHAUST PIPE | 11009 | 11009-3752 | 1 | ||
GASKET,EXHAUST PIPE | 11009A | 11009-3772 | 2 | ||
MUFFLER,BODY | 18001 | 18001-3721 | 1 | ||
MUFFLER,BODY | 18001A | 18001-3731 | 1 | ||
PIPE-EXHAUST | 18049 | 18049-3725 | 1 | ||
MUFFLER-COMP,WATER BOX | 49070 | 49070-3708 | 1 | ||
MANIFOLD-EXHAUST | 59081 | 59081-3706 | 1 | ||
FITTING,HOSE | 92005 | 92005-3001 | 2 | ||
NUT,CAP,8MM | 92015 | 92015-1371 | 6 | ||
WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 6 | ||
WASHER,10.2X20X1.5 | 92022A | 92022-3742 | 3 | ||
CLAMP,MAX120.7MM | 92037 | 92037-3733 | 2 | ||
CLAMP,68MM | 92037A | 92037-3740 | 2 | ||
CLAMP | 92037B | 92037-509 | 4 | ||
TUBE,MUFFLER CONNECTING | 92059 | 92059-3767 | 1 | ||
TUBE | 92059A | 92059-3816 | 1 | ||
TUBE | 92059B | 92059-3822 | 1 | ||
NOZZLE | 92062 | 92062-3705 | 1 | ||
BAND,L=384 | 92072 | 92072-3713 | 2 | ||
SEAL | 92093 | 92093-3705 | 1 | ||
BOLT,10X50 | 92150 | 92150-3723 | 3 | ||
DAMPER,MUFFLER | 92160 | 92160-3701 | 1 | ||
DAMPER,MUFFLER MOUNT | 92160A | 92160-3702 | 1 | ||
CLAMP | 92170 | 92170-3720 | 2 | ||
TUBE | 92190 | 92190-3702 | 1 | ||
BOLT-FLANGED | 130 | 130Z0845 | 1 |
