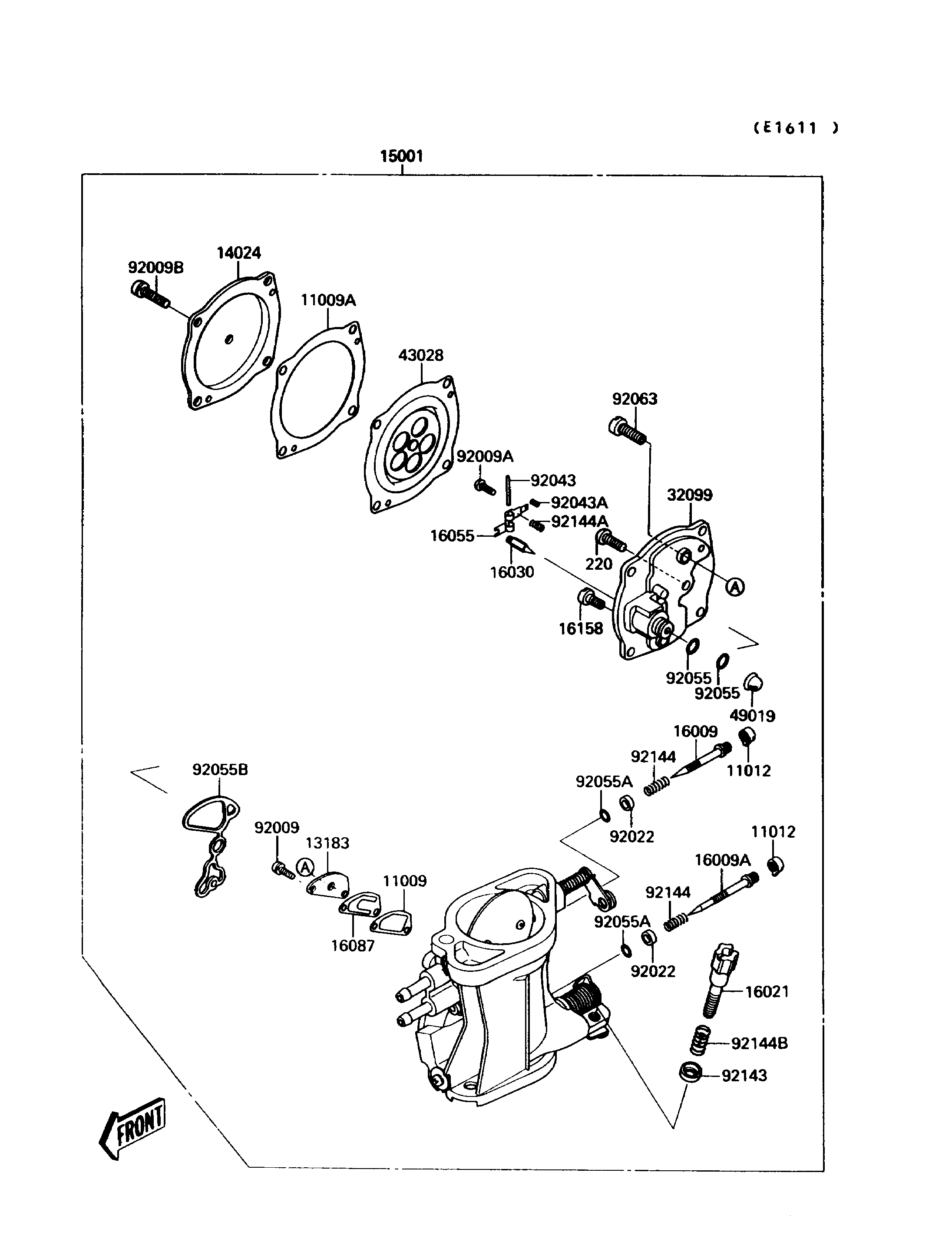

1992 Jet Mate - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CHOKE VALVE 11009 11009-3729 1
GASKET,DIAPHRAGM 11009A 11009-3730 1
CAP,JET NEEDLE 11012 11012-3727 2
PLATE 13183 13183-3707 1
COVER,CARBURETOR 14024 14024-3765 1
CARBURETOR-ASSY 15001 15001-3751 1
NEEDLE-JET,HIGH SPEED 16009 16009-3705 1
NEEDLE-JET,LOW SPEED 16009A 16009-3706 1
SCREW-THROTTLE STOP 16021 16021-3702 1
VALVE-FLOAT 16030 16030-3701 1
ARM-FLOAT 16055 16055-3701 1
VALVE-CHECK 16087 16087-3702 1
JET-SLOW,#58 16158 16158-3704 1
CASE,CARBURETOR 32099 32099-3744 1
DIAPHRAGM,CARBURETOR 43028 43028-3704 1
FILTER-FUEL,STRAINER 49019 49019-3707 1
SCREW,3X6 92009 92009-3710 2
SCREW,3X6 92009A 92009-3712 1
SCREW,4X16 92009B 92009-3739 4
WASHER,ADJUST SCREW 92022 92022-3745 2
PIN,FLOAT 92043 92043-1209 1
PIN,THROTTLE STOP SCREW 92043A 92043-3712 1
RING-O 92055 92055-1246 2
RING-O,ADJUST SCREW 92055A 92055-3713 2
RING-O 92055B 92055-3720 1
JET-MAIN,2ND,#125 92063 92063-1069 1
COLLAR,THROTTLE STOP SCREW 92143 92143-3709 1
SPRING,ADJUST SCREW 92144 92144-3704 2
SPRING,FLOAT VALVE 92144A 92144-3705 1
SPRING,THROTTLE STOP SCREW 92144B 92144-3706 1
SCREW-PAN-CROS 220 220D0408 1
