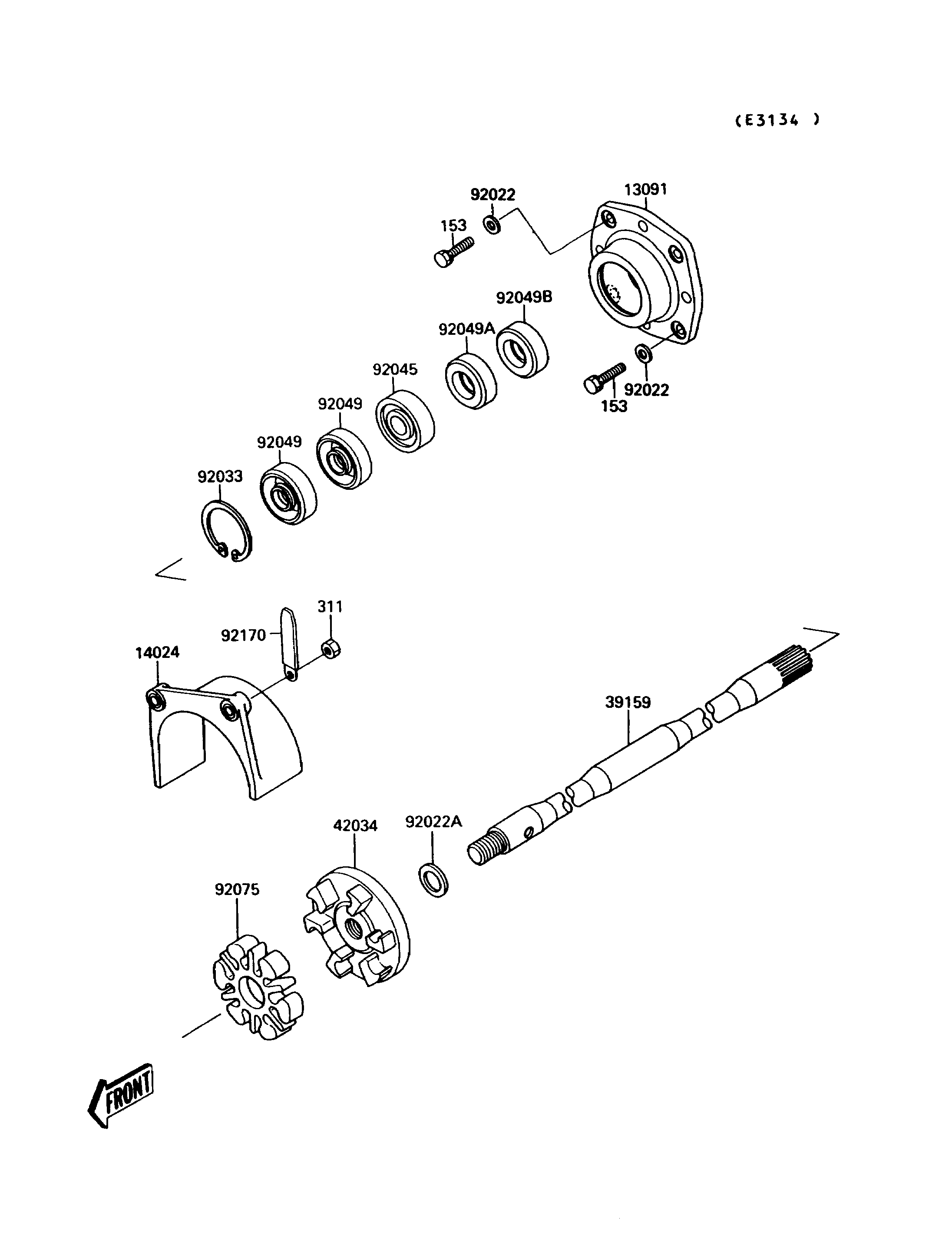

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-3730 1
COVER,COUPLING 14024 14024-3728 1
SHAFT-DRIVE 39159 39159-3712 1
COUPLING 42034 42034-3705 1
WASHER,8.2X18X1.5 92022 92022-1964 4
WASHER,18X26X2.0 92022A 92022-3728 1
RING-SNAP,42MM 92033 92033-3713 1
BEARING-BALL,60042RD 92045 92045-3705 1
SEAL-OIL,S620426 92049 92049-3707 2
SEAL-OIL,SCY20368 92049A 92050-502 1
SEAL-OIL,SC20367 92049B 92050-503 1
DAMPER,COUPLING 92075 92075-520 1
CLAMP 92170 92170-3705 2
BOLT-WS-SMALL 153 153R0825 4
NUT-HEX,6MM 311 311R0600 2
