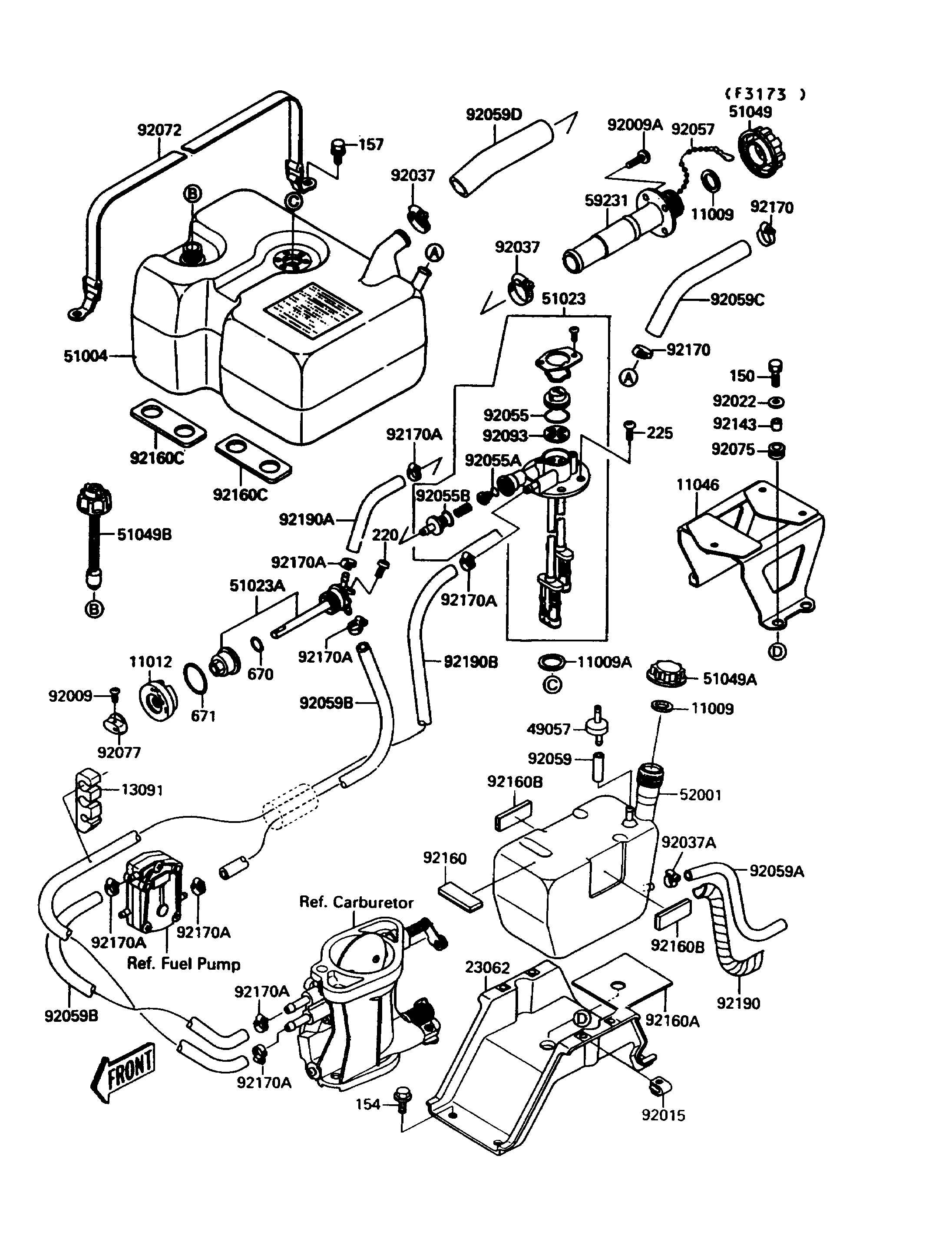

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TANK CAP | 11009 | 11009-3020 | 2 | ||
GASKET | 11009A | 92065-504 | 1 | ||
CAP,FUEL TAP | 11012 | 11012-3728 | 1 | ||
BRACKET,ELECTRIC | 11046 | 11046-3756 | 1 | ||
HOLDER,TUBE | 13091 | 13091-3745 | 2 | ||
BRACKET-COMP,OIL TANK | 23062 | 23062-3701 | 1 | ||
VALVE-RELIEF | 49057 | 49057-3001 | 1 | ||
TANK-FUEL | 51004 | 51004-3713 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-3719 | 1 | ||
TAP-ASSY,FUEL | 51023A | 51023-3720 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-3705 | 1 | ||
CAP-TANK,OIL | 51049A | 51049-3716 | 1 | ||
CAP-TANK,FUEL GAUGE | 51049B | 51049-3717 | 1 | ||
TANK-OIL | 52001 | 52001-3710 | 1 | ||
FILLER | 59231 | 59231-3711 | 1 | ||
SCREW,4X8 | 92009 | 92009-3729 | 1 | ||
SCREW,6X20 | 92009A | 92009-3763 | 4 | ||
NUT,6MM | 92015 | 92015-3763 | 4 | ||
WASHER | 92022 | 92022-3710 | 4 | ||
CLAMP | 92037 | 92037-3009 | 4 | ||
CLAMP | 92037A | 92037-3726 | 1 | ||
RING-O | 92055 | 92055-3722 | 1 | ||
RING-O | 92055A | 92055-3723 | 1 | ||
RING-O | 92055B | 92055-3724 | 1 | ||
CHAIN,COVER,L=100 | 92057 | 92057-3704 | 1 | ||
TUBE,5.8X12.2X55 | 92059 | 92059-3026 | 1 | ||
TUBE,5.8X10.8X360 | 92059A | 92059-3743 | 1 | ||
TUBE,6.35X16X510 | 92059B | 92059-3840 | 2 | ||
TUBE,15.9X25.8X110 | 92059C | 92059-3842 | 1 | ||
TUBE,38.1X51X125 | 92059D | 92059-3844 | 1 | ||
BAND | 92072 | 92072-3726 | 2 | ||
DAMPER | 92075 | 92075-076 | 4 | ||
KNOB | 92077 | 92077-3709 | 1 | ||
SEAL | 92093 | 92093-3727 | 1 | ||
COLLAR,7.5X10.5X9 | 92143 | 92143-3714 | 4 | ||
DAMPER | 92160 | 92160-1004 | 2 | ||
DAMPER | 92160A | 92160-3719 | 1 | ||
DAMPER | 92160B | 92160-3720 | 2 | ||
DAMPER | 92160C | 92160-3722 | 4 | ||
CLAMP,COOLING HOSE | 92170 | 92170-1286 | 2 | ||
CLAMP | 92170A | 92170-3720 | 8 | ||
TUBE | 92190 | 92190-3705 | 1 | ||
TUBE,6.35X16X170 | 92190A | 92190-3721 | 1 | ||
TUBE,6.35X16X1300 | 92190B | 92190-3727 | 1 | ||
BOLT-WS,6X25 | 150 | 150R0625 | 4 | ||
BOLT-WP-SMALL,8X18 | 154 | 154R0818 | 3 | ||
BOLT-WSP,6X14 | 157 | 157R0614 | 4 | ||
SCREW-PAN-CROS,6X12 | 220 | 220R0612 | 1 | ||
SCREW-PAN-WSP-CROS,5X16 | 225 | 225R0516 | 6 | ||
O RING,8MM | 670 | 670B1508 | 1 | ||
O RING,65MM | 671 | 671B2565 | 1 |
GASKET,TANK CAP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,FUEL TAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,ELECTRIC | |
REF # | 11046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,TUBE | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-COMP,OIL TANK | |
REF # | 23062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-RELIEF | |
REF # | 49057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-FUEL | |
REF # | 51004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL | |
REF # | 51049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,OIL | |
REF # | 51049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL GAUGE | |
REF # | 51049B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-OIL | |
REF # | 52001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILLER | |
REF # | 59231 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,4X8 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X20 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,COVER,L=100 | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.8X12.2X55 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.8X10.8X360 | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,6.35X16X510 | |
REF # | 92059B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,15.9X25.8X110 | |
REF # | 92059C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,38.1X51X125 | |
REF # | 92059D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
KNOB | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,7.5X10.5X9 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,COOLING HOSE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,6.35X16X170 | |
REF # | 92190A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,6.35X16X1300 | |
REF # | 92190B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-WS,6X25 | |
REF # | 150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-WP-SMALL,8X18 | |
REF # | 154 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-WSP,6X14 | |
REF # | 157 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X12 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-WSP-CROS,5X16 | |
REF # | 225 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
O RING,8MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,65MM | |
REF # | 671 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
