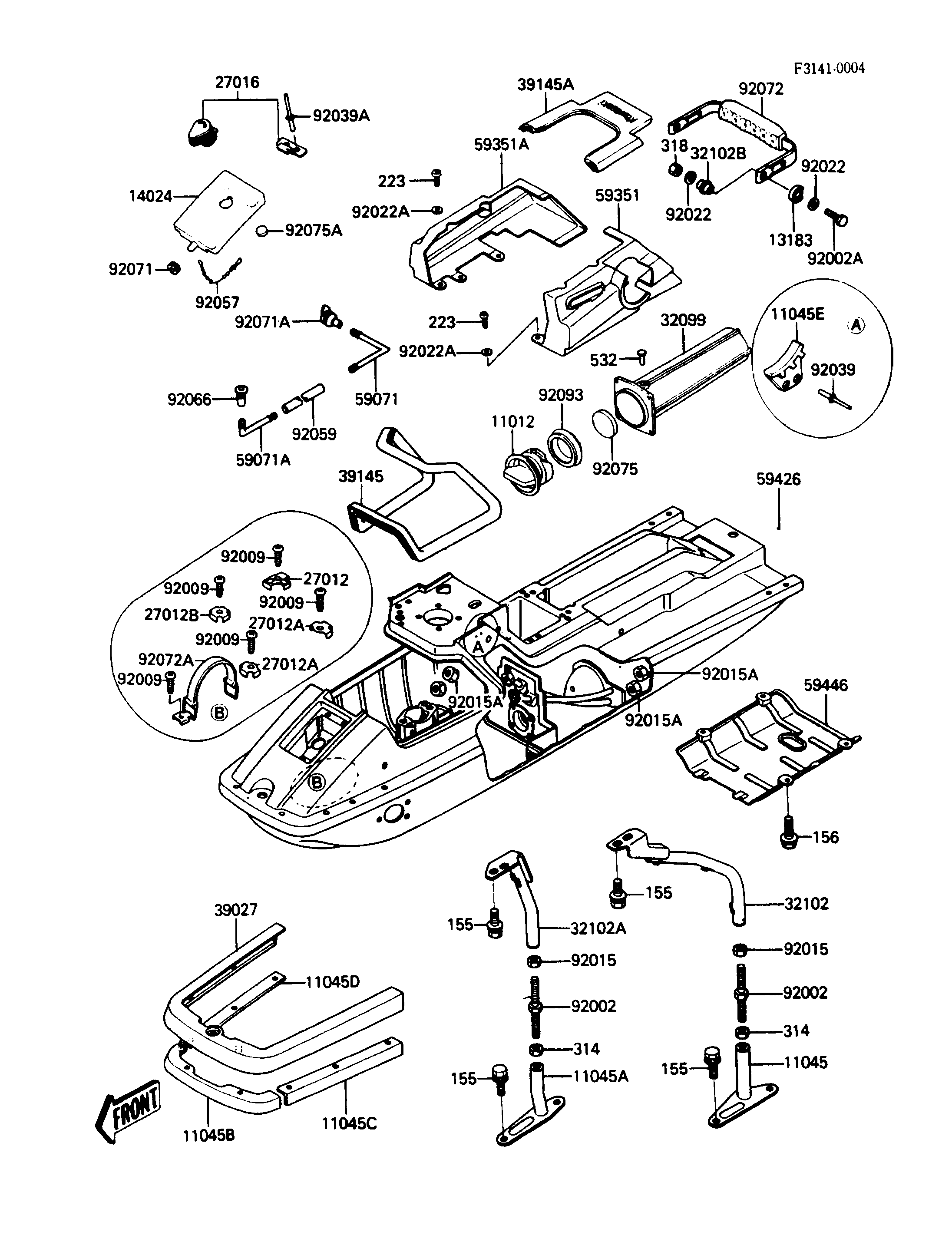

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-3708 | 1 | ||
BRACKET,DECK,LH | 11045 | 11044-3710 | 1 | ||
BRACKET,DECK,RH | 11045A | 11044-3711 | 1 | ||
BRACKET,BUMPER,CNT | 11045B | 11045-3710 | 1 | ||
BRACKET,BUMPER,LH | 11045C | 11045-3711 | 1 | ||
BRACKET,BUMPER,RH | 11045D | 11045-3712 | 1 | ||
BRACKET | 11045E | 11045-3755 | 1 | ||
PLATE | 13183 | 13169-3714 | 2 | ||
COVER,TANK CAP,JET WHITE | 14024 | 14024-3731-8C | 1 | ||
HOOK | 27012 | 27012-3705 | 1 | ||
HOOK | 27012A | 27012-501 | 2 | ||
HOOK | 27012B | 27012-502 | 1 | ||
LOCK-ASSY,TANK CAP COVER | 27016 | 27016-3705 | 1 | ||
CASE,FIRE EXT. | 32099 | 32099-3705 | 1 | ||
PIPE,DECK,LH | 32102 | 32033-3718 | 1 | ||
PIPE,DECK,RH | 32102A | 32033-3719 | 1 | ||
PIPE | 32102B | 32102-3704 | 2 | ||
BUMPER-FRONT | 39027 | 39027-3702 | 1 | ||
TRIM-SEAL | 39145 | 39145-3701 | 1 | ||
TRIM-SEAL,DECK | 39145A | 39145-3702 | 1 | ||
JOINT | 59071 | 59071-3706 | 1 | ||
JOINT | 59071A | 59071-3714 | 1 | ||
DECK,LH,JET WHITE | 59351 | 59351-3708-8C | 1 | ||
DECK,RH,JET WHITE | 59351A | 59351-3709-8C | 1 | ||
HULL-COMP,JET WHITE | 59426 | 59426-5512-8C | 1 | ||
COVER-JET PUMP | 59446 | 59446-3703 | 1 | ||
BOLT,10MM | 92002 | 92002-3731 | 2 | ||
BOLT,8X30 | 92002A | 92002-3742 | 2 | ||
SCREW,TAPPING | 92009 | 92011-561 | 6 | ||
NUT,10MM | 92015 | 92015-3737 | 2 | ||
NUT,20MM | 92015A | 92015-3738 | 4 | ||
WASHER,8.5X19X1.2 | 92022 | 92022-3730 | 4 | ||
WASHER | 92022A | 92022-567 | 8 | ||
RIVET | 92039 | 92039-3002 | 2 | ||
RIVET | 92039A | 92039-3714 | 2 | ||
CHAIN,COVER,L=250 | 92057 | 92057-3701 | 1 | ||
TUBE,5.8X10.8X220 | 92059 | 92059-3765 | 1 | ||
PLUG | 92066 | 92066-3706 | 1 | ||
GROMMET | 92071 | 92071-3733 | 1 | ||
GROMMET | 92071A | 92071-3736 | 1 | ||
BAND,TANDEM | 92072 | 92072-3711 | 1 | ||
BAND,L=318 | 92072A | 92072-3723 | 2 | ||
DAMPER | 92075 | 92075-3719 | 1 | ||
DAMPER | 92075A | 92075-3760 | 2 | ||
SEAL,OSR70X82X7.5 | 92093 | 92093-3704 | 1 | ||
BOLT-WSP-SMALL,8X16 | 155 | 155R0816 | 8 | ||
BOLT-WP,6X22 | 156 | 156R0622 | 4 | ||
SCREW-PAN-WS-CROS,6X20 | 223 | 223R0620 | 8 | ||
NUT-HEX-FINE,10MM | 314 | 314R1000 | 2 | ||
NUT-HEX-SMALL | 318 | 318R0800 | 2 | ||
RIVET-FLAT | 532 | 532R0508 | 2 |
