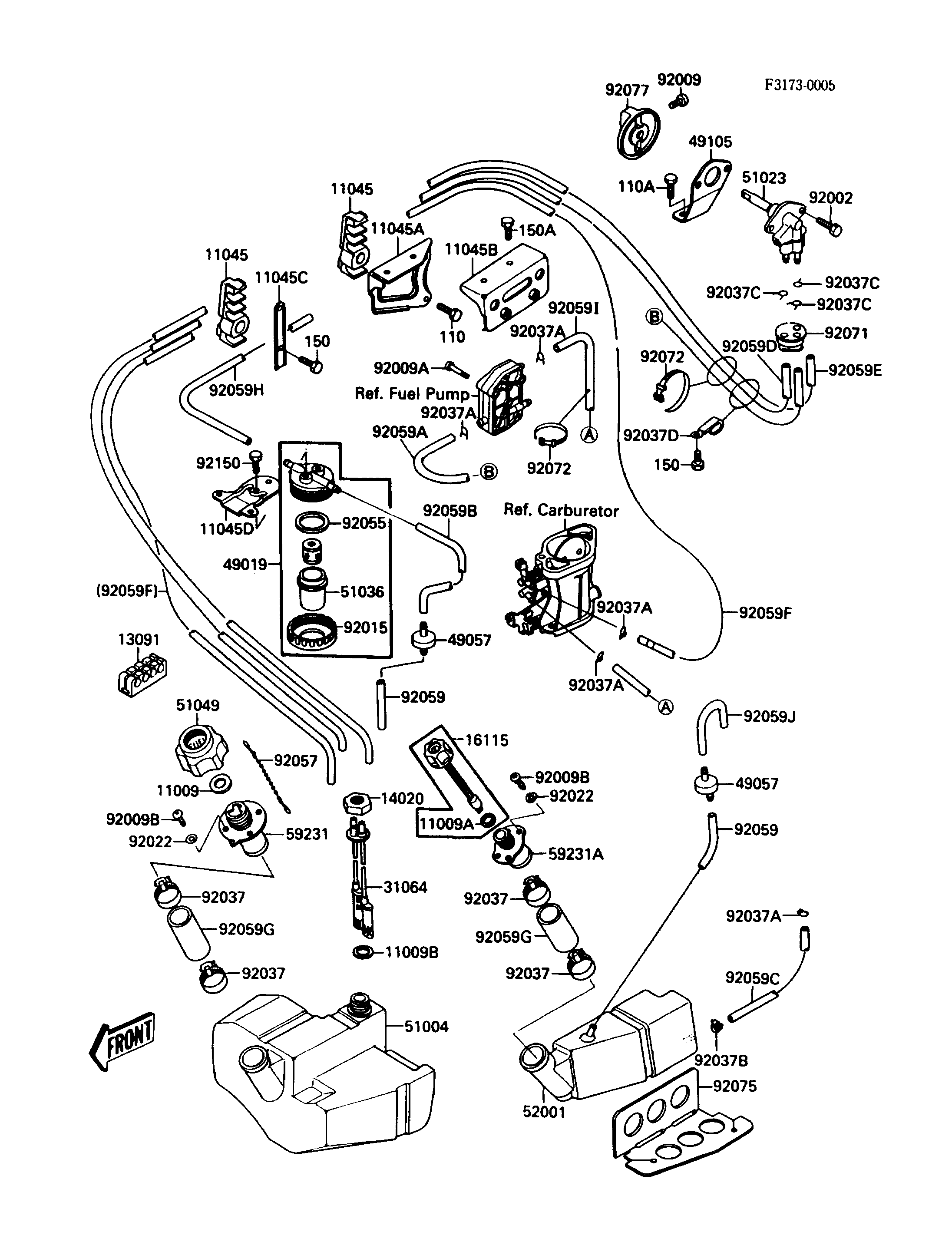

1988 X2 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET,OIL FILLER CAP 11009A 11009-3736 1
GASKET 11009B 92065-504 1
BRACKET,FUEL PIPE 11045 11044-3718 3
BRACKET,FUEL PUMP 11045A 11044-3719 1
BRACKET,FUEL PUMP 11045B 11045-3702 1
BRACKET 11045C 11045-3757 1
BRACKET 11045D 11045-3760 1
HOLDER,FUEL PIPE 13091 13091-3709 1
RETAINER 14020 23072-501 1
CAP-OIL FILLER 16115 16115-3702 1
PIPE-COMP,FUEL 31064 31064-3707 1
FILTER-FUEL 49019 49019-3706 1
VALVE-RELIEF 49057 49057-3001 2
BRACKET-TAP 49105 49105-3704 1
TANK-FUEL 51004 51004-3704 1
TAP-ASSY,FUEL 51023 51023-3703 1
CUP,FUEL FILTER 51036 51036-3702 1
CAP-TANK,FUEL 51049 51049-3705 1
TANK-OIL 52001 52001-3704 1
FILLER,FUEL TANK 59231 59231-3702 1
FILLER,OIL TANK 59231A 59231-3703 1
BOLT,5X16 92002 92002-3747 2
SCREW,4X8 92009 92009-3729 1
SCREW,6X40 92009A 92009-3735 2
SCREW 92009B 92011-562 8
NUT,RING 92015 92015-3013 1
WASHER 92022 92022-563 8
CLAMP 92037 92037-3009 4
CLAMP,11MM 92037A 92037-3723 5
CLAMP 92037B 92037-3726 1
CLAMP 92037C 92037-3727 3
CLAMP,L=100 92037D 92037-3736 1
RING-O,FILTER CUP 92055 92055-3006 1
CHAIN,COVER,L=80 92057 92057-3004 1
TUBE,5.8X12.2X55 92059 92059-3026 2
TUBE,5.8X700 92059A 92059-3720 1
TUBE,5.8X10.8X200 92059B 92059-3721 1
TUBE,5.8X10.8X360 92059C 92059-3743 1
TUBE,"RES",5.8X1400 92059D 92059-3744 1
TUBE,"ON",5.8X1400 92059E 92059-3745 1
TUBE,RETURN,7X12X1230 92059F 92059-3746 1
TUBE,45X53X75 92059G 92059-3751 2
TUBE,5.8X10.8X1260 92059H 92059-3770 1
TUBE,5.8X10.8X330 92059I 92059-3794 1
TUBE 92059J 92059-3802 1
GROMMET 92071 92071-3745 1
BAND,L=186 92072 92072-056 2
DAMPER 92075 92075-3728 1
KNOB,FUEL TAP 92077 92077-3704 1
BOLT,6X12 92150 92150-3709 2
BOLT,6X12 110 110R0612 2
BOLT,6X16 110A 110R0616 2
BOLT-WS,6X12 150 150R0612 3
BOLT-WS,6X14 150A 150R0614 2
