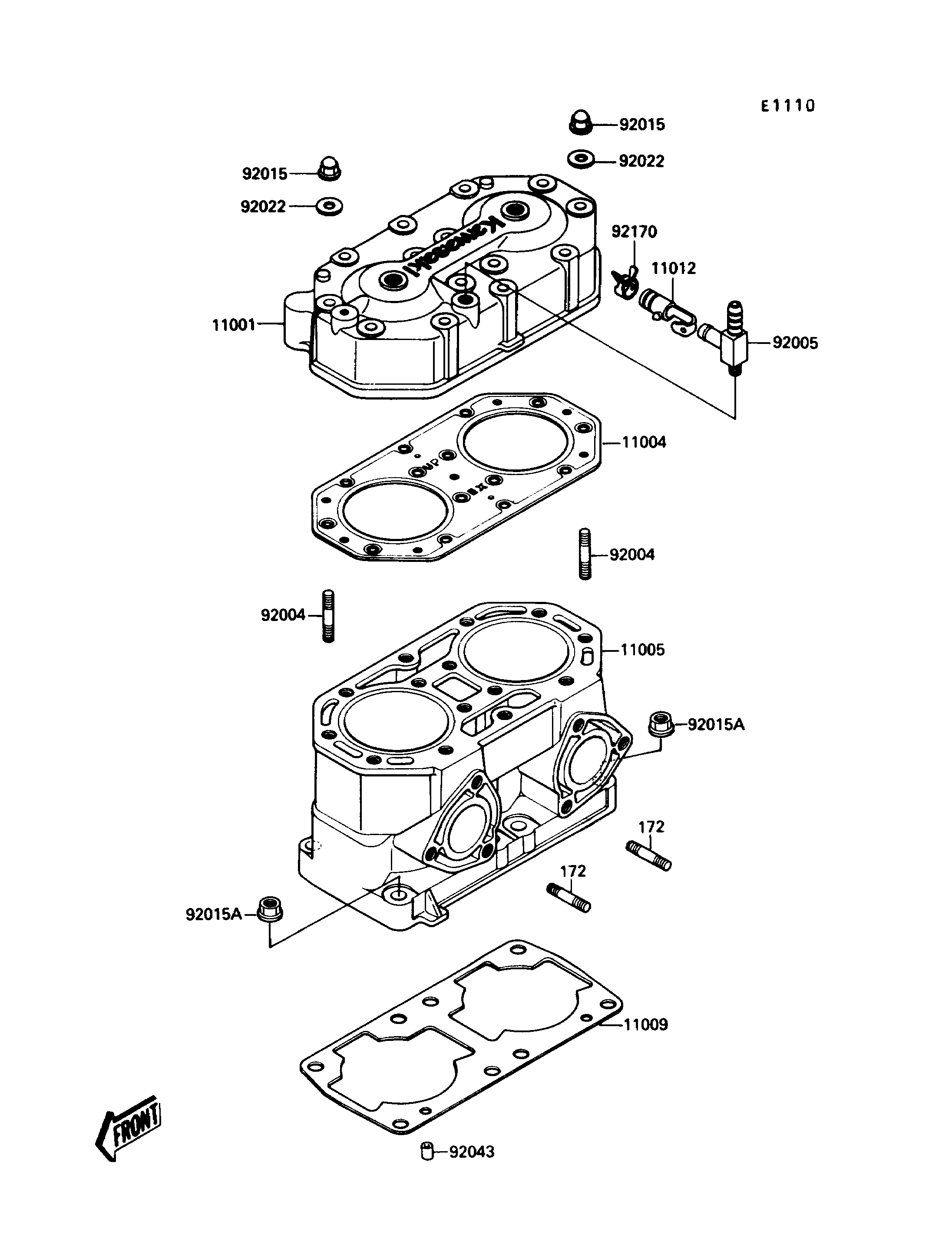

Parts Diagrams |
172
172
11001
11004
11005
11009
11012
92004
92004
92005
92015
92015
92015A
92015A
92022
92022
92043
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-STUD | 172 | 172R0830 | 6 | ||
| HEAD-CYLINDER | 11001 | 11001-3712 | 1 | ||
| GASKET-HEAD | 11004 | 11004-3704 | 1 | ||
| CYLINDER-ENGINE | 11005 | 11005-3708 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11009-3719 | 1 | ||
| CAP | 11012 | 11012-3744 | 1 | ||
| STUD,8X43 | 92004 | 92004-3715 | 14 | ||
| FITTING | 92005 | 92005-3704 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 14 | ||
| NUT,10MM | 92015A | 92015-3708 | 8 | ||
| WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 14 | ||
| PIN,DOWEL,6.3X8X14 | 92043 | 92042-007 | 2 | ||
| CLAMP | 92170 | 92170-3714 | 1 |
