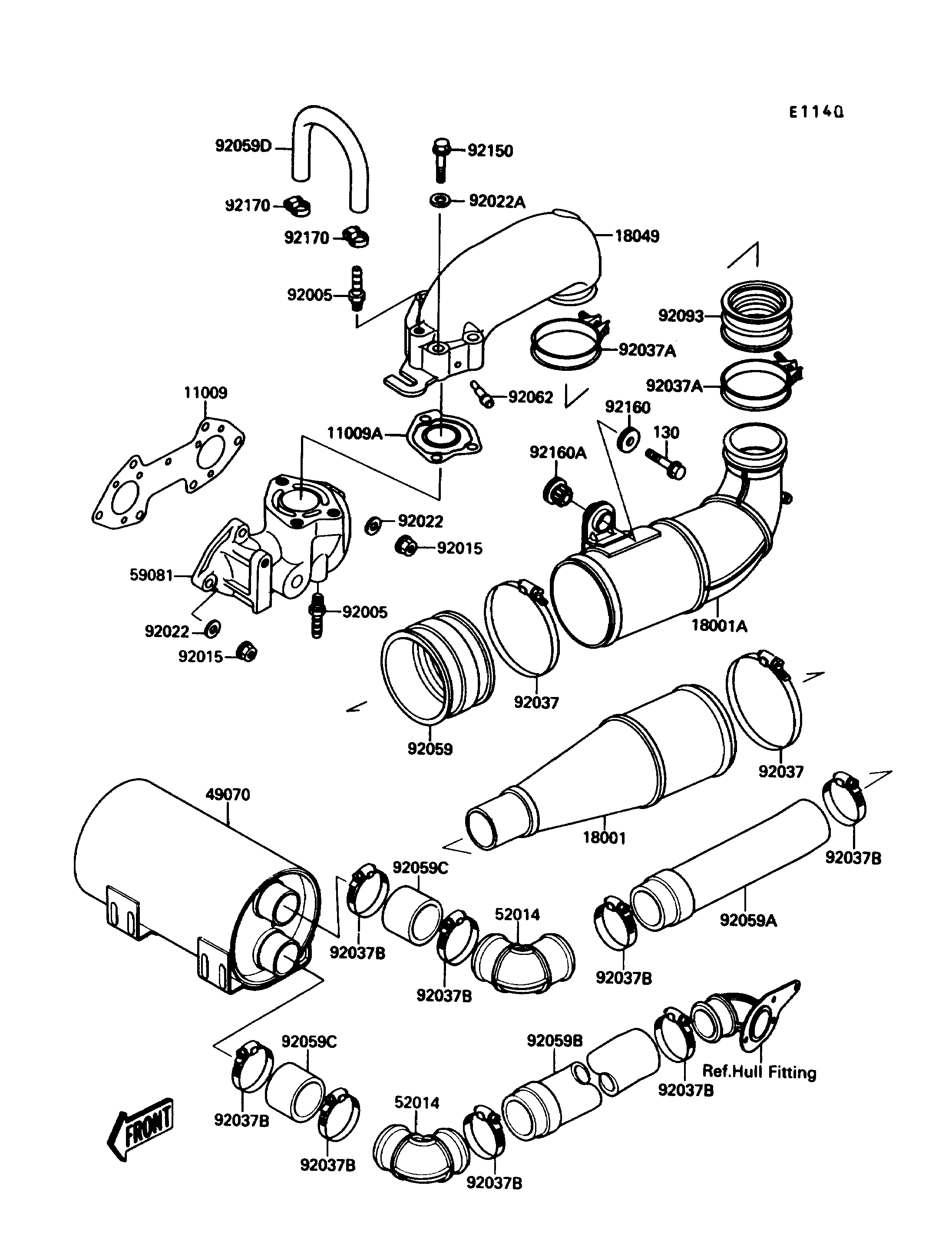

1989 X2 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11009
11009A
18001
18001A
18049
49070
52014
52014
59081
92005
92005
92015
92015
92022
92022
92022A
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92059
92059A
92059B
92059C
92059C
92059D
92062
92093
92150
92160
92160A
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130Z0845 1
GASKET,EXHAUST MANIFOLD 11009 11009-3722 1
GASKET,EXHAUST PIPE 11009A 11009-3752 1
MUFFLER,BODY 18001 18001-3716 1
MUFFLER 18001A 18001-3720 1
PIPE-EXHAUST 18049 18049-3713 1
MUFFLER-COMP 49070 49070-3711 1
ELBOW 52014 52014-3702 2
MANIFOLD-EXHAUST 59081 59081-3705 1
FITTING,HOSE 92005 92005-3001 2
NUT,8MM 92015 92015-3709 6
WASHER,8.2X18X1.5 92022 92022-1964 6
WASHER,10.2X20X1.5 92022A 92022-3742 3
CLAMP,MAX120.7MM 92037 92037-3733 2
CLAMP,68MM 92037A 92037-3740 2
CLAMP 92037B 92037-509 8
TUBE,MUFFLER CONNECTING 92059 92059-3767 1
TUBE 92059A 92059-3805 1
TUBE 92059B 92059-3806 1
TUBE 92059C 92059-3807 2
TUBE 92059D 92059-3816 1
NOZZLE 92062 92062-3705 1
SEAL 92093 92093-3705 1
BOLT,10X50 92150 92150-3723 3
DAMPER,MUFFLER 92160 92160-3701 1
DAMPER,MUFFLER MOUNT 92160A 92160-3702 1
CLAMP 92170 92170-3718 2
