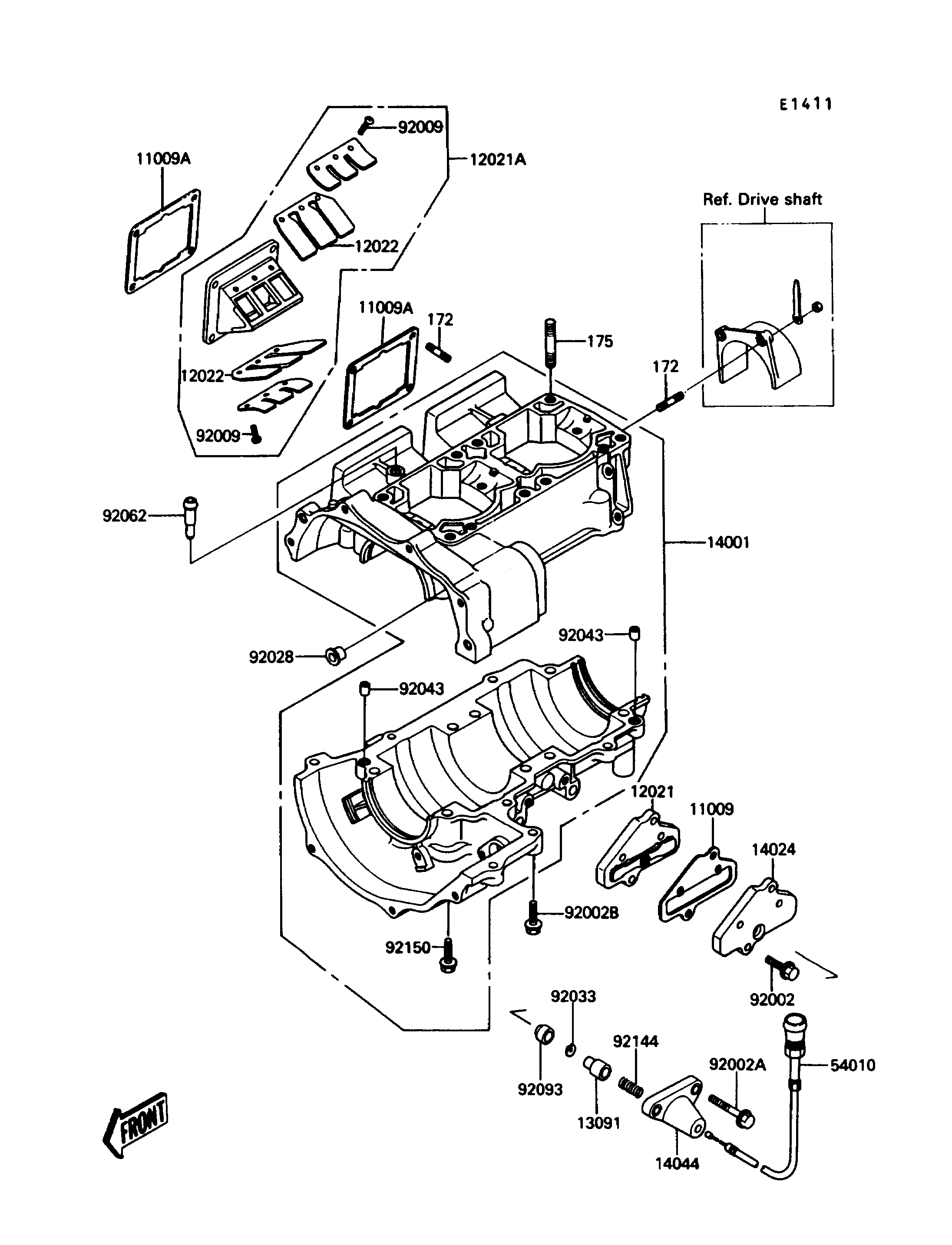

1989 X2 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
172
172
175
11009
11009A
11009A
12021
12021A
12022
12022
13091
14001
14024
14044
54010
92002
92002A
92002B
92009
92009
92028
92033
92043
92043
92062
92093
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-STUD 172 172R0620 10
BOLT-STUD-FINE 175 175R1035 8
GASKET,CONTROL VALVE 11009 11009-3728 1
GASKET,REED VALVE 11009A 11009-3731 4
VALVE-ASSY-REED,CONTROL 12021 12021-3703 1
VALVE-ASSY-REED 12021A 12021-3704 2
VALVE-REED 12022 12022-1001 4
HOLDER 13091 13091-3707 1
SET-CRANKCASE 14001 14001-3701 1
COVER,CONTROL VALVE 14024 14024-3716 1
HOLDER-CABLE 14044 14044-3702 1
CABLE,CONTROL 54010 54010-3702 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X45 92002A 92002-3717 2
BOLT,6X30 92002B 92002-3726 7
SCREW,REED VALVE 92009 92009-1014 12
BUSHING 92028 92028-3718 1
RING-SNAP 92033 92033-3708 1
PIN,DOWEL,10X14 92043 92043-1037 2
NOZZLE 92062 92062-3705 1
SEAL 92093 92093-3703 1
SPRING 92144 92144-3701 1
BOLT,8X65 92150 92150-3708 8
