551
551
14031
43056
92002
92002
92004
92028
92037
92037
92055
92055A

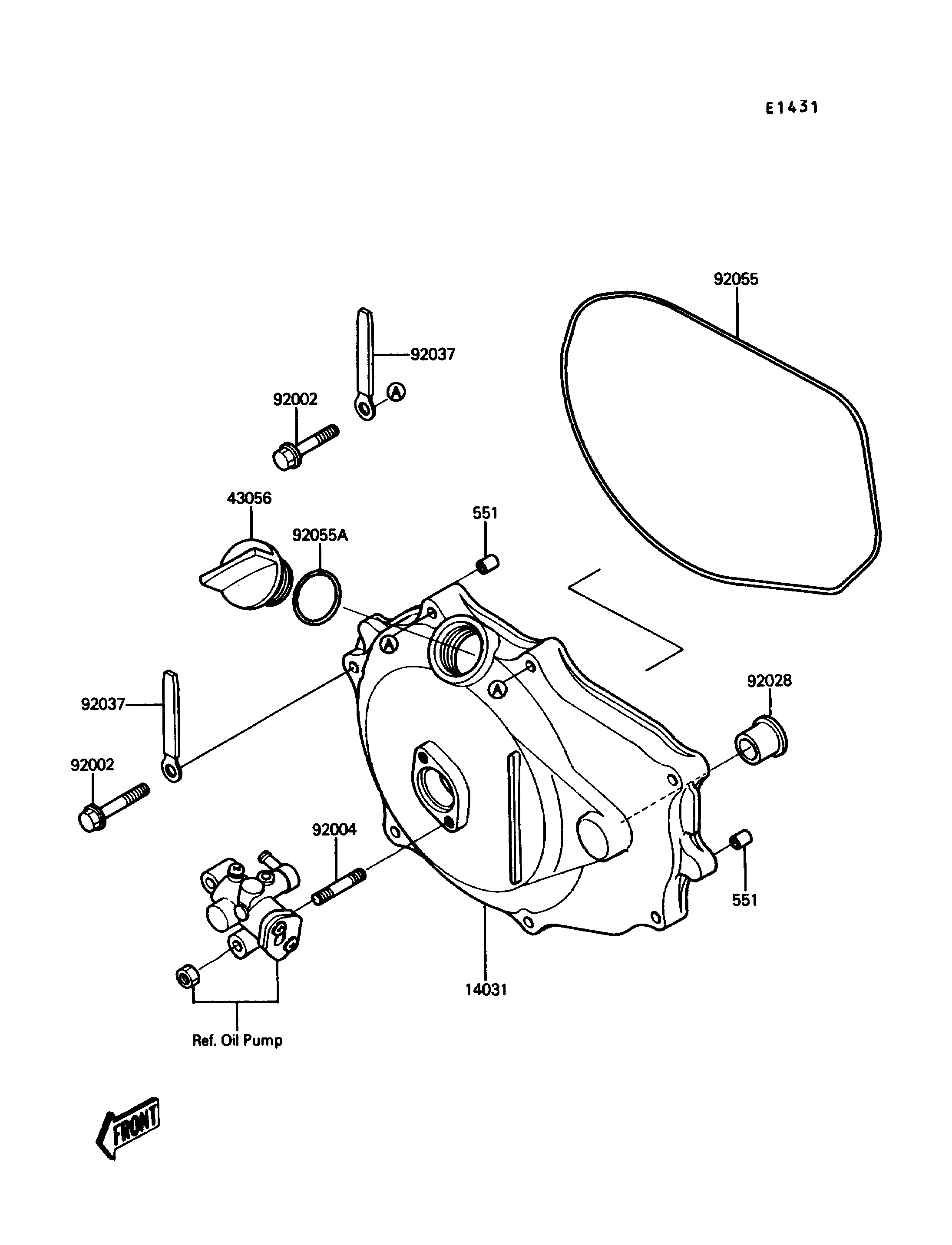

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-DOWEL 551 551R0812 2
COVER-GENERATOR 14031 14031-3707 1
BREATHER-BRAKE 43056 43056-502 1
BOLT,6X30 92002 92002-3726 7
STUD 92004 92004-3710 2
BUSHING 92028 92028-3718 1
CLAMP,L=100 92037 92037-3736 3
RING-O,GENERATOR COVER 92055 92055-3712 1
RING-O 92055A 92055-515 1
