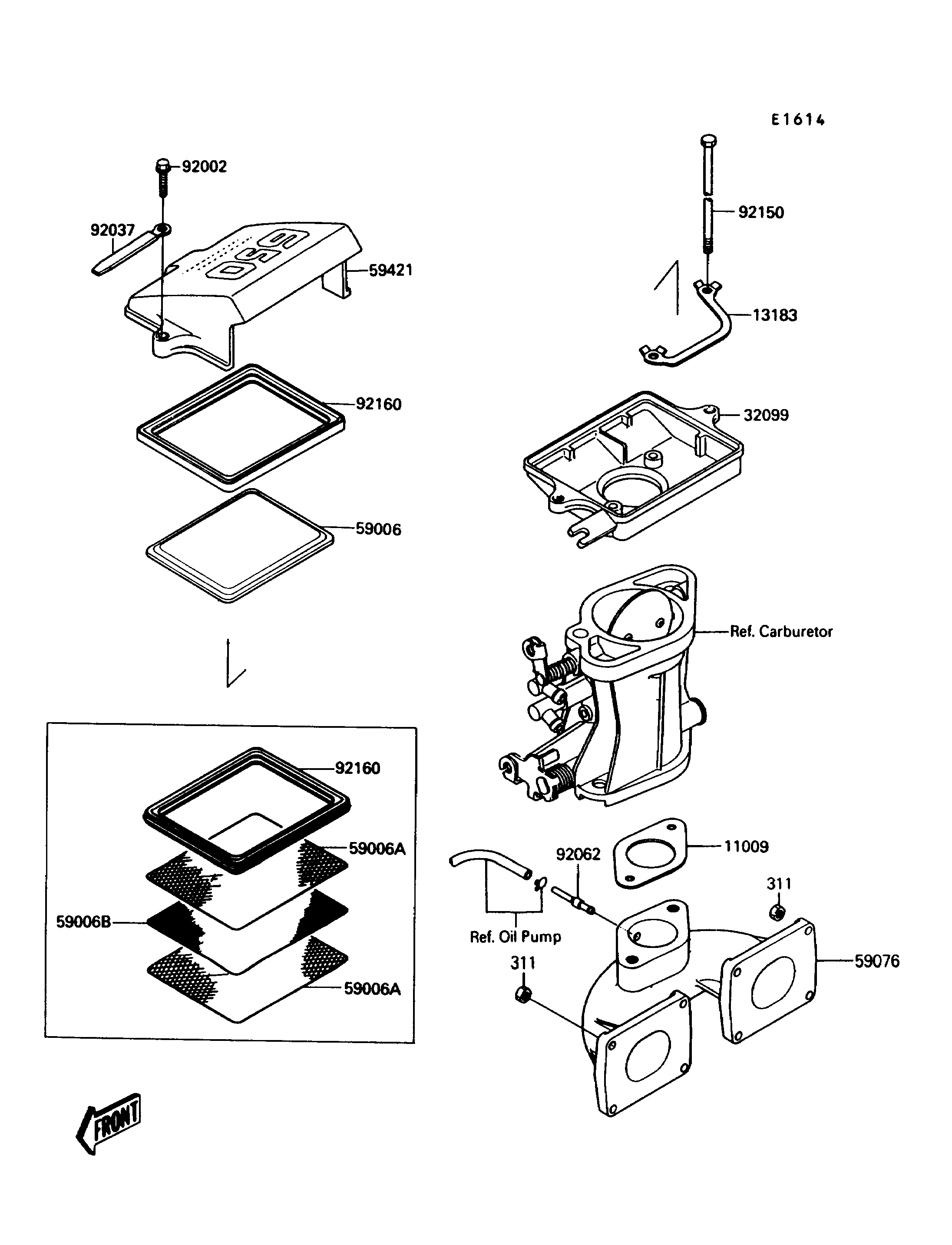

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311R0600 8
GASKET,CARBURETOR 11009 11009-3747 1
PLATE 13183 13183-3726 1
CASE,ARRESTER 32099 32099-3707 1
ARRESTER-FLAME 59006 59006-3702 1
MANIFOLD-INTAKE 59076 59076-3704 1
COVER-INTAKE 59421 59421-3710 1
BOLT,6X30 92002 92002-3726 2
CLAMP,L=100 92037 92037-3736 1
NOZZLE 92062 92062-3703 1
BOLT,6X113 92150 92150-3724 2
DAMPER 92160 92160-3704 1
