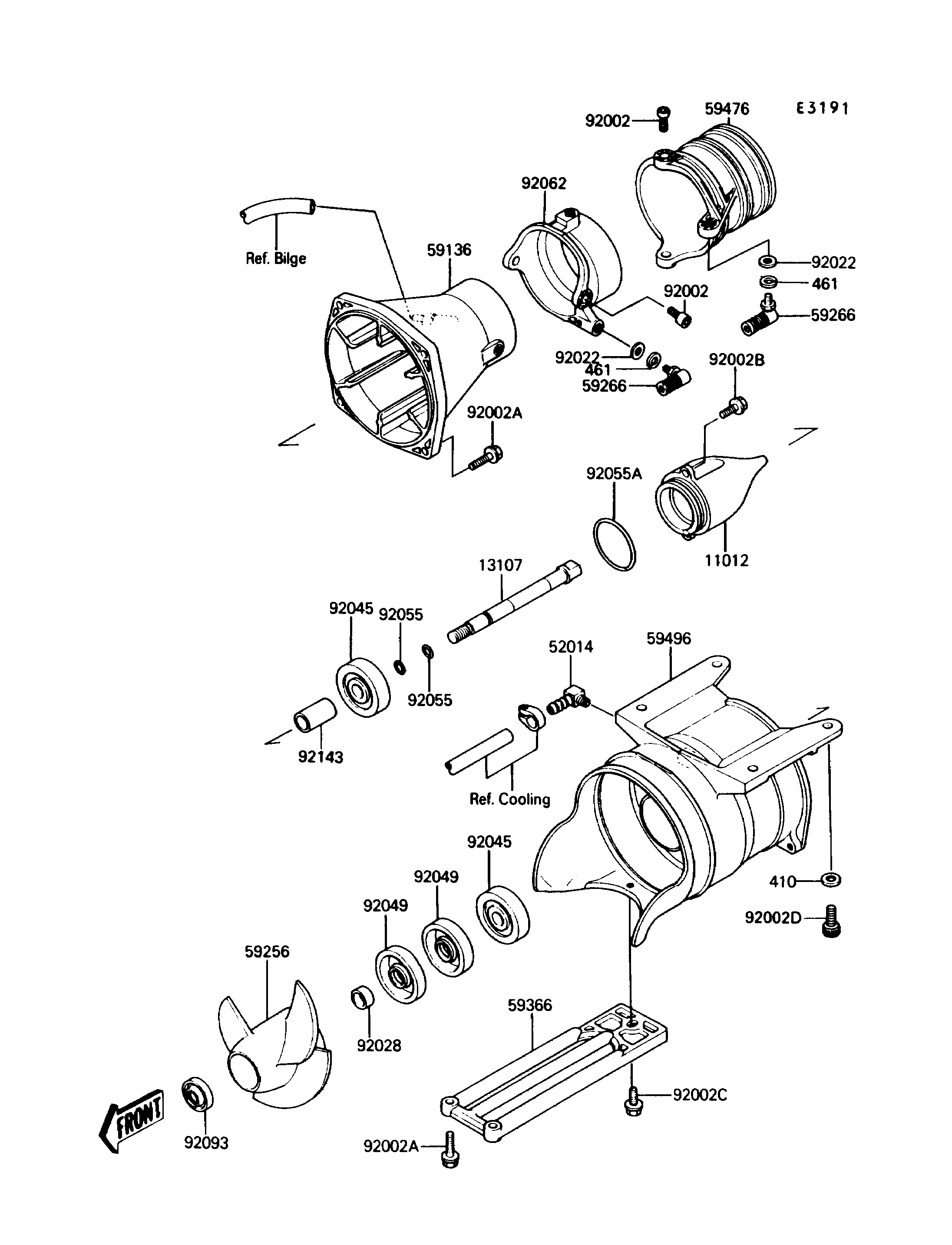

1989 X2 - Jet Pump

DOWNLOAD PDF
SELECT A NEW PART
410
461
461
11012
13107
52014
59136
59256
59266
59266
59366
59476
59496
92002
92002
92002A
92002A
92002B
92002C
92002D
92022
92022
92028
92045
92045
92049
92049
92055
92055
92055A
92062
92093
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,8MM 410 410S0800 4
WASHER-SPRING,6MM 461 461S0600 2
CAP,JET PUMP 11012 11012-3712 1
SHAFT,JET PUMP 13107 13107-3708 1
ELBOW 52014 52014-3002 1
NOZZLE-PUMP 59136 59136-3712 1
IMPELLER 59256 59256-3705 1
JOINT-BALL 59266 59266-3701 2
GRATE 59366 59366-3702 1
NOZZLE-STRG 59476 59476-3701 1
VANE-GUIDE 59496 59496-3701 1
BOLT,SOCKET,6X11 92002 92001-3701 4
BOLT,6X25 92002A 92002-3714 6
BOLT,6X16 92002B 92002-3728 2
BOLT,6X12 92002C 92002-3763 1
BOLT,SOCKET,8X20 92002D 92002-3771 4
WASHER 92022 92022-567 2
BUSHING,17X25X15 92028 92028-3717 1
BEARING-BALL,#63032RD 92045 92045-3706 2
SEAL-OIL,S625476 92049 92049-3708 2
RING-O,13X1.9 92055 92055-1021 2
RING-O 92055A 92055-3706 1
NOZZLE 92062 92062-3706 1
SEAL 92093 92093-3702 1
COLLAR,17.4X25.4X53 92143 92143-3708 1
