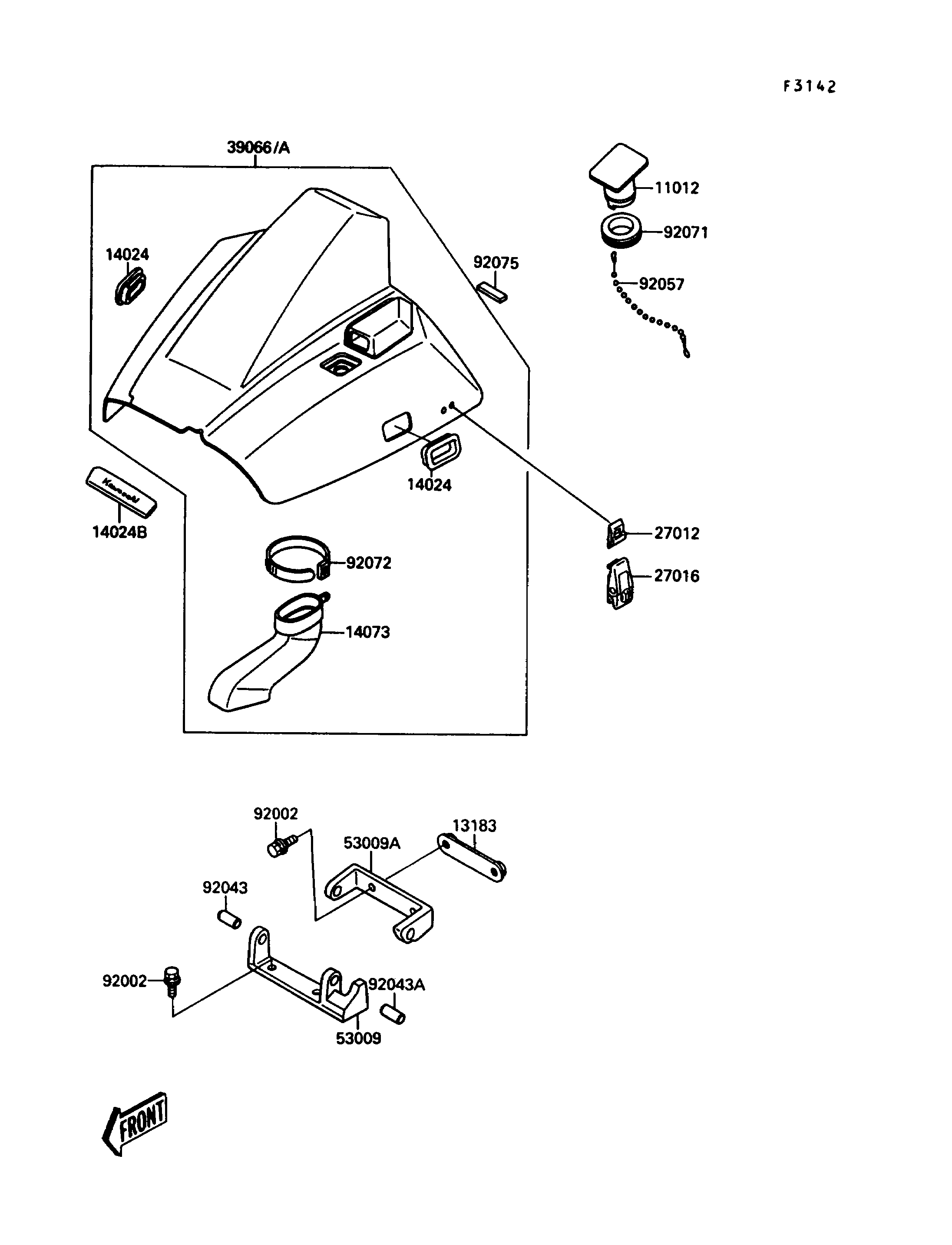

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11012
13183
14024
14024
14024B
14073
27012
27016
39066
53009
53009A
92002
92002
92043
92043A
92057
92071
92072
92075
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,ENGINE HOOD,JET WHITE | 11012 | 11012-3711-8C | 2 | ||
PLATE | 13183 | 13183-3706 | 1 | ||
COVER,ENGINE HOOD,JET WHITE | 14024 | 14024-3714-8C | 2 | ||
COVER,ENGINE HOOD,FR | 14024B | 14024-3740 | 1 | ||
DUCT,ENGINE HOOD | 14073 | 14073-3707 | 1 | ||
HOOK,ENGINE HOOD LOCK | 27012 | 27012-3719 | 2 | ||
LOCK-ASSY,ENGINE HOOD | 27016 | 27016-3706 | 2 | ||
HOOD-ASSY-ENGINE,J.WHITE | 39066 | 39066-3705-8C | 1 | ||
HINGE,DECK | 53009 | 53009-3703 | 1 | ||
HINGE,ENGINE HOOD | 53009A | 53009-3704 | 1 | ||
BOLT,8X25 | 92002 | 92002-3774 | 4 | ||
PIN,10X23 | 92043 | 92043-3710 | 1 | ||
PIN,10X25 | 92043A | 92043-3711 | 1 | ||
CHAIN,COVER,L=250 | 92057 | 92057-3701 | 2 | ||
GROMMET,ENGINE HOOD | 92071 | 92071-3731 | 2 | ||
BAND,L=225 | 92072 | 92072-1174 | 1 | ||
DAMPER | 92075 | 92075-3757 | 2 |
