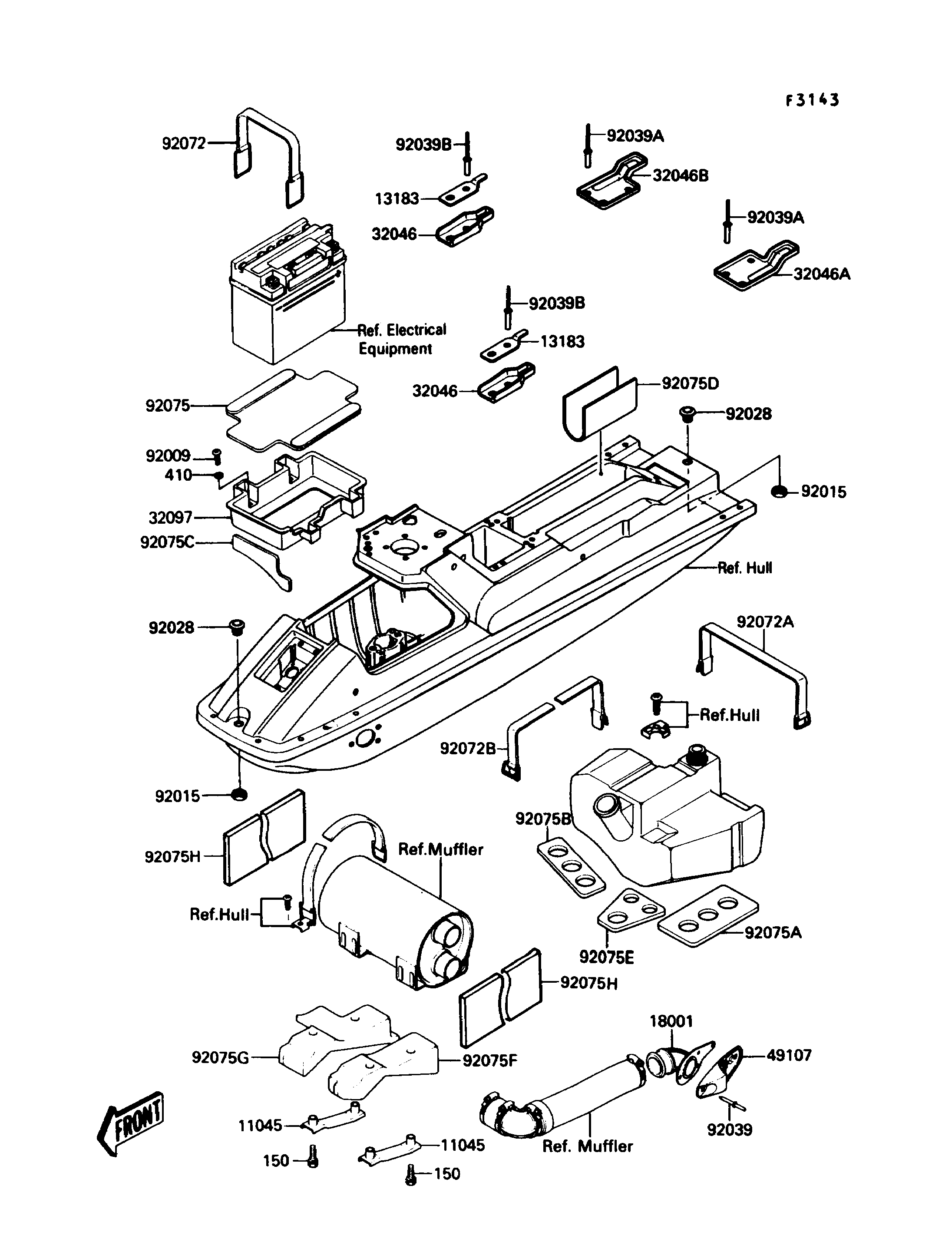

1989 X2 - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
150
150
410
11045
11045
13183
13183
18001
32046
32046
32046A
32046B
32097
49107
92009
92015
92015
92028
92028
92039
92039A
92039A
92039B
92039B
92072
92072A
92072B
92075
92075A
92075B
92075C
92075D
92075E
92075F
92075G
92075H
92075H
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS,6X22 150 150R0622 4
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
BRACKET,WATER MUFFLER 11045 11045-3763 2
PLATE,SEAT,FR 13183 13183-3721 2
MUFFLER,TAIL 18001 18001-3719 1
BRACKET-SEAT,FR 32046 32046-3704 2
BRACKET-SEAT,CNT,LH 32046A 32046-3705 1
BRACKET-SEAT,CNT,RH 32046B 32046-3706 1
CASE-BATTERY 32097 32097-3702 1
COVER-EXHAUST PIPE 49107 49107-3703 1
SCREW,TAPPING 92009 92011-561 4
NUT 92015 92015-3779 2
BUSHING 92028 92028-3734 2
RIVET 92039 92039-3002 4
RIVET 92039A 92039-3714 6
RIVET 92039B 92039-3730 4
BAND,BATTERY,L=366 92072 92072-3706 2
BAND,L=544 92072A 92072-3709 1
BAND,L=479 92072B 92072-3712 1
DAMPER,BATTERY 92075 92075-3714 1
DAMPER,FUEL TANK,LH 92075A 92075-3727 1
DAMPER,FUEL TANK,RH 92075B 92075-3729 1
DAMPER,FUEL TANK 92075C 92075-3738 1
DAMPER,FIRE EXTINGUISHER 92075D 92075-3750 1
DAMPER,FUEL TANK 92075E 92075-3751 1
DAMPER,WATER MUFFLER,LH 92075F 92075-3761 1
DAMPER,WATER MUFFLER,RH 92075G 92075-3762 1
DAMPER,MUFFLER 92075H 92075-522 2
