Parts Diagrams |
155
155
39082
92002
92002A
92002A
92022
92022
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92075
92075

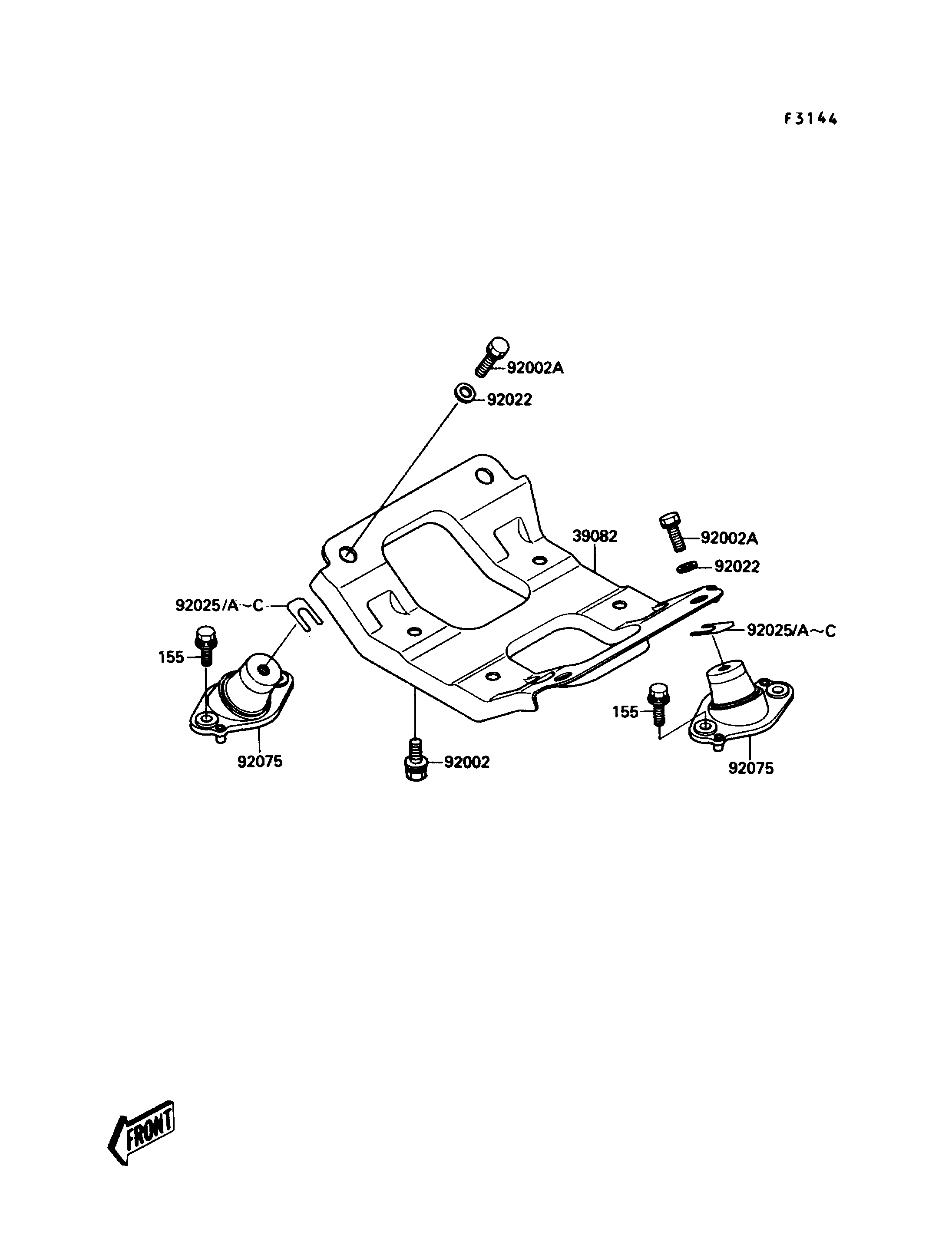

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-WSP-SMALL,8X20 | 155 | 155R0820 | 8 | ||
MOUNT-ENGINE | 39082 | 39082-3705 | 1 | ||
BOLT,10X25 | 92002 | 92002-3765 | 4 | ||
BOLT,10X25 | 92002A | 92002-3770 | 4 | ||
WASHER,32X10.5X4 | 92022 | 92022-3023 | 4 | ||
SHIM,T=0.3MM | 92025 | 92025-3705 | AR | ||
SHIM,T=0.5MM | 92025A | 92025-3706 | AR | ||
SHIM,T=1.0MM | 92025B | 92025-3707 | AR | ||
SHIM,T=1.5MM | 92025C | 92025-3708 | AR | ||
DAMPER,ENGINE MOUNT | 92075 | 92075-3724 | 4 |
BOLT-WSP-SMALL,8X20 | |
REF # | 155 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
MOUNT-ENGINE | |
REF # | 39082 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X25 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,10X25 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,32X10.5X4 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SHIM,T=0.3MM | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.5MM | |
REF # | 92025A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.0MM | |
REF # | 92025B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.5MM | |
REF # | 92025C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
DAMPER,ENGINE MOUNT | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
