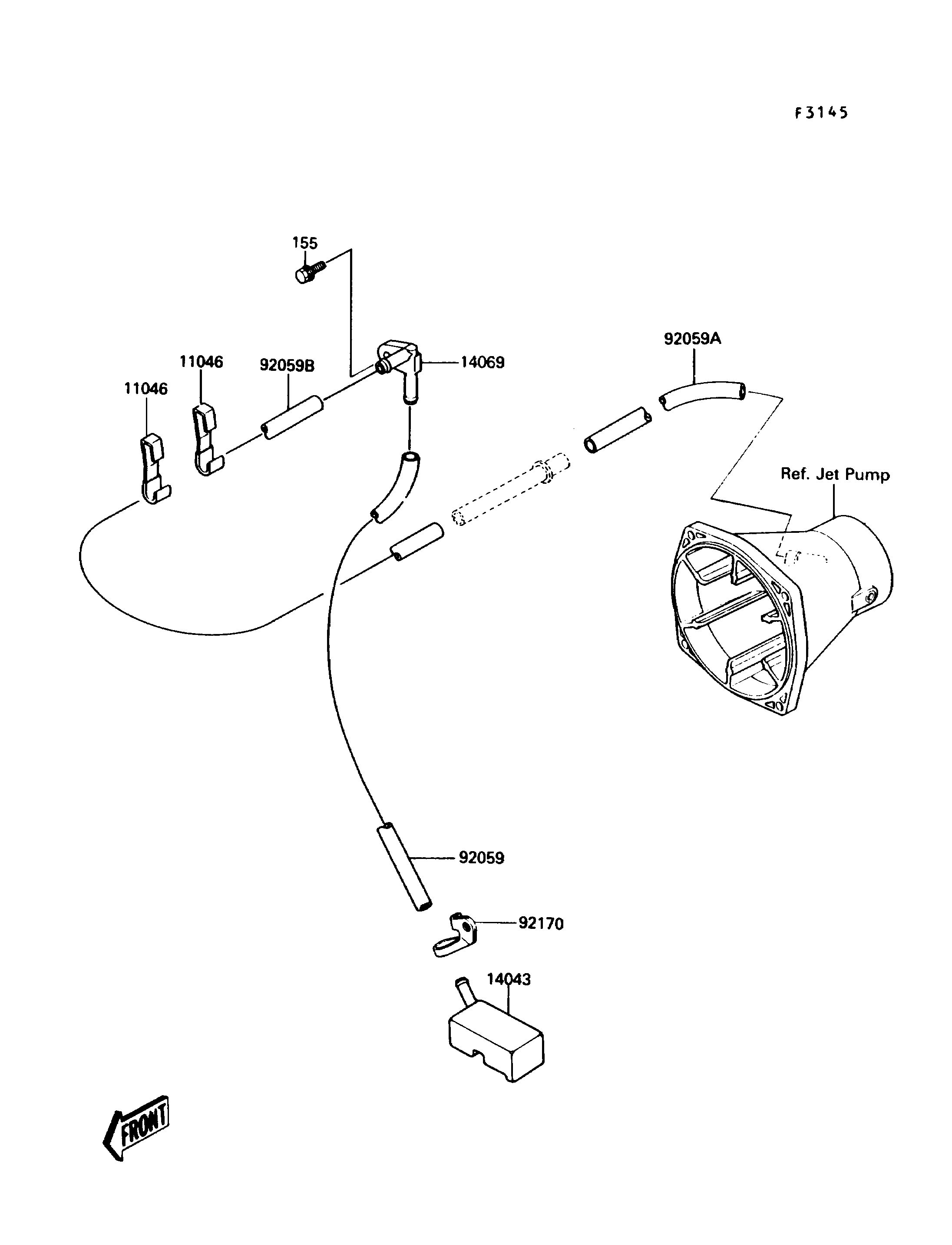

155
11046
11046
14043
14069
92059
92059A
92059B
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WSP-SMALL,8X25 155 155R0825 1
BRACKET,CLAMP 11046 11046-3817 3
FILTER,BILGE 14043 14043-3703 1
BREATHER,BILGE 14069 14069-3705 1
TUBE,15.5X21.5X280 92059 92059-3855 1
TUBE,L=200 92059A 92059-3894 1
TUBE,15.5X21.5X380 92059B 92059-3895 1
CLAMP,BILGE FILTER 92170 92170-3717 1
