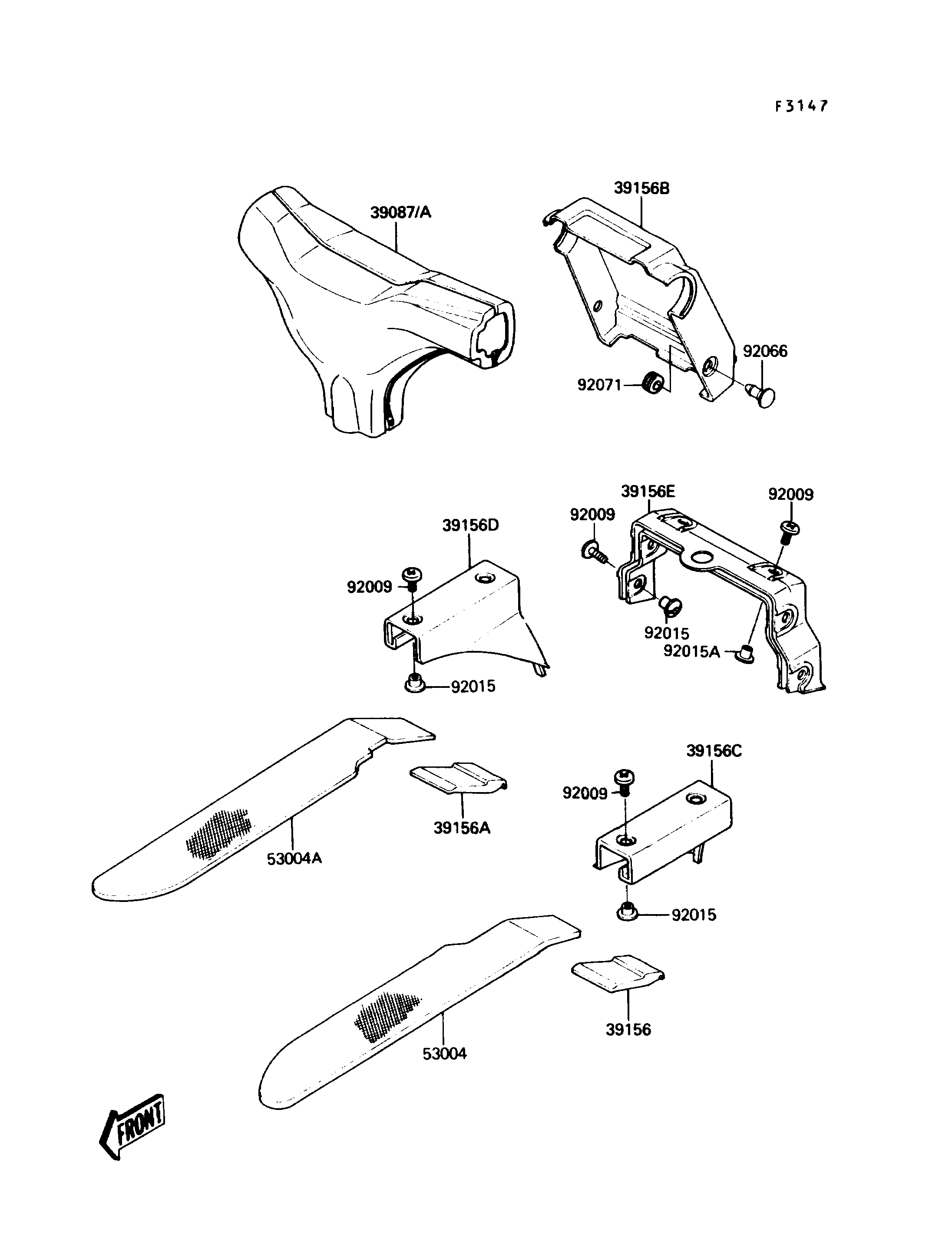

Parts Diagrams |
39087
39156
39156A
39156B
39156C
39156D
39156E
53004
53004A
92009
92009
92009
92009
92015
92015
92015
92015A
92066
92071
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PAD-HANDLE | 39087 | 39087-3708 | 1 | ||
PAD,DECK,LH | 39156 | 39156-3709 | 1 | ||
PAD,DECK,RH | 39156A | 39156-3710 | 1 | ||
PAD,DECK,BLUE | 39156B | 39156-3711-BF | 1 | ||
PAD,LH | 39156C | 39156-3712 | 1 | ||
PAD,RH | 39156D | 39156-3713 | 1 | ||
PAD,CNT | 39156E | 39156-3738 | 1 | ||
MAT,DECK,LH | 53004 | 53004-3716 | 1 | ||
MAT,DECK,RH | 53004A | 53004-3717 | 1 | ||
SCREW,6X11 | 92009 | 92009-1562 | 10 | ||
NUT,6MM,L=9 | 92015 | 92015-3733 | 8 | ||
NUT,6MM,L=13 | 92015A | 92015-3747 | 2 | ||
PLUG,DECK PAD,BLUE | 92066 | 92066-3707-BF | 2 | ||
GROMMET | 92071 | 92071-3735 | 2 |
PAD-HANDLE | |
REF # | 39087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,DECK,LH | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,DECK,RH | |
REF # | 39156A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,DECK,BLUE | |
REF # | 39156B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,LH | |
REF # | 39156C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,RH | |
REF # | 39156D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,CNT | |
REF # | 39156E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MAT,DECK,LH | |
REF # | 53004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MAT,DECK,RH | |
REF # | 53004A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X11 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
NUT,6MM,L=9 | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,6MM,L=13 | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,DECK PAD,BLUE | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
