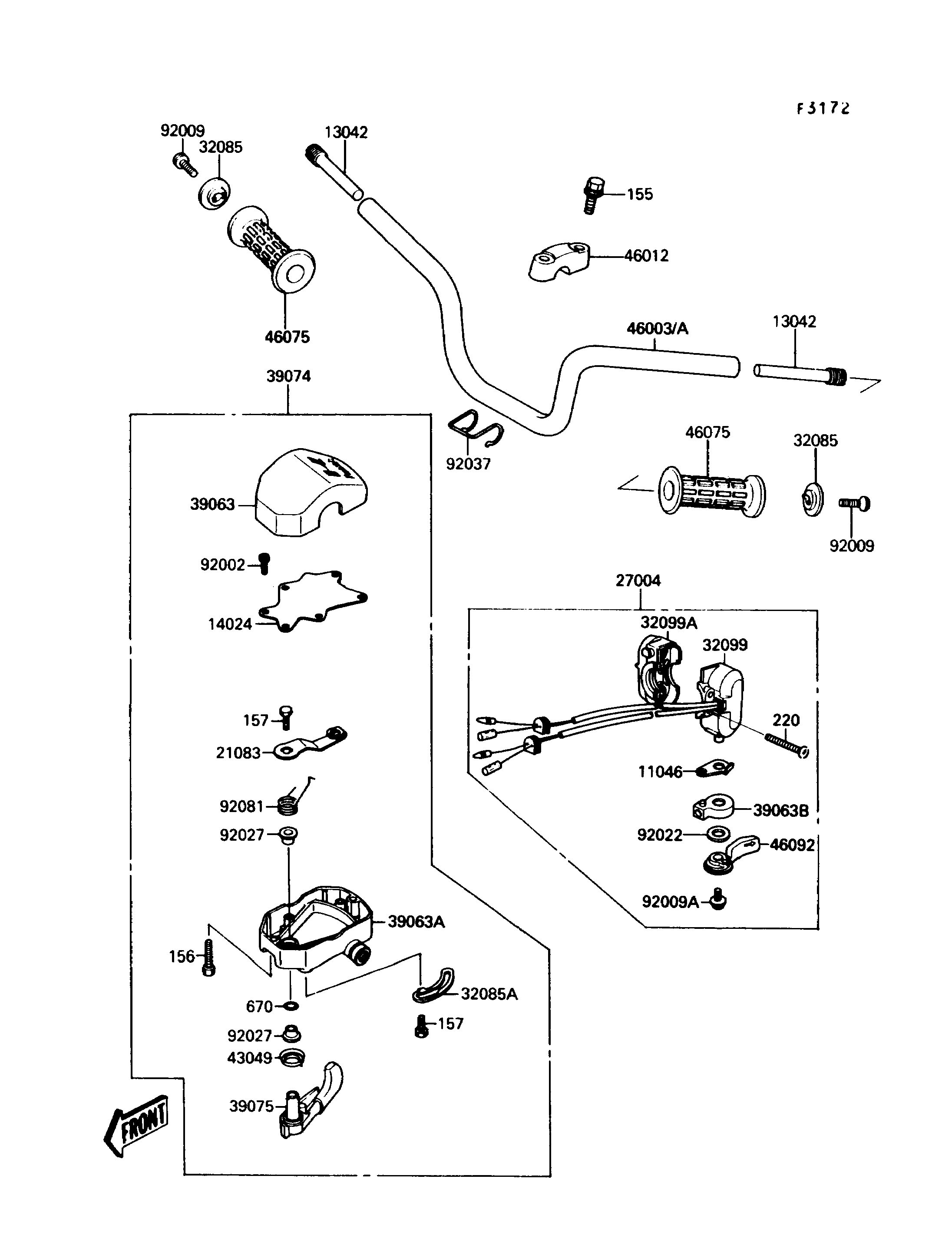

1989 X2 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
155
156
157
157
220
670
11046
13042
13042
14024
21083
27004
32085
32085
32085A
32099
32099A
39063
39063A
39063B
39074
39075
43049
46003
46012
46075
46075
46092
92002
92009
92009
92009A
92022
92027
92027
92037
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WSP-SMALL,8X35 155 155R0835 4
BOLT-WP,5X25 156 156R0525 2
BOLT-WSP,5X12 157 157R0512 2
SCREW-PAN-CROS,5X30 220 220R0530 2
O RING,8MM 670 670B1508 1
BRACKET 11046 11046-3707 1
WEIGHT,HANDLE 13042 13042-3701 2
COVER,THROTTLE LEVER 14024 14024-3701 1
ARM,THROTTLE LEVER 21083 21083-3701 1
SWITCH-ASSY 27004 27004-3710 1
STOPPER 32085 32085-3705 2
STOPPER 32085A 32085-3709 1
CASE,RR,SWITCH 32099 32099-3720 1
CASE,FR,SWITCH 32099A 32099-3721 1
HOUSING-CONTROL,UPP 39063 39063-3703 1
HOUSING-CONTROL,LWR 39063A 39063-3707 1
HOUSING-CONTROL,STARTER CABLE 39063B 39063-3712 1
LEVER-ASSY-THROTTLE 39074 39074-3711 1
LEVER-THROTTLE 39075 39075-3704 1
PACKING,THROTTLE LEVER 43049 43049-3701 1
HANDLE 46003 46003-3707 1
HOLDER-HANDLE,UPP 46012 46012-3713 2
GRIP,HANDLEBAR 46075 46075-3713 2
LEVER-GRIP,STARTER 46092 46092-1116 1
BOLT,SOCKET,3X10 92002 92002-3751 6
SCREW,6X16 92009 92009-3703 2
SCREW,5X10 92009A 92009-3713 1
WASHER,WAVE 92022 92022-3735 1
COLLAR,THROTTLE LEVER 92027 92027-3704 2
CLAMP,CABLE 92037 92037-3734 1
SPRING,THROTTLE LEVER RETURN 92081 92081-3702 1
