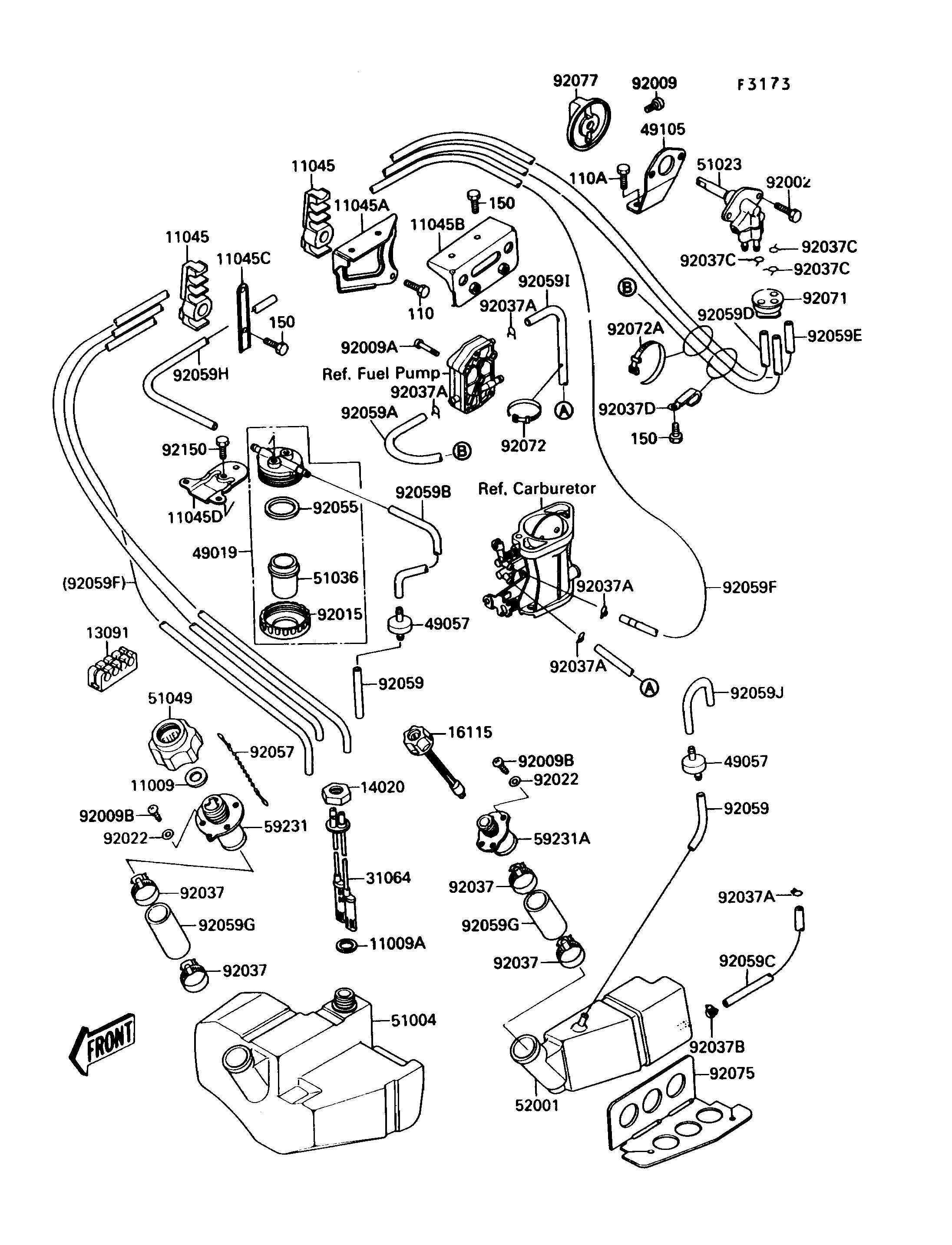

1989 X2 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
11009A
11045
11045
11045
11045
11045A
11045A
11045B
11045B
11045C
11045C
11045D
11045D
13091
13091
14020
14020
16115
16115
31064
31064
49019
49019
49057
49057
49057
49057
49105
49105
51004
51004
51023
51023
51036
51036
51049
51049
52001
52001
59231
59231
59231A
59231A
92002
92002
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92015
92015
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037C
92037C
92037C
92037C
92037C
92037C
92037D
92037D
92055
92055
92057
92057
92059
92059
92059
92059
92059A
92059A
92059B
92059B
92059C
92059C
92059D
92059D
92059E
92059E
110
110
110A
110A
150
150
150
150
150
150
92059F
92059F
92059G
92059G
92059G
92059G
92059H
92059H
92059I
92059I
92059J
92059J
92071
92071
92072
92072
92072A
92072A
92075
92075
92077
92077
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET 11009A 92065-504 1
BRACKET,FUEL PIPE 11045 11044-3718 3
BRACKET,FUEL PUMP 11045A 11044-3719 1
BRACKET,FUEL PUMP 11045B 11045-3702 1
BRACKET 11045C 11045-3757 1
BRACKET 11045D 11045-3760 1
HOLDER,FUEL PIPE 13091 13091-3709 1
RETAINER 14020 23072-501 1
CAP-OIL FILLER 16115 16115-3705 1
PIPE-COMP,FUEL 31064 31064-3707 1
FILTER-FUEL 49019 49019-3706 1
VALVE-RELIEF 49057 49057-3001 2
BRACKET-TAP 49105 49105-3704 1
TANK-FUEL 51004 51004-3704 1
TAP-ASSY,FUEL 51023 51023-3703 1
CUP,FUEL FILTER 51036 51036-3702 1
CAP-TANK,FUEL 51049 51049-3705 1
TANK-OIL 52001 52001-3704 1
FILLER,FUEL TANK 59231 59231-3702 1
FILLER,OIL TANK 59231A 59231-3703 1
BOLT,5X16 92002 92002-3747 2
SCREW,4X8 92009 92009-3729 1
SCREW,6X40 92009A 92009-3735 2
SCREW 92009B 92011-562 8
NUT,RING 92015 92015-3013 1
WASHER 92022 92022-563 8
CLAMP 92037 92037-3009 4
CLAMP 92037A 92037-1173 16
CLAMP 92037B 92037-3726 1
CLAMP 92037C 92037-3727 3
CLAMP,L=100 92037D 92037-3736 1
RING-O,FILTER CUP 92055 92055-3006 1
CHAIN,COVER,L=100 92057 92057-3704 1
TUBE,5.8X12.2X55 92059 92059-3026 2
TUBE,5.8X700 92059A 92059-3720 1
TUBE,5.8X10.8X200 92059B 92059-3721 1
TUBE,5.8X10.8X360 92059C 92059-3743 1
TUBE,"RES",5.8X1400 92059D 92059-3744 1
TUBE,"ON",5.8X1400 92059E 92059-3745 1
BOLT,6X12 110 110R0612 2
BOLT,6X16 110A 110R0616 2
BOLT-WS,6X12 150 150R0612 5
TUBE 92059F 92059-3764 1
TUBE,45X53X75 92059G 92059-3751 2
TUBE,5.8X10.8X1260 92059H 92059-3770 1
TUBE,5.8X10.8X330 92059I 92059-3794 1
TUBE 92059J 92059-3802 1
GROMMET 92071 92071-3745 1
BAND,L=123 92072 92072-030 1
BAND,L=186 92072A 92072-056 1
DAMPER 92075 92075-3728 1
KNOB,FUEL TAP 92077 92077-3704 1
BOLT,6X12 92150 92150-3709 2
