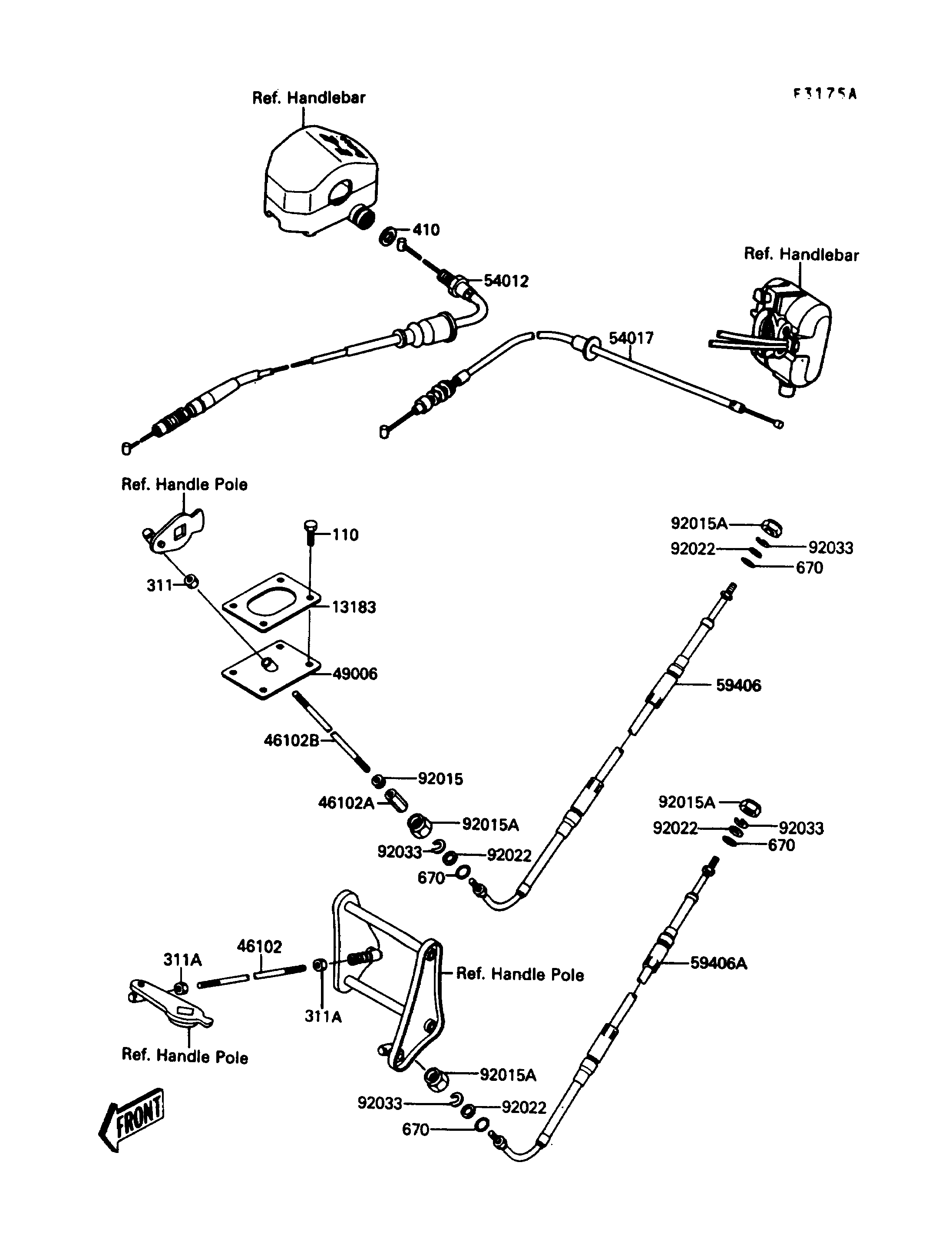

Parts Diagrams |
110
311
311A
311A
410
670
670
670
670
13183
46102
46102A
46102B
49006
54012
54017
59406
59406A
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92033
92033
92033
92033
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,5X16 | 110 | 110R0516 | 4 | ||
| NUT-HEX,5MM | 311 | 311R0500 | 1 | ||
| NUT-HEX,6MM | 311A | 311R0600 | 2 | ||
| W-PLAIN-S,10MM | 410 | 410S1000 | 1 | ||
| O RING,11MM | 670 | 670B2011 | 4 | ||
| PLATE | 13183 | 13169-3713 | 1 | ||
| ROD,STEERING,6X190 | 46102 | 46102-3704 | 1 | ||
| ROD,L=40 | 46102A | 46102-3706 | 1 | ||
| ROD,5X125 | 46102B | 46102-3707 | 1 | ||
| BOOT | 49006 | 49006-3706 | 1 | ||
| CABLE-THROTTLE | 54012 | 54012-3715 | 1 | ||
| CABLE-STARTER | 54017 | 54017-3714 | 1 | ||
| CABLE-STRG,UP&DOWN | 59406 | 59406-3711 | 1 | ||
| CABLE-STRG | 59406A | 59406-3712 | 1 | ||
| NUT,5MM | 92015 | 92015-3754 | 1 | ||
| NUT,20MM | 92015A | 92015-526 | 4 | ||
| WASHER | 92022 | 92022-535 | 4 | ||
| RING-SNAP | 92033 | 92036-501 | 4 |
| BOLT,5X16 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,5MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| W-PLAIN-S,10MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,11MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,STEERING,6X190 | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,L=40 | |
| REF # | 46102A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,5X125 | |
| REF # | 46102B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-THROTTLE | |
| REF # | 54012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STARTER | |
| REF # | 54017 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STRG,UP&DOWN | |
| REF # | 59406 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STRG | |
| REF # | 59406A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
