Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

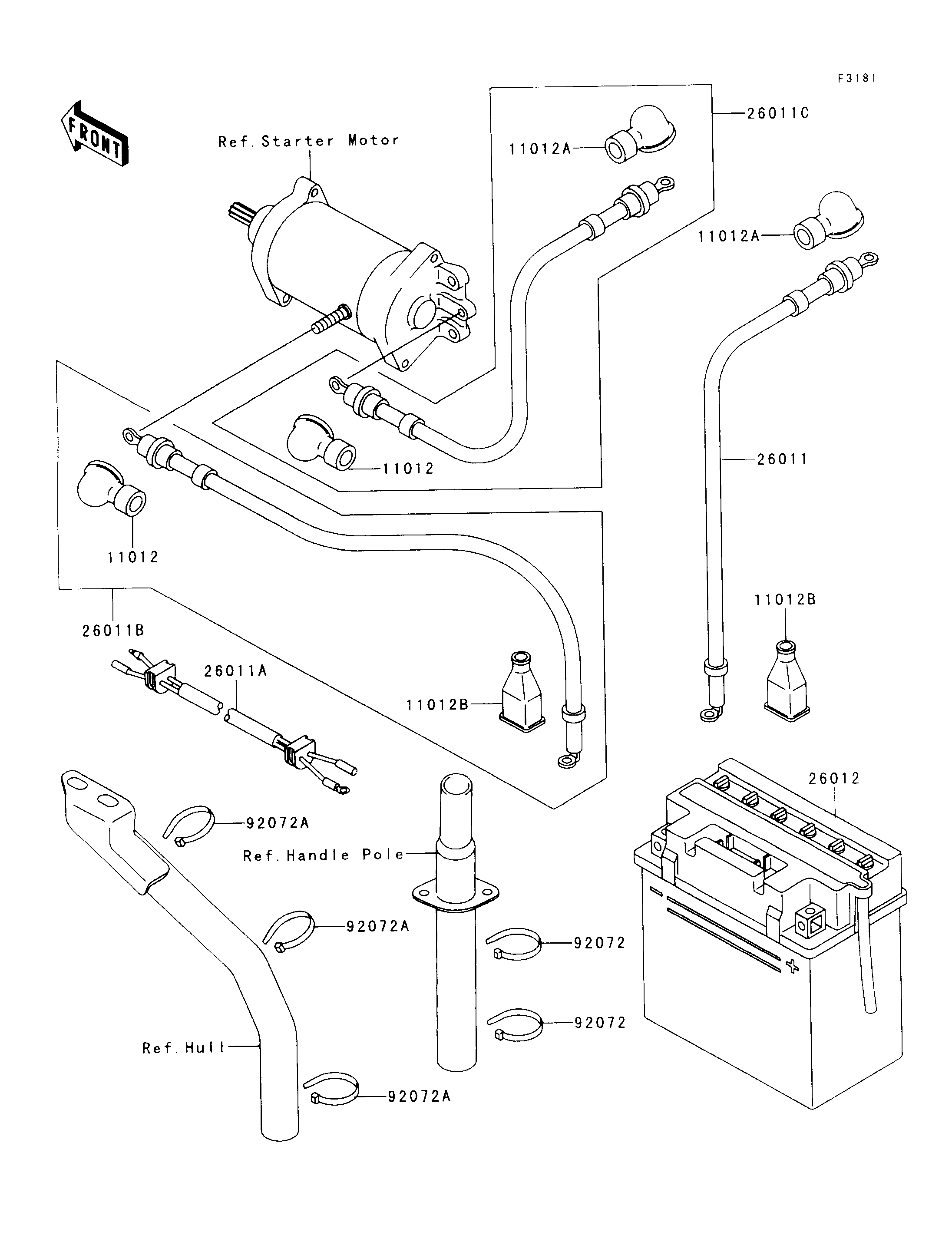

11012
11012
11012A
11012A
11012B
11012B
26011
26011A
26011B
26011C
26012
92072
92072
92072A
92072A
92072A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-3004 | 2 | ||
CAP,LEAD WIRE | 11012A | 11012-3726 | 2 | ||
CAP.,TERMINAL | 11012B | 59176-501 | 2 | ||
WIRE-LEAD,BATTERY(+) | 26011 | 26011-3709 | 1 | ||
WIRE-LEAD,REGULATOR | 26011A | 26011-3723 | 1 | ||
WIRE-LEAD,BATTERY(-) | 26011B | 26011-3724 | 1 | ||
WIRE-LEAD,STARTER | 26011C | 26011-3741 | 1 | ||
BATTERY,YB16CL-B,12V 19AH | 26012 | 26012-3707 | 1 | ||
BAND,L=149 | 92072 | 92072-031 | 2 | ||
BAND,L=203.2 | 92072A | 92072-3505 | 3 |
