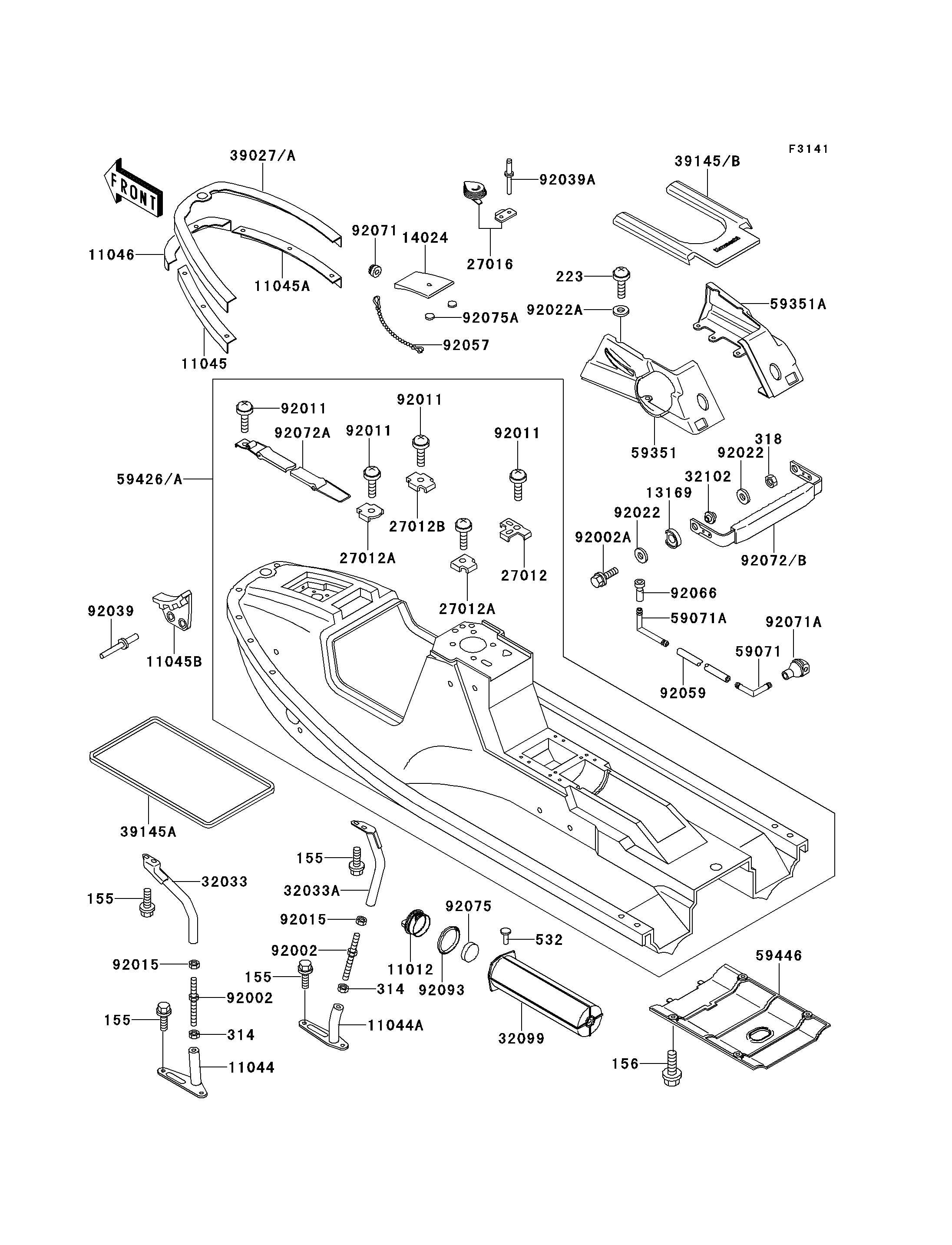

Parts Diagrams |
11012
11012
11044
11044
11044A
11044A
11045
11045
11045A
11045A
11045B
11045B
11046
11046
13169
13169
14024
14024
27012
27012
27012A
27012A
27012A
27012A
27012B
27012B
27016
27016
32033
32033
32033A
32033A
32099
32099
32102
32102
39027
39027
39145
39145
39145A
39145A
59071
59071
59071A
59071A
59351
59351
59351A
59351A
59426
59426
59446
59446
92002
92002
92002
92002
92002A
92002A
92011
92011
92011
92011
92011
92011
92011
92011
92015
92015
92015
92015
92022
92022
92022
92022
92022A
92022A
92039
92039
92039A
92039A
92057
92057
92059
92059
155
155
155
155
155
155
155
155
156
156
223
223
314
314
314
314
318
318
532
532
92066
92066
92071
92071
92071A
92071A
92072
92072
92072A
92072A
92075
92075
92075A
92075A
92093
92093
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-3708 | 1 | ||
BRACKET,DECK,LH | 11044 | 11044-3710 | 1 | ||
BRACKET,DECK,RH | 11044A | 11044-3711 | 1 | ||
BRACKET,BUMPER,LH | 11045 | 11045-3711 | 1 | ||
BRACKET,BUMPER,RH | 11045A | 11045-3712 | 1 | ||
BRACKET | 11045B | 11045-3755 | 1 | ||
BRACKET,BUMPER,CNT | 11046 | 11046-3818 | 1 | ||
PLATE | 13169 | 13169-3714 | 2 | ||
COVER,TANK CAP,JET WHITE | 14024 | 14024-3731-8C | 1 | ||
HOOK | 27012 | 27012-3705 | 1 | ||
HOOK | 27012A | 27012-501 | 2 | ||
HOOK | 27012B | 27012-502 | 1 | ||
LOCK-ASSY,TANK CAP COVER | 27016 | 27016-3705 | 1 | ||
PIPE,DECK,LH | 32033 | 32033-3718 | 1 | ||
PIPE,DECK,RH | 32033A | 32033-3719 | 1 | ||
CASE,FIRE EXT. | 32099 | 32099-3705 | 1 | ||
PIPE | 32102 | 32102-3704 | 2 | ||
BUMPER-FRONT | 39027 | 39027-3710 | 1 | ||
TRIM-SEAL,DECK | 39145 | 39145-3702 | 1 | ||
TRIM-SEAL | 39145A | 39145-3726 | 1 | ||
JOINT | 59071 | 59071-3706 | 1 | ||
JOINT | 59071A | 59071-3733 | 1 | ||
DECK,LH,JET WHITE | 59351 | 59351-3708-8C | 1 | ||
DECK,RH,JET WHITE | 59351A | 59351-3709-8C | 1 | ||
HULL-COMP,JET WHITE | 59426 | 59426-3781-8C | 1 | ||
COVER-JET PUMP | 59446 | 59446-3703 | 1 | ||
BOLT,10MM | 92002 | 92002-3731 | 2 | ||
BOLT,8X30 | 92002A | 92002-3742 | 2 | ||
SCREW,TAPPING | 92011 | 92011-561 | 6 | ||
NUT,10MM | 92015 | 92015-3737 | 2 | ||
WASHER,8.5X19X1.2 | 92022 | 92022-3730 | 4 | ||
WASHER | 92022A | 92022-567 | 8 | ||
RIVET | 92039 | 92039-3002 | 2 | ||
RIVET | 92039A | 92039-3714 | 2 | ||
CHAIN,COVER,L=250 | 92057 | 92057-3701 | 1 | ||
TUBE,5.8X10.8X220 | 92059 | 92059-3765 | 1 | ||
BOLT-WSP-SMALL,8X16 | 155 | 155R0816 | 8 | ||
BOLT-WP,6X22 | 156 | 156R0622 | 4 | ||
SCREW-PAN-WS-CROS,6X20 | 223 | 223R0620 | 8 | ||
NUT-HEX-FINE,10MM | 314 | 314R1000 | 2 | ||
NUT-HEX-SMALL | 318 | 318R0800 | 2 | ||
RIVET-FLAT | 532 | 532R0508 | 2 | ||
PLUG | 92066 | 92066-3706 | 1 | ||
GROMMET | 92071 | 92071-3733 | 1 | ||
GROMMET | 92071A | 92071-3736 | 1 | ||
BAND,TANDEM | 92072 | 92072-3711 | 1 | ||
BAND,L=318 | 92072A | 92072-3723 | 2 | ||
DAMPER | 92075 | 92075-3719 | 1 | ||
DAMPER | 92075A | 92075-3760 | 2 | ||
SEAL,OSR70X82X7.5 | 92093 | 92093-3704 | 1 |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,DECK,LH | |
REF # | 11044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,DECK,RH | |
REF # | 11044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,BUMPER,LH | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,BUMPER,RH | |
REF # | 11045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11045B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,BUMPER,CNT | |
REF # | 11046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13169 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,TANK CAP,JET WHITE | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOOK | |
REF # | 27012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOOK | |
REF # | 27012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOOK | |
REF # | 27012B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,TANK CAP COVER | |
REF # | 27016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,DECK,LH | |
REF # | 32033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,DECK,RH | |
REF # | 32033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,FIRE EXT. | |
REF # | 32099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32102 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUMPER-FRONT | |
REF # | 39027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM-SEAL,DECK | |
REF # | 39145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM-SEAL | |
REF # | 39145A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT | |
REF # | 59071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT | |
REF # | 59071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DECK,LH,JET WHITE | |
REF # | 59351 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DECK,RH,JET WHITE | |
REF # | 59351A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HULL-COMP,JET WHITE | |
REF # | 59426 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-JET PUMP | |
REF # | 59446 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10MM | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X30 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING | |
REF # | 92011 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,8.5X19X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,COVER,L=250 | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.8X10.8X220 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-WSP-SMALL,8X16 | |
REF # | 155 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT-WP,6X22 | |
REF # | 156 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS,6X20 | |
REF # | 223 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT-HEX-FINE,10MM | |
REF # | 314 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX-SMALL | |
REF # | 318 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RIVET-FLAT | |
REF # | 532 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,TANDEM | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=318 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,OSR70X82X7.5 | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
