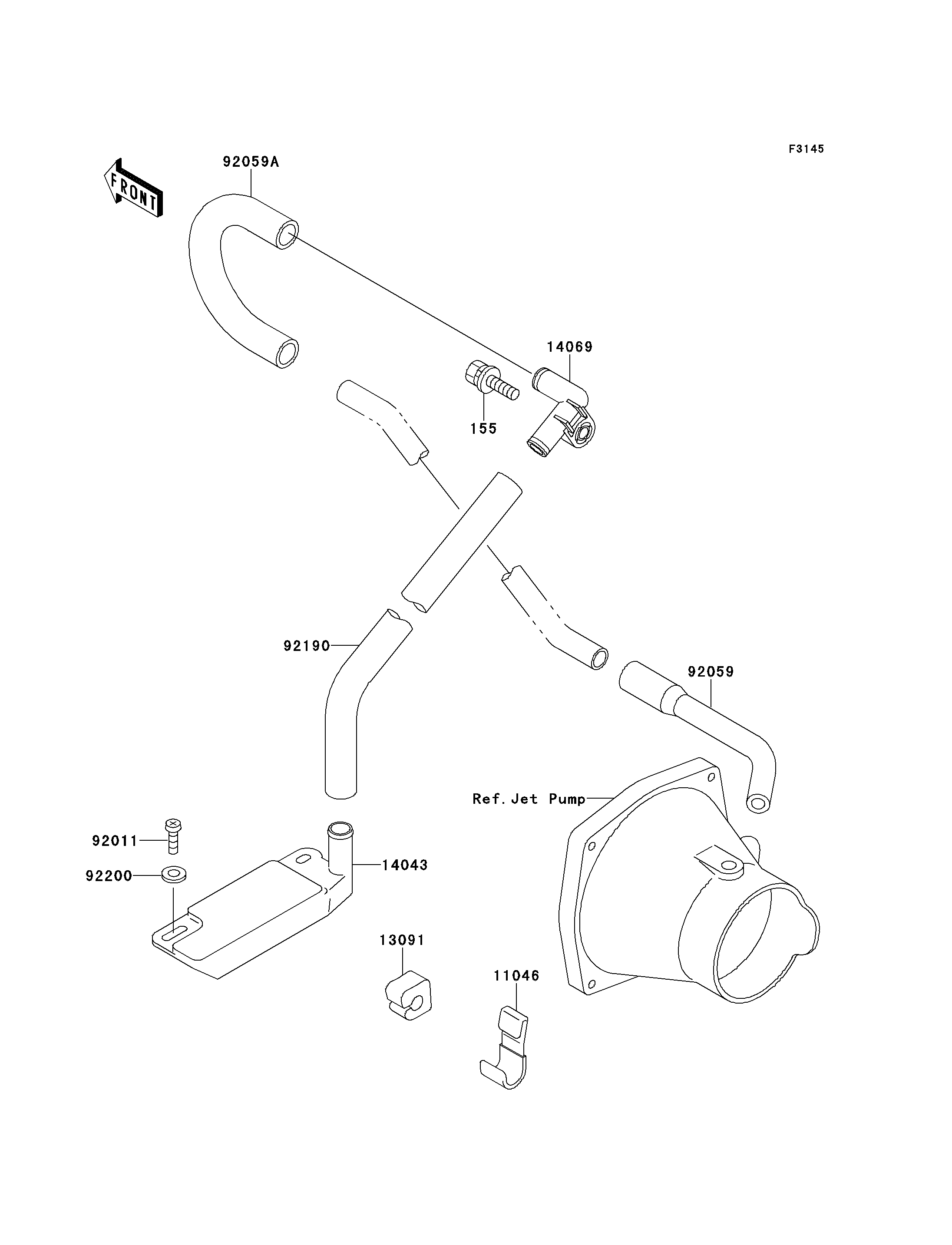

155
13091
14043
14069
92011
92059
92059A
92190
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WSP-SMALL,8X25 155 155R0825 1
HOLDER 13091 13091-3712 3
FILTER 14043 14043-3707 1
BREATHER,BILGE 14069 14069-3705 1
SCREW,TAPPING 92011 92011-561 2
TUBE,L=200 92059 92059-3894 1
TUBE,15.5X21.5X380 92059A 92059-3895 1
TUBE,15.5X21.5X260 92190 92190-3720 1
WASHER,5.9X16X1.5 92200 92200-3714 2
