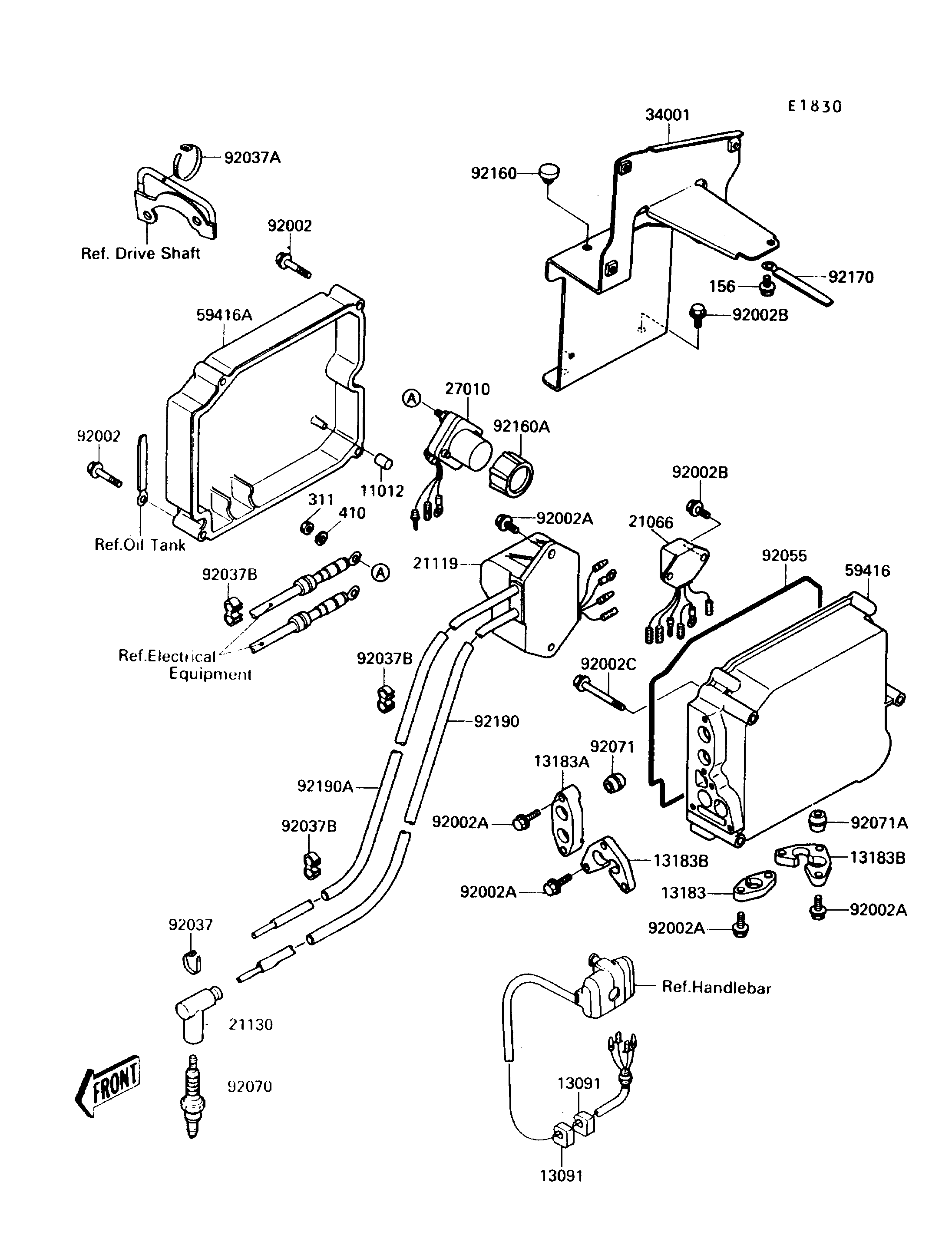

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-3734 | 1 | ||
HOLDER | 13091 | 13091-3712 | 2 | ||
PLATE | 13183 | 13183-3712 | 1 | ||
PLATE | 13183A | 13183-3730 | 1 | ||
PLATE | 13183B | 13183-3737 | 2 | ||
REGULATOR-VOLTAGE | 21066 | 21066-3708 | 1 | ||
IGNITER | 21119 | 21119-3718 | 1 | ||
CAP-SPARK PLUG | 21130 | 21130-1062 | 2 | ||
SWITCH,STARTER RELAY | 27010 | 27010-3714 | 1 | ||
STAND | 34001 | 34001-3702 | 1 | ||
CASE-ELECTRIC | 59416 | 59416-3718 | 1 | ||
CASE-ELECTRIC | 59416A | 59416-3719 | 1 | ||
BOLT,6X35 | 92002 | 92002-3715 | 4 | ||
BOLT,6X20 | 92002A | 92002-3755 | 12 | ||
BOLT,6X12 | 92002B | 92002-3763 | 4 | ||
BOLT,6X55 | 92002C | 92002-3772 | 3 | ||
CLAMP | 92037 | 92037-1173 | 2 | ||
CLAMP,L=200 | 92037A | 92037-1576 | 2 | ||
CLAMP,HOSE | 92037B | 92037-1603 | 3 | ||
RING-O,ELECTRIC CASE | 92055 | 92055-3715 | 1 | ||
PLUG-SPARK,BR7ES(NGK) | 92070 | 92070-3701 | 2 | ||
GROMMET | 92071 | 92071-3756 | 2 | ||
GROMMET,ELECTRIC CASE | 92071A | 92071-3765 | 1 | ||
DAMPER | 92160 | 92075-1983 | 2 | ||
DAMPER | 92160A | 92160-3729 | 1 | ||
CLAMP | 92170 | 92170-3705 | 1 | ||
TUBE,HIGH TENSION,L=330 | 92190 | 92190-3707 | 1 | ||
TUBE,HIGH TENSION,L=210 | 92190A | 92190-3708 | 1 | ||
BOLT-WP,6X12 | 156 | 156R0612 | 1 | ||
NUT-HEX,6MM | 311 | 311R0600 | 2 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 2 |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13183A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13183B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
REGULATOR-VOLTAGE | |
REF # | 21066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IGNITER | |
REF # | 21119 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-SPARK PLUG | |
REF # | 21130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SWITCH,STARTER RELAY | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAND | |
REF # | 34001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-ELECTRIC | |
REF # | 59416 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-ELECTRIC | |
REF # | 59416A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X35 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X55 | |
REF # | 92002C |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,L=200 | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,HOSE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
RING-O,ELECTRIC CASE | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG-SPARK,BR7ES(NGK) | |
REF # | 92070 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET,ELECTRIC CASE | |
REF # | 92071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,HIGH TENSION,L=330 | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,HIGH TENSION,L=210 | |
REF # | 92190A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-WP,6X12 | |
REF # | 156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX,6MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,6MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
