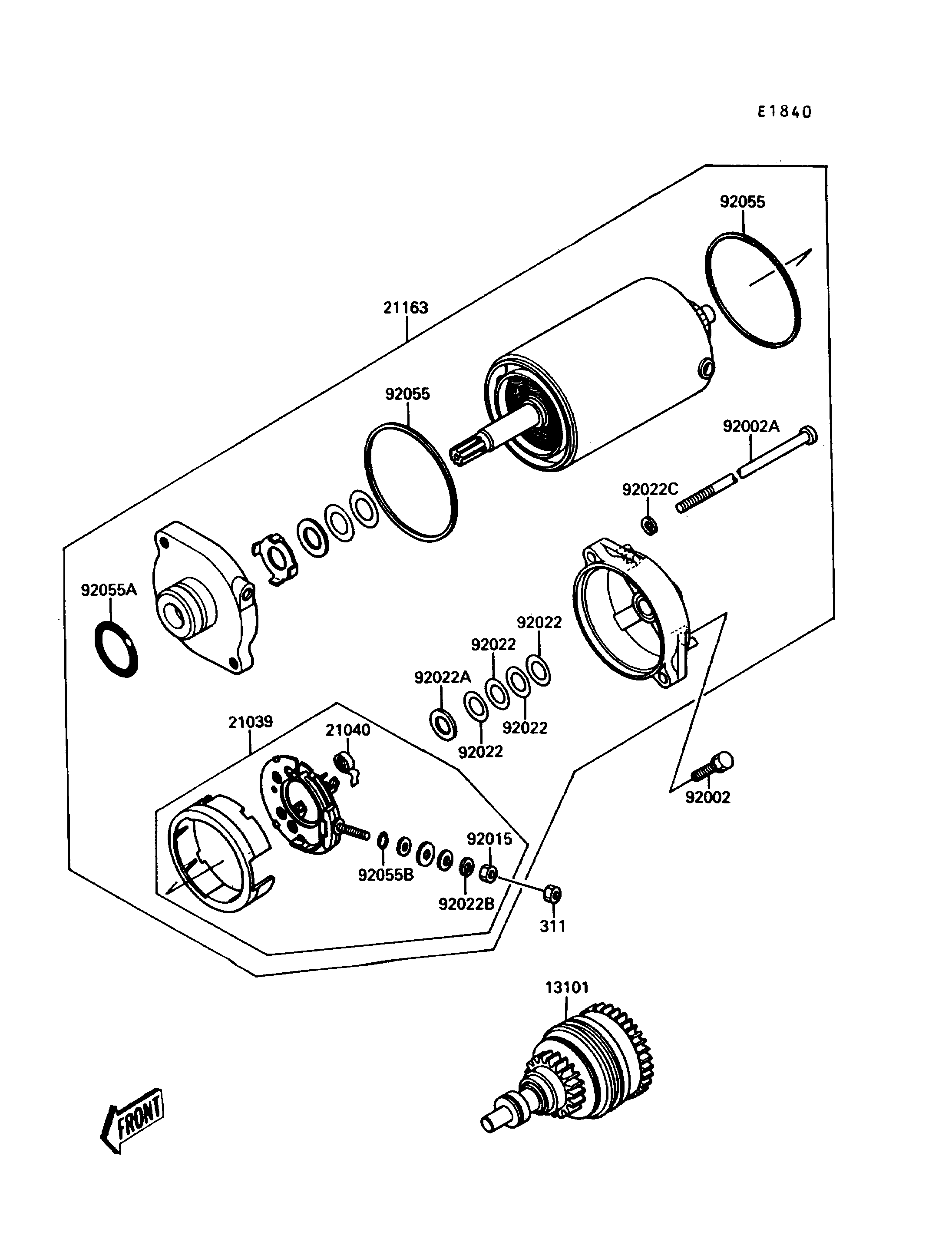

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-ASSY 13101 13101-3701 1
BRUSH,CARBON 21039 21039-3702 1
SPRING-BRUSH 21040 21040-1003 4
STARTER-ELECTRIC 21163 21163-3702 1
BOLT,6X25 92002 92002-3714 2
BOLT 92002A 92002-3744 2
NUT,6MM 92015 92015-3710 2
WASHER,9.1X18X0.2 92022 21025-011 4
WASHER,9.1X18X0.8 92022A 92022-1132 2
WASHER,6MM 92022B 92022-3711 1
WASHER,SPRING,5MM 92022C 92022-3712 2
RING-O,64MM 92055 92055-1086 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
NUT-HEX,6MM 311 311R0600 1
