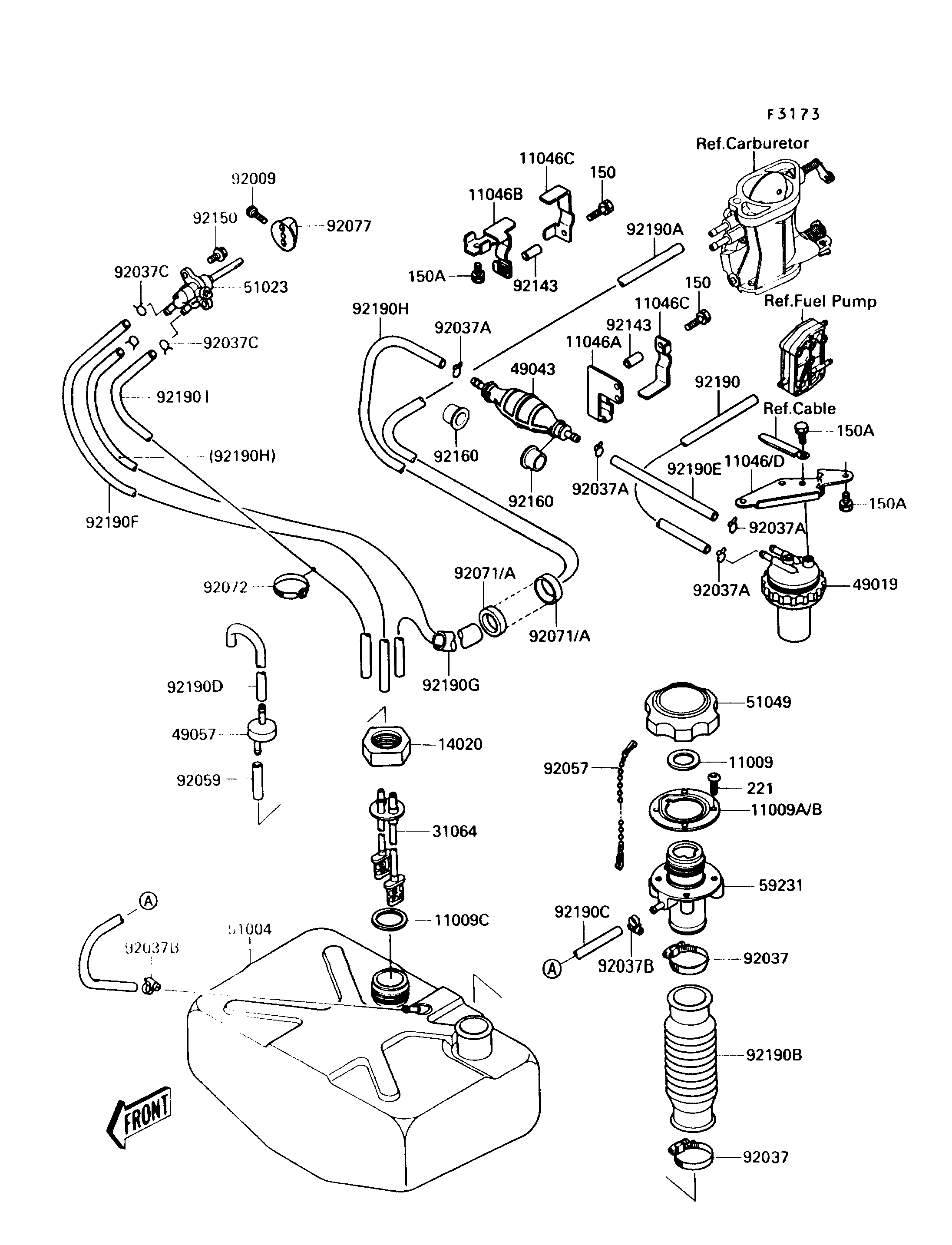

1989 TS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET,FILLER 11009A 11009-3754 1
GASKET 11009C 92065-504 1
BRACKET,FUEL FILTER 11046 11046-3789 1
BRACKET,PUMP PRIMING 11046A 11046-3806 1
BRACKET,PUMP PRIMING 11046B 11046-3811 1
BRACKET,PUMP PRIMING 11046C 11046-3813 2
RETAINER 14020 23072-501 1
PIPE-COMP,FUEL TANK 31064 31064-3711 1
FILTER-FUEL 49019 49019-3708 1
PUMP-PRIMING 49043 49043-3702 1
VALVE-RELIEF 49057 49057-3001 1
TANK-FUEL 51004 51004-3709 1
TAP-ASSY,FUEL 51023 51023-3709 1
CAP-TANK,FUEL 51049 51049-3714 1
FILLER 59231 59231-3708 1
SCREW,4X8 92009 92009-3729 1
CLAMP 92037 92037-3009 2
CLAMP,11MM 92037A 92037-3723 4
CLAMP 92037B 92037-3726 2
CLAMP 92037C 92037-3727 3
CHAIN,COVER,L=100 92057 92057-3704 1
TUBE,5.8X12.2X55 92059 92059-3026 1
GROMMET 92071 92071-3762 2
BAND,L=123 92072 92072-030 1
KNOB 92077 92077-3709 1
COLLAR,6X8.5X13 92143 92143-3715 2
BOLT,5X14 92150 92150-3702 2
TUBE,5.8X10.8X270 92190 92059-3858 1
TUBE,5.8X10.8X1040 92190A 92059-3861 1
TUBE 92190B 92059-3869 1
TUBE,5.8X10.8X440 92190C 92059-3882 1
TUBE,RELIEF VALVE 92190D 92059-3883 1
TUBE,5.8X10.8X152 92190E 92059-3885 1
TUBE,5.8X10.8X380 92190F 92059-3886 1
TUBE,22X24X250 92190G 92190-3710 1
TUBE,5.8X10.8X1130 92190H 92190-3715 1
TUBE,5.8X10.8X370 92190I 92190-3716 1
BOLT-WS,5X25 150 150R0525 2
BOLT-WS,6X12 150A 150R0612 5
SCREW-CSK-CROS,5X20 221 221R0520 4
