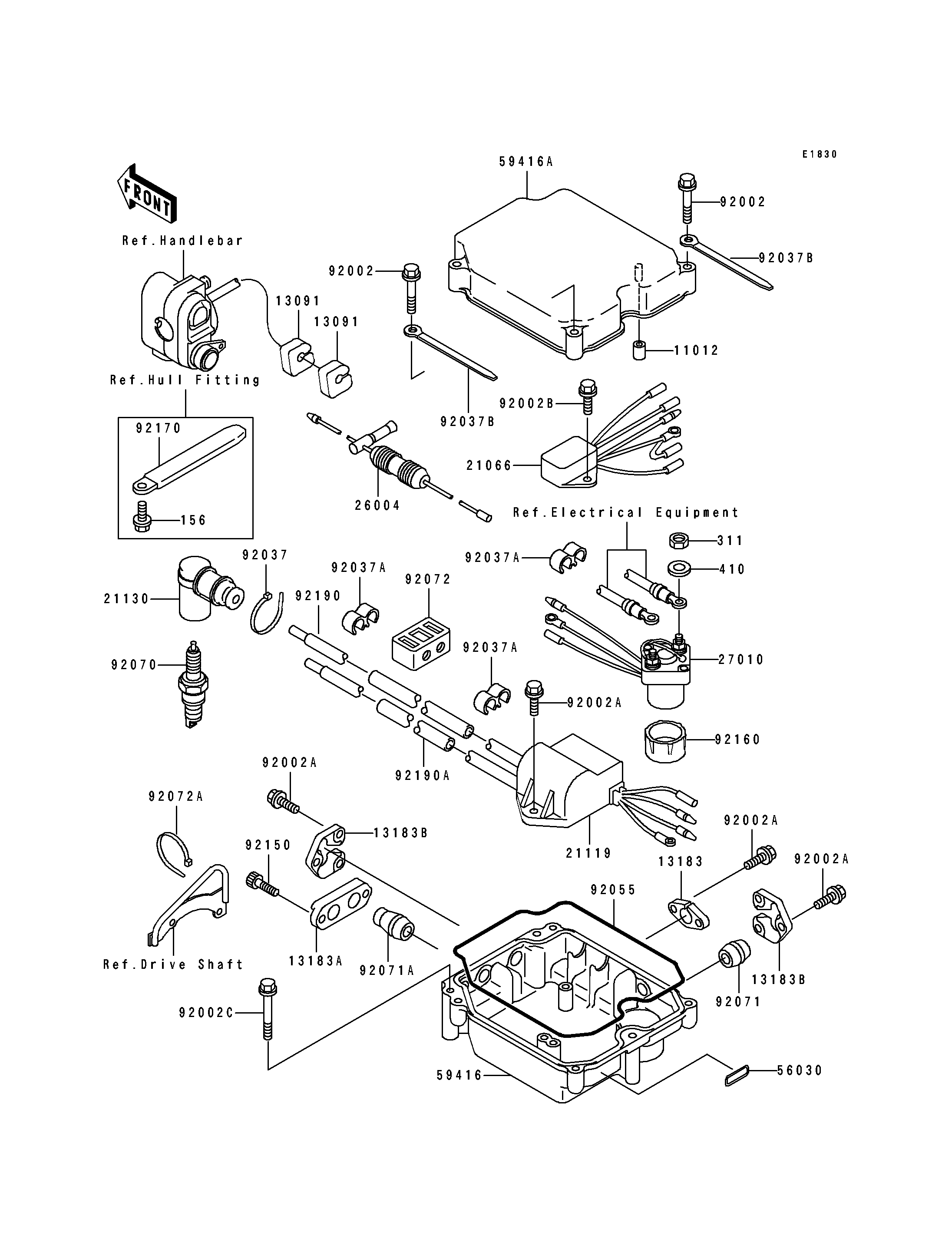

1991 TS - Ignition System(JF650-B3/B4/B5/B6)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3734 1
HOLDER 13091 13091-3712 2
PLATE 13183 13183-3712 1
PLATE,ELECTRIC BASE 13183A 13183-3767 1
PLATE,ELECTRIC CASE 13183B 13183-3768 2
REGULATOR-VOLTAGE 21066 21066-3708 1
IGNITER 21119 21119-3721 1
CAP-SPARK PLUG 21130 21130-3706 2
FUSE-ASSY 26004 26004-3711 1
SWITCH,STARTER RELAY 27010 27010-3714 1
LABEL,FUSE 56030 56030-3792 1
CASE-ELECTRIC 59416 59416-3723 1
CASE-ELECTRIC 59416A 59416-3724 1
BOLT,6X35 92002 92002-3715 4
BOLT,6X20 92002A 92002-3755 10
BOLT,6X12 92002B 92002-3763 2
BOLT,6X55 92002C 92002-3772 3
CLAMP 92037 92037-1173 2
CLAMP,HOSE 92037A 92037-1603 3
CLAMP,L=100 92037B 92037-3736 2
RING-O,ELECTRIC CASE 92055 92055-3715 1
PLUG-SPARK,BR7ES(NGK) 92070 92070-3701 2
GROMMET,ELECTRIC CASE 92071 92071-3765 1
GROMMET,HIGH TENSION CODE 92071A 92071-3778 2
BAND 92072 92072-3754 1
BAND 92072A 92072-3778 2
BOLT,SOCKET,6X18 92150 92150-3775 2
DAMPER 92160 92160-3729 1
CLAMP 92170 92170-3705 1
TUBE,HIGH TENSION,L=330 92190 92190-3707 1
TUBE,HIGH TENSION,L=210 92190A 92190-3708 1
BOLT-WP,6X12 156 156R0612 1
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 2
