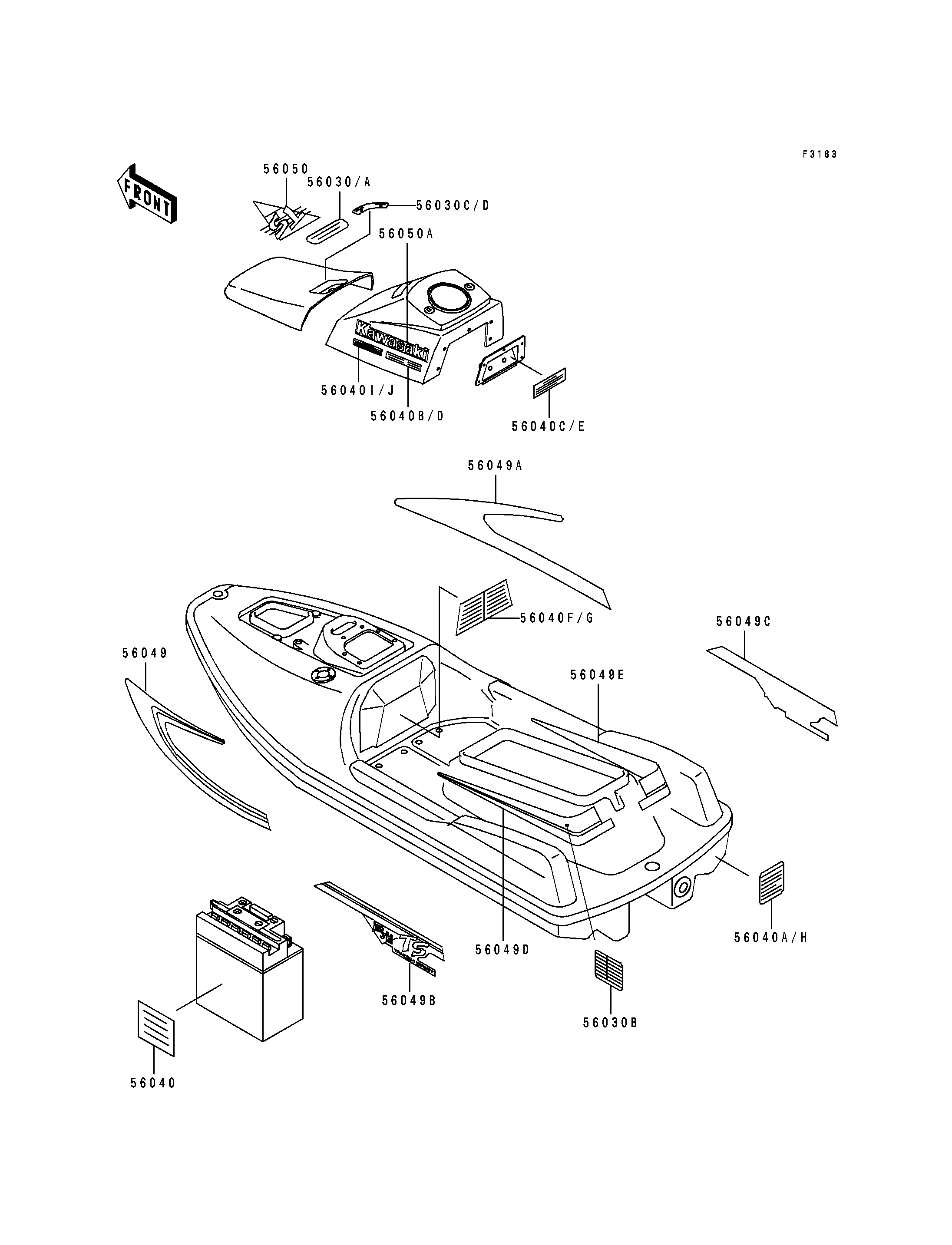

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,FIRE EXTINGUISHER | 56030 | 56030-3755 | 1 | ||
| LABEL,FIRE EXTINGUISHER(FRENCH | 56030A | 56030-3757 | 1 | CN | |
| LABEL,ENGLISH/FRENCH(FRENCH) | 56030B | 56030-3758 | 1 | CN | |
| LABEL,BATTERY CAUTION(FRENCH) | 56040 | 56040-1106 | 1 | CN | |
| LABEL-WARNING,JET PUMP | 56040A | 56040-3798 | 1 | ||
| LABEL-WARNING,OIL-FUEL MIXTURE | 56040B | 56040-3800 | 1 | ||
| LABEL-WARNING,TETHER SWITCH | 56040C | 56040-3804 | 1 | ||
| LABEL,OIL-FUEL MIXTURE(FRENCH) | 56040D | 56040-3808 | 1 | CN | |
| LABEL,TETHER SWITCH(FRENCH) | 56040E | 56040-3810 | 1 | CN | |
| LABEL-WARNING,IMPORTANT SAFETY | 56040F | 56040-3872 | 1 | ||
| LABEL,IMPORTANT SAFETY(FRENCH) | 56040G | 56040-3873 | 1 | CN | |
| LABEL,NOZZLE CHECK(FRENCH) | 56040H | 56040-3876 | 1 | CN | |
| LABEL-WARNING,FUEL SUPPLY | 56040I | 56040-3902 | 1 | ||
| LABEL,FUEL SUPPLY(FRENCH) | 56040J | 56040-3904 | 1 | CN | |
| PATTERN,FRONT DECK,LH | 56049 | 56049-1709 | 1 | ||
| PATTERN,FRONT DECK,RH | 56049A | 56049-1710 | 1 | ||
| PATTERN,REAR DECK,LH | 56049B | 56049-1711 | 1 | ||
| PATTERN,REAR DECK,RH | 56049C | 56049-1712 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56049D | 56049-1713 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56049E | 56049-1714 | 1 | ||
| MARK,HATCH COVER,TS | 56050 | 56050-1568 | 1 | ||
| MARK,HANDLE TOWER COVER | 56050A | 56050-1569 | 2 |
