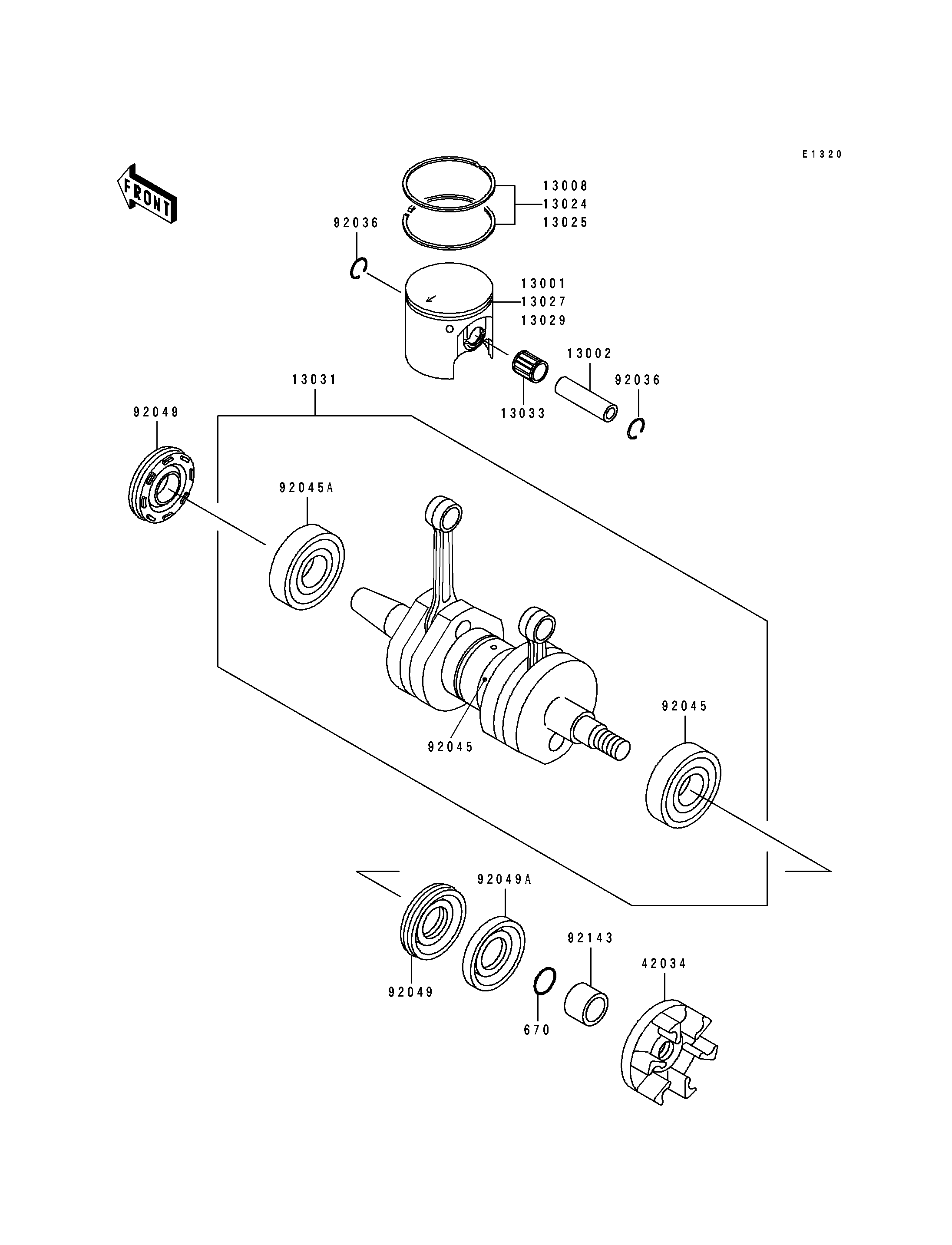

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE 13001 13001-3714 2
PIN-PISTON 13002 13002-017 2
RING-SET-PISTON,STD 13008 13008-3701 2
RING-SET-PISTON LL,O/S,1.00 13024 13024-3701 2
RING-SET-PISTON L,O/S,0.50 13025 13025-3701 2
PISTON-ENGINE LL,O/S 1.00 13027 13027-3709 2
PISTON-ENGINE L,O/S 0.50 13029 13029-3709 2
CRANKSHAFT-COMP 13031 13031-3723 1
BEARING-NEEDLE,KBK18X22X23.8X 13033 13033-1010 2
COUPLING 42034 42034-3707 1
RING-SNAP,PISTON PIN 92036 92036-015 4
BEARING-BALL,6303C4 92045 92045-3709 2
BEARING-BALL 92045A 92045-3714 1
SEAL-OIL,FWJ15307210 92049 92049-3705 2
SEAL-OIL,S30726 92049A 92049-3706 1
COLLAR 92143 92143-3758 1
O RING,16MM 670 670B2016 1
