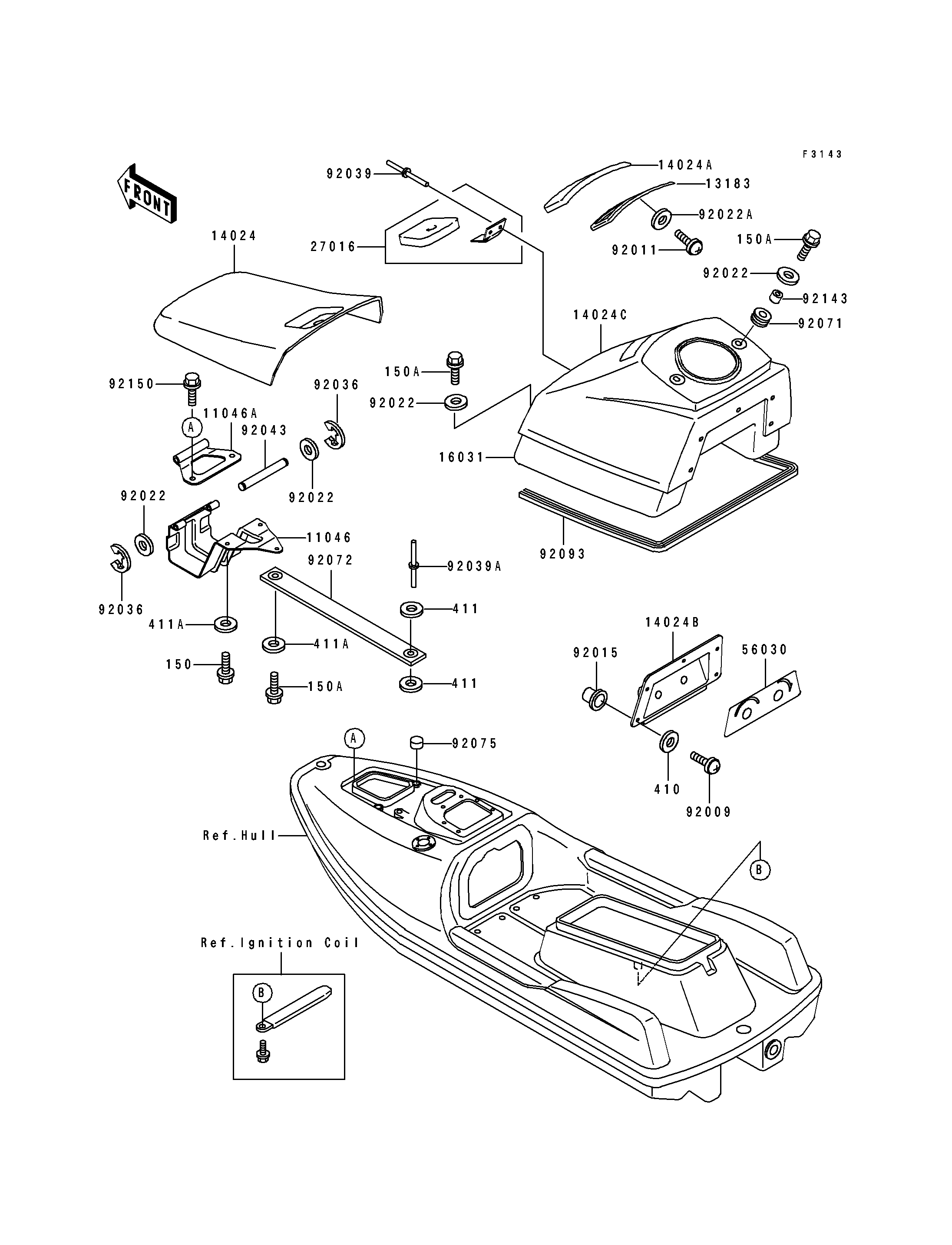

1996 TS - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HATCH COVER 11046 11046-3838 1
BRACKET,DECK 11046A 11046-3839 1
PLATE,INLET COVER 13183 13183-3743 1
COVER,HATCH,J.S.VIOLET 14024 14024-3754-23 1
COVER,INLET,J.S.VIOLET 14024A 14024-3756-23 1
COVER,CHOKE,J.S.VIOLET 14024B 14024-3757-23 1
COVER,HANDLE TOWER,J.S.VIOLET 14024C 14024-3758-23 1
FLOAT 16031 16031-3775 1
LOCK-ASSY,HATCH 27016 27016-3725 1
LABEL,FUEL/CHOKE 56030 56030-3799 1
SCREW,5X20 92009 92009-3749 5
SCREW 92011 92011-562 6
NUT,5MM 92015 92015-3784 5
WASHER,6.5X20X1.5 92022 92022-3710 6
WASHER 92022A 92022-563 6
RING-SNAP 92036 92036-518 2
RIVET,4MM 92039 92039-3703 3
RIVET 92039A 92039-3741 1
PIN,6X110 92043 92043-3726 1
GROMMET 92071 92071-3763 2
BAND 92072 92072-3742 1
DAMPER 92075 92075-3760 2
SEAL 92093 92093-3722 1
COLLAR,6.2X8X7 92143 92143-3720 2
BOLT,6X20 92150 92150-3758 2
BOLT-WS,6X18 150 150R0618 2
BOLT-WS,6X22 150A 150R0622 5
W-PLAIN-S,5MM 410 410S0500 5
WASHER-PLAIN,5MM 411 411S0500 2
WASHER-PLAIN,6MM 411A 411S0600 3
