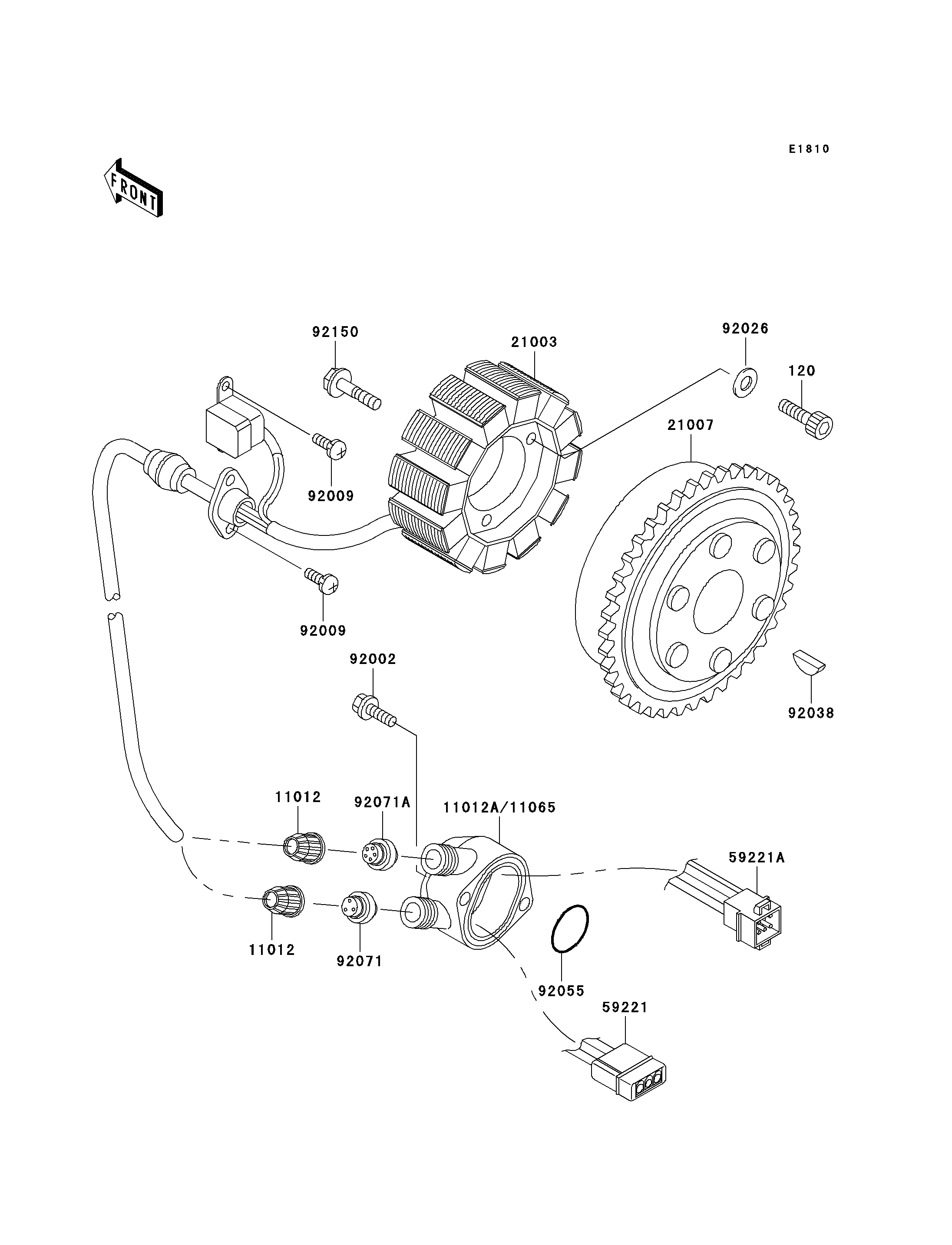

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
120
11012
11012
11065
21003
21007
59221
59221A
92002
92009
92009
92026
92038
92055
92071
92071A
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X30 | 120 | 120P0630 | 3 | ||
| CAP | 11012 | 11012-3005 | 2 | ||
| CAP,ELECTRIC CASE | 11065 | 11065-3713 | 1 | ||
| STATOR | 21003 | 21003-3730 | 1 | ||
| ROTOR,MAGNETO | 21007 | 21007-3722 | 1 | ||
| CONNECTOR-CORD | 59221 | 59221-3703 | 1 | ||
| CONNECTOR-CORD | 59221A | 59221-506 | 1 | ||
| BOLT,6X35 | 92002 | 92002-3715 | 2 | ||
| SCREW,5X12 | 92009 | 92009-1296 | 4 | ||
| SPACER,6.3X12X1.0 | 92026 | 92026-094 | 3 | ||
| KEY,WOODRUFF | 92038 | 92038-001 | 1 | ||
| RING-O | 92055 | 92055-3706 | 1 | ||
| GROMMET | 92071 | 92071-3784 | 1 | ||
| GROMMET | 92071A | 92071-3804 | 1 | ||
| BOLT | 92150 | 92150-3843 | 1 |
| BOLT-SOCKET,6X30 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,ELECTRIC CASE | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STATOR | |
| REF # | 21003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,MAGNETO | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTOR-CORD | |
| REF # | 59221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTOR-CORD | |
| REF # | 59221A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X35 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPACER,6.3X12X1.0 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| KEY,WOODRUFF | |
| REF # | 92038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
