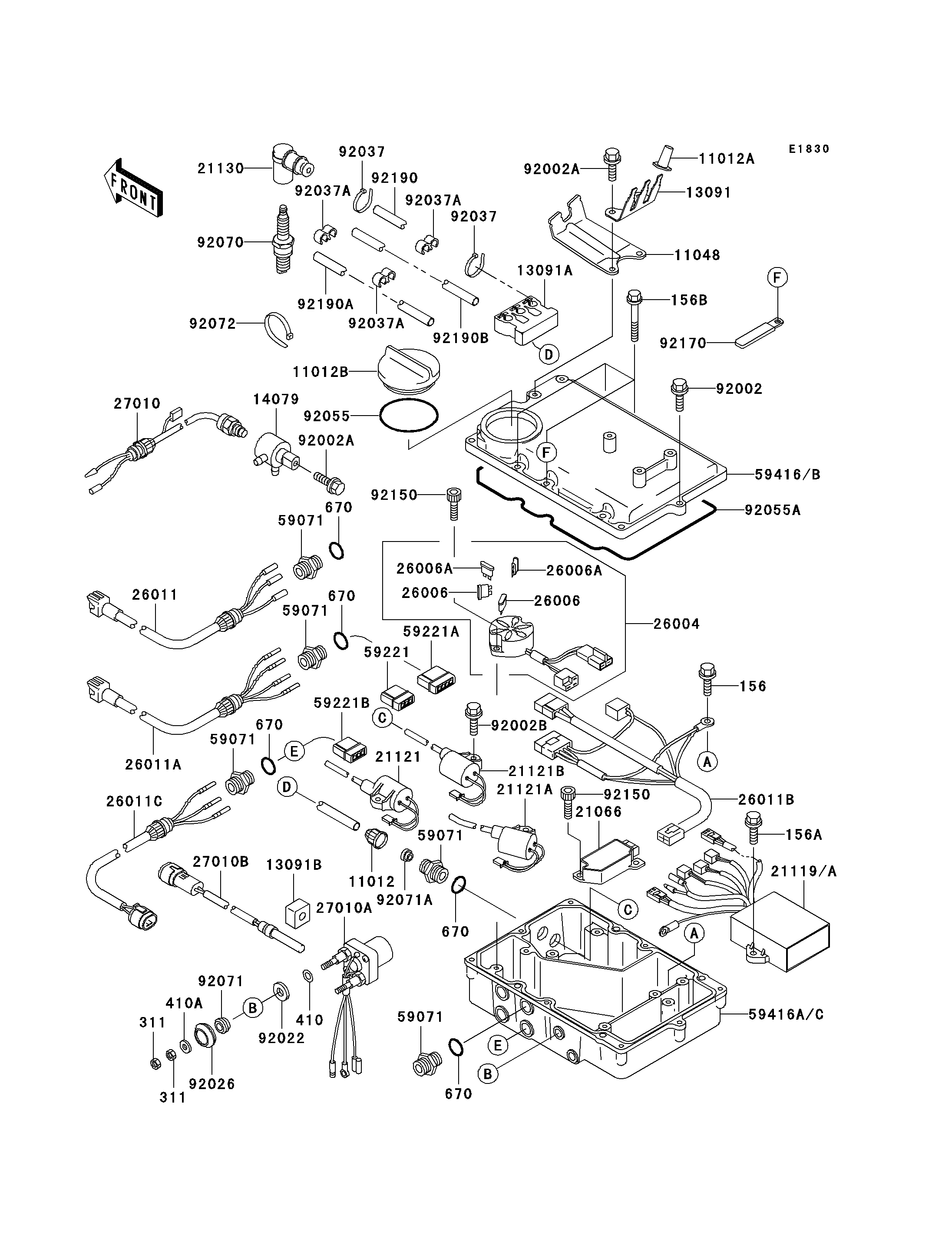

Parts Diagrams |
11012
11012
11012A
11012A
11012B
11012B
11048
11048
13091
13091
13091A
13091A
13091B
13091B
14079
14079
21066
21066
21119A
21119A
21121
21121
21121A
21121A
21121B
21121B
21130
21130
26004
26004
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
27010
27010
27010A
27010A
27010B
27010B
59071
59071
59071
59071
59071
59071
59071
59071
59071
59071
59221
59221
59221A
59221A
59221B
59221B
59416B
59416B
59416C
59416C
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92022
92022
92026
92026
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
156
156
156A
156A
156B
156B
311
311
311
311
410
410
410A
410A
670
670
670
670
670
670
670
670
670
670
92055
92055
92055A
92055A
92070
92070
92071
92071
92071A
92071A
92072
92072
92150
92150
92150
92150
92170
92170
92190
92190
92190A
92190A
92190B
92190B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-3005 | 3 | ||
| CAP,HOLDER | 11012A | 11012-3768 | 3 | ||
| CAP | 11012B | 11012-3791 | 1 | ||
| BRACKET | 11048 | 11048-3770 | 1 | ||
| HOLDER | 13091 | 13091-3784 | 1 | ||
| HOLDER | 13091A | 13091-3785 | 1 | ||
| HOLDER | 13091B | 13091-3804 | 1 | ||
| HOLDER-ASSY | 14079 | 14079-3710 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-3712 | 1 | ||
| IGNITER | 21119A | 21119-3751 | 1 | ||
| COIL-IGNITION,#1 | 21121 | 21121-3708 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-3709 | 1 | ||
| COIL-IGNITION,#3 | 21121B | 21121-3710 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-3706 | 3 | ||
| FUSE-ASSY | 26004 | 26004-3716 | 1 | ||
| FUSE,30A-G | 26006 | 26006-1006 | 2 | ||
| FUSE,10A-R | 26006A | 26006-1007 | 2 | ||
| WIRE-LEAD,STOP SWITCH | 26011 | 26011-3817 | 1 | ||
| WIRE-LEAD,MAIN STARTER SWITCH | 26011A | 26011-3818 | 1 | ||
| WIRE-LEAD,REGULATOR | 26011B | 26011-3819 | 1 | ||
| WIRE-LEAD | 26011C | 26011-3837 | 1 | ||
| SWITCH | 27010 | 27010-3736 | 1 | ||
| SWITCH,STARTER | 27010A | 27010-3737 | 1 | ||
| SWITCH | 27010B | 27010-3744 | 1 | ||
| JOINT | 59071 | 59071-3001 | 7 | ||
| CONNECTOR-CORD | 59221 | 59221-3704 | 1 | ||
| CONNECTOR-CORD | 59221A | 59221-3705 | 1 | ||
| CONNECTOR-CORD | 59221B | 59221-3708 | 1 | ||
| CASE-ELECTRIC,UPP | 59416B | 59416-3755 | 1 | ||
| CASE-ELECTRIC,LWR | 59416C | 59416-3756 | 1 | ||
| BOLT,6X25 | 92002 | 92002-3714 | 8 | ||
| BOLT,6X16 | 92002A | 92002-3728 | 3 | ||
| BOLT,6X20 | 92002B | 92002-3755 | 3 | ||
| WASHER | 92022 | 92022-3035 | 2 | ||
| SPACER | 92026 | 92026-3703 | 2 | ||
| CLAMP | 92037 | 92037-1173 | 6 | ||
| CLAMP,HOSE | 92037A | 92037-1603 | 3 | ||
| BOLT-WP,6X14 | 156 | 156R0614 | 1 | ||
| BOLT-WP,6X20 | 156A | 156R0620 | 2 | ||
| BOLT-WP | 156B | 156R0690 | 4 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
| WASHER-PLAIN-SMALL,10MM | 410 | 410B1000 | 2 | ||
| WASHER-PLAIN-SMALL,6MM | 410A | 410S0600 | 2 | ||
| O RING,16MM | 670 | 670B2016 | 7 | ||
| RING-O | 92055 | 92055-1292 | 1 | ||
| RING-O,ELECTRIC | 92055A | 92055-3738 | 1 | ||
| PLUG-SPARK,BR9ES(NGK),SOLID | 92070 | 92070-1157 | 3 | ||
| GROMMET | 92071 | 92071-3004 | 2 | ||
| GROMMET | 92071A | 92071-527 | 3 | ||
| BAND | 92072 | 92072-3778 | 2 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-3775 | 4 | ||
| CLAMP | 92170 | 92170-3705 | 1 | ||
| TUBE,HIGH TENSION,L=330 | 92190 | 92190-3707 | 1 | ||
| TUBE,8X10X565 | 92190A | 92190-3942 | 1 | ||
| TUBE,8X10X425 | 92190B | 92190-3943 | 1 |
